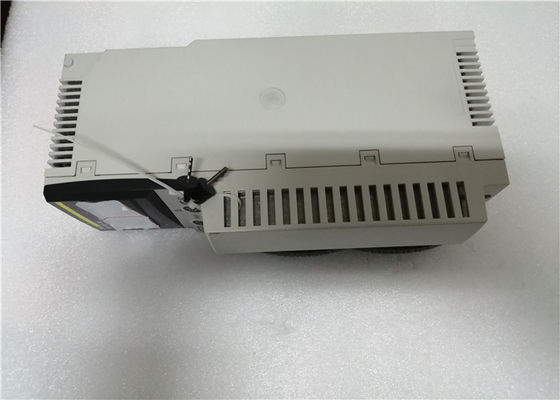

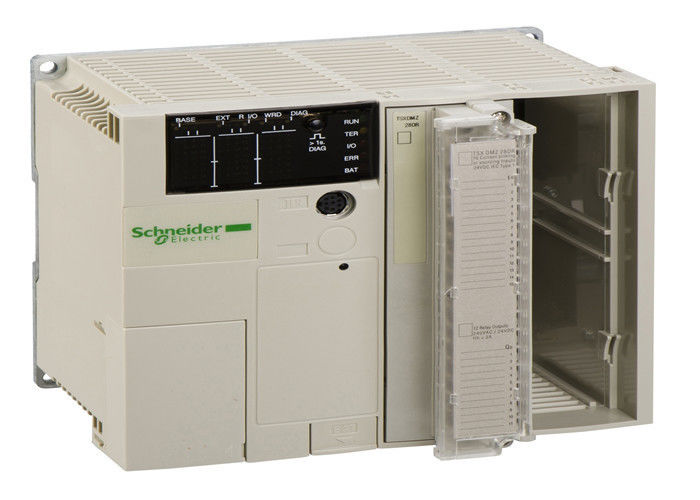

Name: Schneider Electric TSX3721001 TSX Micro 37 21 22 PLC configurations
Brand: Wisdomlong Technology CO.，LTD
SKU: TSX3721001
Price: 1.00 USD
Availability: InStock

Home Products Modicon Quantum PLC

Schneider Electric TSX3721001 TSX Micro 37 21 22 PLC configurations

Product Details:

Place of Origin:	France
Brand Name:	Schneider
Certification:	CE
Model Number:	TSX3721001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD
Packaging Details:	new original box
Delivery Time:	3-5days
Payment Terms:	T/T, Union,payoneer
Supply Ability:	50 pcc/week

Contact Now

Detailed Product Description

Brand:	Schneider	Model:	TSX3721001
Type:	Modicon Quantum Automation Platform	Country Of Origin:	France
Condition:	New Original	Deliver:	3-5days
MOQ:	1 PCS	Warranty:	1 Year

Schneider Electric TSX3721001 TSX Micro 37 21 22 PLC configurations

Main
range of product	Modicon TSX Micro automation platform
product or component type	Modular base controller
primary voltage	100...240 V 90…264 V AC
input current	2 mA 60 A
immunity to microbreaks	20 ms
output current	0.5 A

Complementary
number of slots	3
integrated connection type	1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s 1 Modbus Modbus RTU 19.2 kbit/s
realtime clock	With
memory description	Flash 15 Kwords data Internal RAM 20 Kwords data Internal RAM (with PCMCIA card) 128 Kwords program and data Internal RAM 128 Kwords data storage
maximum size of object areas	128 %KWi constant words 256 %Mi 1 %MWi internal words
execution time per instruction	0.13 µs Boolean without PCMCIA card 4.5 µs arithmetic REAL floating without PCMCIA card 0.19 µs Boolean with PCMCIA card 4.5 µs arithmetic REAL floating with PCMCIA card
execution time for 1 Kinstruction	5.88 100 % Boolean without PCMCIA card 0.27 65 % Boolean and 35 % numerical without PCMCIA card 4 100 % Boolean with PCMCIA card 0.266 65 % Boolean and 35 % numerical with PCMCIA card
application structure	16 event tasks 1 master task 1 fast task
system overhead	1.6 ms for master task
protection type	Overload protection Short-circuit
total useful secondary power	16 W
electromagnetic compatibility	Electrostatic discharge conforming to IEC 1000-4-2 level 3 Electromagnetic field immunity test conforming to IEC 1000-4-3 level 3 Resistance to fast transient conforming to IEC 1000-4-4 level 3 Immunity to impulse waves conforming to IEC 1000-4-5 Damped oscillatory wave conforming to IEC 1000-4-12 Immunity to electromagnetic interference conforming to IEC 61131-2

Environment
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-25…70 °C
relative humidity	10…95 % without condensation for operation 5…95 % without condensation for operation
operating altitude	0...2000 m
width	341.4 mm
height	151 mm
depth	152 mm
net weight	1.72 kg

Offer Sustainability
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
