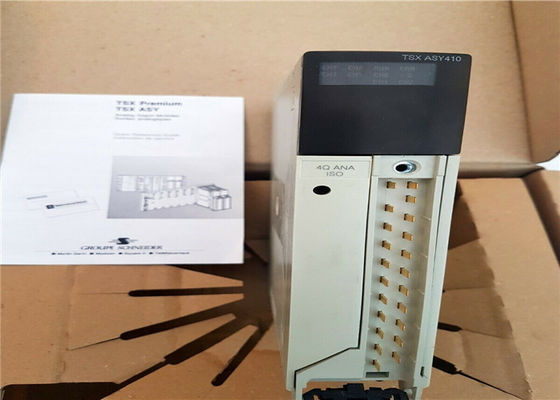

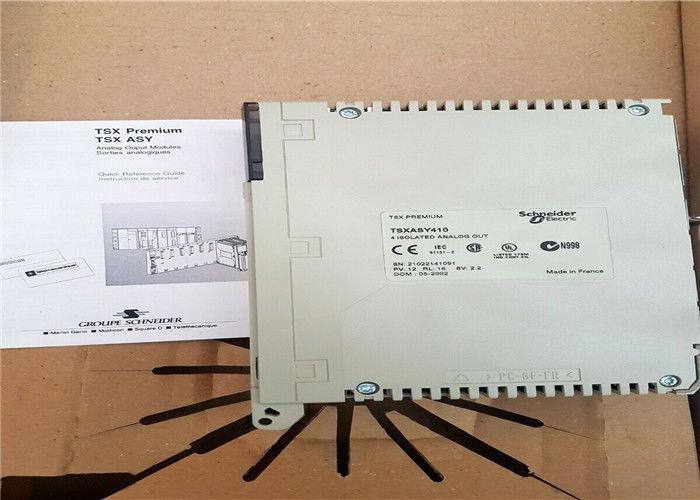

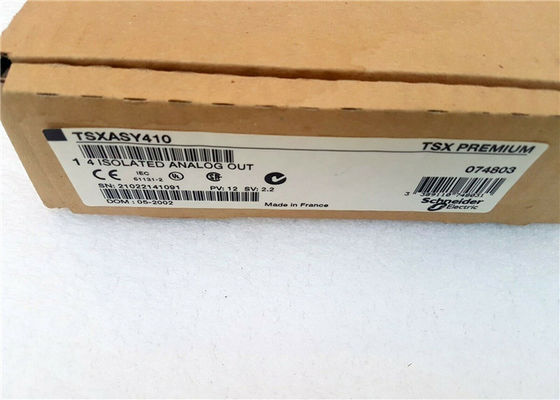

Name: Schneider Electric TSXASY410 Analog output module Modicon Premium 4 O multirange
Brand: Wisdomlong Technology CO.，LTD
SKU: TSXASY410
Price: 1.00 USD
Availability: InStock

Home Products Modicon Quantum PLC

Schneider Electric TSXASY410 Analog output module Modicon Premium 4 O multirange

Product Details:

Place of Origin:	France
Brand Name:	Schneider
Certification:	CE
Model Number:	TSXASY410

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD
Packaging Details:	new original box
Delivery Time:	3-5days
Payment Terms:	T/T, Union,payoneer
Supply Ability:	50 pcc/week

Contact Now

Detailed Product Description

Brand:	Schneider	Model:	TSXASY410
Type:	Modicon Quantum Automation Platform	Country Of Origin:	France
Condition:	New Original	Deliver:	3-5days
Conversion Time:	2.5 Ms	Warranty:	1 Year

Schneider Electric TSXASY410 Analog output module Modicon Premium 4 O multirange

Main
range of product	Modicon Premium Automation platform
product or component type	Analog output module
analogue output number	4
analogue output type	Current: 0...20 mA Current: 4...20 mA Voltage: +/- 10 V
analog/digital conversion	11 bits + sign

Complementary
conversion time	2.5 ms
measurement resolution	10.25 µA 0...20 mA 10.25 µA 4...20 mA 5.12 mV +/- 10 V
electrical connection	Screw terminal block
measurement error	0.45 % of full scale +/- 10 V 25 °C 0.52 % of full scale 0...20 mA 25 °C 0.52 % of full scale 4...20 mA 25 °C 0.75 % of full scale +/- 10 V 0...60 °C 0.98 % of full scale 0...20 mA 0...60 °C 0.98 % of full scale 4...20 mA 0...60 °C
isolation between channels	1500 Vrms
isolation between channels and bus	1500 Vrms
isolation between channels and ground	500 V
protection type	Overload protection Short-circuit protection
output voltage limits	<= 30 V
load impedance ohmic	< 600 Ohm 0...20 mA < 600 Ohm 4...20 mA > 1000 Ohm +/- 10 V
maximum load inductance	300 µH
maximum load capacitance	0.1 µF
marking	CE
current consumption	900 mA at 5 V DC
module format	Standard
terminals description PLC n°1	(14)OUT_ANA_SHIELD# (19)OUT_ANA_SHIELD# (18)OUT_ANA_CUR#3 (1)OUT_ANA_VOLT#0 (5)OUT_ANA_SHIELD# (16)OUT_ANA_VOLT#3 (15)OUT_ANA_SHIELD# (11)OUT_ANA_VOLT#2 (12)OUT_ANA_COM#2 (20)OUT_ANA_SHIELD# (6)OUT_ANA_VOLT#1 (7)OUT_ANA_COM#1 (2)OUT_ANA_COM#0 (13)OUT_ANA_CUR#2 (4)OUT_ANA_SHIELD# (8)OUT_ANA_CUR#1 (9)OUT_ANA_SHIELD# (3)OUT_ANA_CUR#0 (17)OUT_ANA_COM#3 (10)OUT_ANA_SHIELD#
net weight	0.35 kg

Environment
standards	CSA C22.2 No 213 Class I Division 2 Group B CSA C22.2 No 213 Class I Division 2 Group C CSA C22.2 No 142 92/31/EEC 89/336/EEC CSA C22.2 No 213 Class I Division 2 Group A 93/68/EEC IEC 61131-2 73/23/EEC CSA C22.2 No 213 Class I Division 2 Group D UL 508
product certifications	GL ABS RINA DNV RMRS LR BV
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-25…70 °C
relative humidity	10…95 % without condensation for operation 5…95 % without condensation for storage
operating altitude	0...2000 m
protective treatment	TC
IP degree of protection	IP20
pollution degree	2

Contractual warranty
Warranty	18 months
