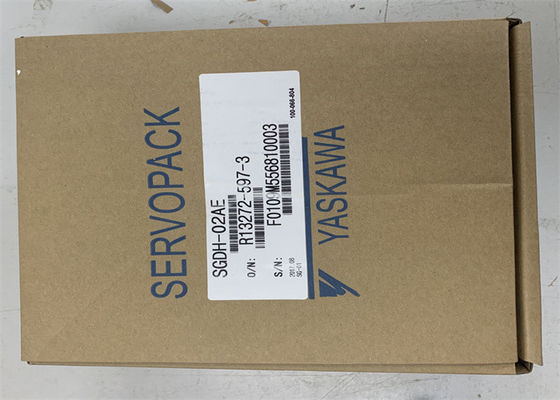

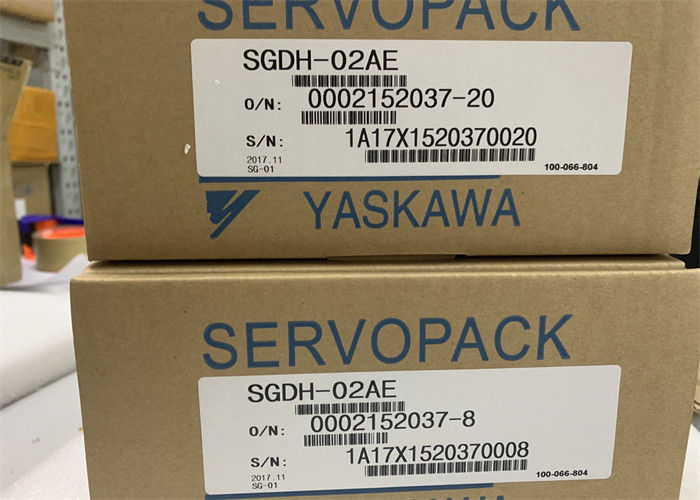

YASKAWA Electric Corporation | SGDH-02AE Servo drives Brand New orginal

YASKAWA Electric Corporation | SGDH-02AE Servo drives Brand New orginal

Description

About this Manual

 This manual provides the following information for the Σ-II Series SGMBH/SGDH Servodrives

 • Procedures for installing and wiring the servomotor and SERVOPACK.

• Procedures for trial operation of the Servodrive.

• Procedures for using functions and adjusting the servodrives.

• Procedures for using the built-in Panel Operator and the Hand-held Digital Operator.

• Ratings and specifications for standard models.

• Procedures for maintenance and inspection. „ Intended Audience This manual is intended for the following users.

• Those designing Σ-II Series servodrive systems.

• Those installing or wiring Σ-II Series servodrives.

• Those performing trial operation or adjustments of Σ-II Series servodrives.

• Those maintaining or inspecting Σ-II Series servodrives.

 Description of Technical Terms In this manual, the following terms are defined as follows:

• Servomotor = Σ-II Series SGMBH servomotor.

• SERVOPACK = Σ-II Series SGDH SERVOPACK.

• Servodrive = A set including a servomotor and Servo Amplifier.

• Servo System = A servo control system that includes the combination of a servodrive with a host computer and peripheral devices. „ Indication of Reverse Signals In this manual, the names of reverse signals (ones that are valid when low) are written with a forward slash (/) before the signal name, as shown in the following example:

• S-ON = /S-ON • P-CON = /P-CON

Visual Aids

The following aids are used to indicate certain types of information for easier reference.

Indicates important information that should be memorized, including precautions such as alarm displays to avoid damaging the devices.

Indicates supplemental information. Indicates application examples.

Indicates definitions of difficult terms or terms that have not been previously explained in this manual.

The text indicated by this icon explains the operating procedure using Hand-held type Digital Operator (Type: JUSP-OP02A-2).

Related Manuals

Refer to the following manuals as required. „ Also, keep this manual in a safe place so that it can be referred to whenever necessary

Safety Information

The following conventions are used to indicate precautions in this manual.

Failure to heed precautions provided in this manual can result in serious or possibly even fatal injury or damage to the products or to related equipment and systems.

Indicates precautions that, if not heeded, could possibly result in loss of life or serious injury. Indicates precautions that, if not heeded, could result in relatively serious or minor injury, damage to the product, or faulty operation.

Indicates actions that must never be taken.

Safety Precautions

The following precautions are for checking products upon delivery, installation, wiring, operation, maintenance and inspections.
