Place of Origin: | Japan |
Brand Name: | OMRON |
Model Number: | R88M-G05030H-S2 |
Minimum Order Quantity: | 1 |
---|---|
Price: | 1 |
Packaging Details: | New in original boxRockwell Automation |
Delivery Time: | 5-8 work daysRockwell Automation |
Payment Terms: | T/T |
Supply Ability: | 1 |
Condition: | New | Number Of Outputs: | 1 Output |
---|---|---|---|
Voltage - Rated: | 200VAC | Warranty: | 1 Year |
Encoder Resolution: | 17 Bit | Power - Rated: | 100KW |
RPM: | 3000 RPM | Series:: | R88 |

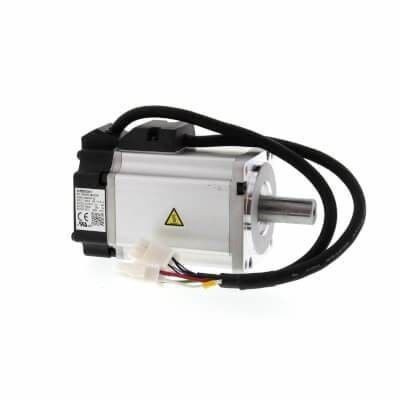

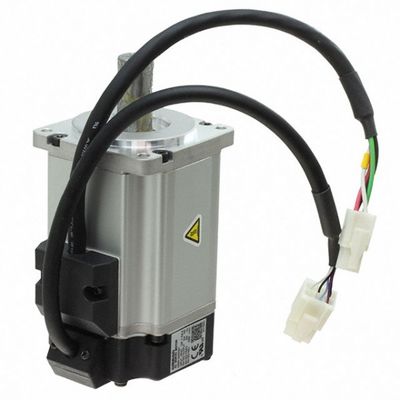

OMRON R88M-G05030H-S2 AC Motor Servomotor 3000 RPM 50W Incremental 200VAC
Product information of R88M-G05030H-S2 :
• Peak torque 300% of continuous torque during 3 seconds or more depending on model
• Servomotors supported by SmartStep2, G-Series and Accurax G5 servo drives
• Cylindrical and flat servomotors types are available
• Encoder accuracy of 10,000 step/rev as standard and 17-bit ABS encoder as optional
• IP65 as standard and shaft oil seal available
• Motors with brake as option
•Manufacturer : Omron
•Product No. : R88M-G05030H-S2
•12 month Northern Industrial Warrant
More information:
Model (R88M-) | G05030H | G10030H | G20030H | G40030H | G75030H | ||
---|---|---|---|---|---|---|---|
Item | Unit | G05030T | G10030T | G20030T | G40030T | G75030T | |
Rated output t * 1 | W | 50 | 100 | 200 | 400 | 750 | |
Rated torque * 1 | N·m | 0.16 | 0.32 | 0.64 | 1.3 | 2.4 | |
Rated rotation speed | r/min | 3000 | |||||
Max. momentary rotation speed | r/min | 5000 | 4500 | ||||
Max. momentary torque * 1 | N·m | 0.45 | 0.90 | 1.78 | 3.67 | 7.05 | |
Rated current * 1 | A (rms) | 1.1 | 1.1 | 1.6 | 2.6 | 4 | |
Max. momentary current * 1 | A (rms) | 3.4 | 3.4 | 4.9 | 7.9 | 12.1 | |
Rotor inertia | kg·m2 (GD2/4) |
2.5 × 10-6 | 5.1 × 10-6 | 1.4 × 10-5 | 2.6 × 10-5 | 8.7 × 10-5 | |
Applicable load inertia | --- | 30 times the rotor inertia max. *2 | 20 times the rotor inertia max. *2 |
||||
Torque constant * 1 | N·m/A | 0.14 | 0.19 | 0.41 | 0.51 | 0.64 | |
Power rate * 1 | kW/s | 10.4 | 20.1 | 30.3 | 62.5 | 66 | |
Mechanical time constant | ms | 1.56 | 1.1 | 0.71 | 0.52 | 0.45 | |
Electrical time constant | ms | 0.7 | 0.79 | 2.6 | 3 | 4.6 | |
Allowable radial load *3 | N | 68 | 68 | 245 | 245 | 392 | |
Allowable thrust load *3 | N | 58 | 58 | 98 | 98 | 147 | |
Weight | Without brake | kg | Approx. 0.3 | Approx. 0.5 | Approx. 0.8 | Approx. 1.2 | Approx. 2.3 |
With brake | kg | Approx. 0.5 | Approx. 0.7 | Approx. 1.3 | Approx. 1.7 | Approx. 3.1 | |
Radiation shield dimensions (material) | 100 × 80 × t10 (AI) | 130 × 120 × t12 (AI) | 170 × 160 × t12 (AI) |
||||
Applicable Servo Drives (R88D-) | GT01H | GT01H | GT02H | GT04H | GT08H | ||
Brake specifi- cations |
Brake inertia | kg·m2 (GD2/4) |
2 × 10-7 | 2 × 10-7 | 1.8 × 10-6 | 1.8 × 10-6 | 7.5 × 10-6 |
Excitation voltage *4 | V | 24 VDC ± 5% | |||||
Power consumption (at 20 °C) |
W | 7 | 7 | 9 | 9 | 10 | |
Current consumption (at 20 °C) |
A | 0.3 | 0.3 | 0.36 | 0.36 | 0.42 | |
Static friction torque | N·m | 0.29 min. | 0.29 min. | 1.27 min. | 1.27 min. | 2.45 min. | |
Attraction time *5 | ms | 35 max. | 35 max. | 50 max. | 50 max. | 70 max. | |
Release time *5 | ms | 20 max. | 20 max. | 15 max. | 15 max. | 20 max. | |
Backlash | ± 1 ° | ||||||
Allowable work per braking |
J | 39.2 | 39.2 | 137 | 137 | 196 | |
Allowable total work | J | 4.9 × 103 | 4.9 × 103 | 44.1 × 103 | 44.1 × 103 | 147 × 103 | |
Allowable angular acceleration |
rad/s2 | 30,000 max. (Speed of 2,800 r/min or more must not be changed in less than 10 ms) |
|||||
Brake life | --- | 10,000,000 operations min. | |||||
Rating | --- | Continuous | |||||
Insulation grade | --- | Type F |
Same series of R88 - :
R88D-GN04H-ML2 : G-Series servo drive, 1~ 200 VAC, MECHATROLINK II integrated, 400 W
R88M-G40030H-BS2 : G-Series/SmartStep 2 AC servo motor (cylinder type), 400 W, 200 VAC, 3000 rpm, 1.3 Nm, with brake
R88M-G40030H-BS2-D: AC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, incremental, Brake, with circular connector
R88M-G40030T-BS2: AC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, absolute, Brake
R88M-G40030T-BS2-D: AC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, absolute, Brake, with circular connector
R88M-GP40030T-BS2-D: AC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, absolute, Brake, with circular connector
