Place of Origin: | Japan |
Brand Name: | OMRON |
Model Number: | R88D-KT75H |
Minimum Order Quantity: | 1 |
---|---|
Price: | 1 |
Packaging Details: | New in original boxRockwell Automation |
Delivery Time: | 5-8 work daysRockwell Automation |
Payment Terms: | T/T |
Supply Ability: | 1 |
Condition: | New | Rated Torque: | 1.3 Nm |
---|---|---|---|
Peak Torque: | 3.65 Nm | Warranty: | 1 Year |
Encoder Resolution: | 7500W | Flange Size Square (LC): | 80 Mm |
Shaft Diameter: | 14 Mm | Drive Supply Voltage: | Servo AC |

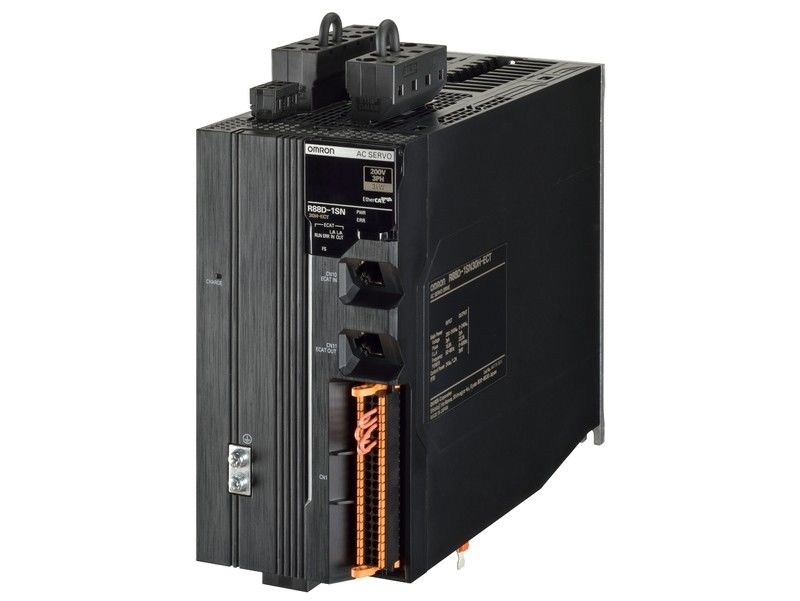

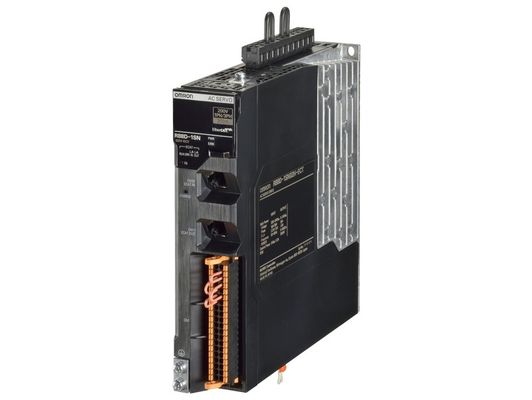

OMRON R88D-KT75H Servo AC 200 ~ 240VAC Supply 44A 240V Load 7.5 kW G5 series
Product information OMRON R88D-KT75H :
• Standard and high inertia servo motor models
• Peak torque 300% of rated torque during 3 seconds or more depending on model
• High resolution serial encoder provided by 20 bits encoder
• IP67 protection in all models
• Ultra-light and compact size motor
• Low speed ripple and low torque ripple due to low torque cogging
• Various shaft, brake and seal options
In the features:
• Industry Top-class Tracking Performance. Speed Response Frequency of 2 kHz.
• Best Positioning Accuracy*. Featuring a 20-bit high-resolution incremental encoder.
* 8 times the resolution of previous OMRON models
• High-precision Positioning. Fully Closed Loop Control Is a Standard Feature.
• Conforms to the Latest International Standards. Safety and Productivity.
• Globalization. Lineup of 400 VAC Servomotors.
The Servo drive of R88D-KT20[] and smaller capacity the one are UL-Listed.
The Servo drive of R88D-KT30[] and bigger capacity the one are UL-Recognized.
Note: 1. The above items reflect individual evaluation testing. The results may differ under compound conditions.
Note: 2. Always disconnect all connections to the Servo Drive before you perform insulation resistance tests on it. If you
perform an insulation resistance test while the Servo Drive is connected, the Servo Drive may be damaged.
Never perform dielectric strength tests on the Servo Drive. Failure to follow this precaution may result in
damaging internal elements.
Note: 3. Some Servo Drive parts will require maintenance. For details, refer to the G5 series USER'S MANUAL.
Confirm the Manual No. that is listed in Related Manuals.
Note: 4. To conform EMC directive, the tips on wiring and installation written in the G5 series user's manual must be
followed. Confirm the Manual No. that is listed in Related Manuals.
Same series of R88 - :
R88D-GN04H-ML2 : G-Series servo drive, 1~ 200 VAC, MECHATROLINK II integrated, 400 W
R88M-G40030H-BS2 : G-Series/SmartStep 2 AC servo motor (cylinder type), 400 W, 200 VAC, 3000 rpm, 1.3 Nm, with brake
R88M-G40030H-BS2-D: AC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, incremental, Brake, with circular connector
R88M-G40030T-BS2: AC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, absolute, Brake
R88M-G40030T-BS2-D: AC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, absolute, Brake, with circular connector
R88M-GP40030T-BS2-D: AC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, absolute, Brake, with circular connector
Details:
Similar Model Products:
Specifications | Model | |
---|---|---|
Power Model Supply Voltage | Applicable Servomotor Capacity | |
Single-phase 100 VAC |
50 W | R88D-KTA5L |
100 W | R88D-KT01L | |
200 W | R88D-KT02L | |
400 W | R88D-KT04L | |
Single-phase/three-phase 200 VAC |
100 W | R88D-KT01H |
200 W | R88D-KT02H | |
400 W | R88D-KT04H | |
750 W | R88D-KT08H | |
1 kW | R88D-KT10H | |
1.5 kW | R88D-KT15H | |
Three-phase 200 VAC |
2 kW | R88D-KT20H |
3 kW | R88D-KT30H | |
5 kW | R88D-KT50H | |
7.5 kW | R88D-KT75H | |
15 kW | R88D-KT150H | |
Three-phase 400 VAC |
600 W | R88D-KT06F |
1 kW | R88D-KT10F | |
1.5 kW | R88D-KT15F | |
2 kW | R88D-KT20F | |
3 kW | R88D-KT30F | |
5 kW | R88D-KT50F | |
7.5 kW | R88D-KT75F | |
15 kW | R88D-KT150F |
Motor capacity | Gear Ratio | Model (Straight shaft) |
---|---|---|
50 W | 1/5 | R88G-HPG11B05100B |
1/9 | R88G-HPG11B09050B | |
1/21 | R88G-HPG14A21100B | |
1/33 | R88G-HPG14A33050B | |
1/45 | R88G-HPG14A45050B | |
100 W | 1/5 | R88G-HPG11B05100B |
1/11 | R88G-HPG14A11100B | |
1/21 | R88G-HPG14A21100B | |
1/33 | R88G-HPG20A33100B | |
1/45 | R88G-HPG20A45100B | |
200 W | 1/5 | R88G-HPG14A05200B |
1/11 | R88G-HPG14A11200B | |
1/21 | R88G-HPG20A21200B | |
1/33 | R88G-HPG20A31400B | |
1/45 | R88G-HPG20A45200B | |
400 W | 1/5 | R88G-HPG14A05400B |
1/11 | R88G-HPG20A11400B | |
1/21 | R88G-HPG20A21400B | |
1/33 | R88G-HPG32A33400B | |
1/45 | R88G-HPG32A45400B | |
750 W (200 V) |
1/5 | R88G-HPG20A05750B |
1/11 | R88G-HPG20A11750B | |
1/21 | R88G-HPG32A21750B | |
1/33 | R88G-HPG32A33750B | |
1/45 | R88G-HPG32A45750B | |
750 W (400 V) |
1/5 | R88G-HPG32A052K0B |
1/11 | R88G-HPG32A112K0B | |
1/21 | R88G-HPG32A211K5B | |
1/33 | R88G-HPG32A33600SB | |
1/45 | R88G-HPG50A451K5B | |
1 kW | 1/5 | R88G-HPG32A052K0B |
1/11 | R88G-HPG32A112K0B | |
1/21 | R88G-HPG32A211K5B | |
1/33 | R88G-HPG50A314K0B | |
1/45 | R88G-HPG50A451K5B | |
1.5 kW | 1/5 | R88G-HPG32A052K0B |
1/11 | R88G-HPG32A112K0B | |
1/21 | R88G-HPG32A211K5B | |
1/33 | R88G-HPG50A314K0B | |
1/45 | R88G-HPG50A451K5B | |
2 kW | 1/5 | R88G-HPG32A052K0B |
1/11 | R88G-HPG32A112K0B | |
1/21 | R88G-HPG50A212K0B | |
1/33 | R88G-HPG50A314K0B | |
3 kW | 1/5 | R88G-HPG32A053K0B |
1/11 | R88G-HPG50A113K0B | |
1/21 | R88G-HPG50A213K0B | |
4 kW | 1/5 | R88G-HPG32A054K0B |
1/11 | R88G-HPG50A115K0B | |
5 kW | 1/5 | R88G-HPG50A055K0B |
1/11 | R88G-HPG50A115K0B |
