| Place of Origin: | Japan |
| Brand Name: | OMRON |
| Model Number: | R7M-A75030-S1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 1 |
| Packaging Details: | New in original boxRockwell Automation |
| Delivery Time: | 5-8 work daysRockwell Automation |
| Payment Terms: | T/T |
| Supply Ability: | 1 |
| Condition: | New | Rated Torque: | 1.3 Nm |
|---|---|---|---|
| Peak Torque: | 3.65 Nm | Warranty: | 1 Year |
| Encoder Resolution: | 7500W | Flange Size Square (LC): | 80 Mm |
| Shaft Diameter: | 14 Mm | Drive Supply Voltage: | Servo AC |

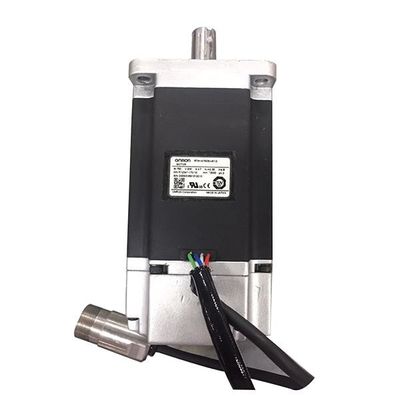

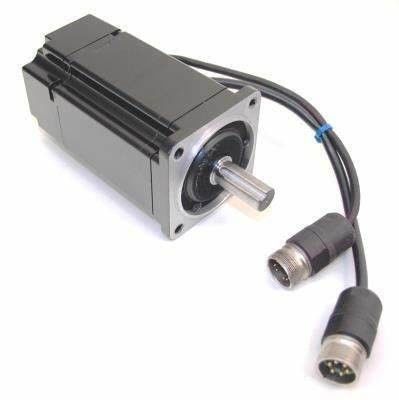

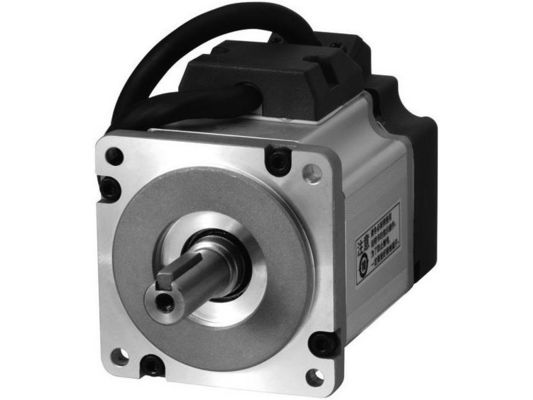

OMRON R7M-A75030-S1 AC Motor Servomotor 3000 RPM 750W Incremental 230VAC
Product information OMRON R7M-A75030-S1 :
SMART STEP AC SERVO MOTOR (CYLINDER TYPE)
In the features:
• Industry Top-class Tracking Performance. Speed Response Frequency of 2 kHz.
• Best Positioning Accuracy*. Featuring a 20-bit high-resolution incremental encoder.
* 8 times the resolution of previous OMRON models
• High-precision Positioning. Fully Closed Loop Control Is a Standard Feature.
• Conforms to the Latest International Standards. Safety and Productivity.
• Globalization. Lineup of 400 VAC Servomotors.
Same series of R88 - :
R88D-GN04H-ML2 : G-Series servo drive, 1~ 200 VAC, MECHATROLINK II integrated, 400 W
R88M-G40030H-BS2 : G-Series/SmartStep 2 AC servo motor (cylinder type), 400 W, 200 VAC, 3000 rpm, 1.3 Nm, with brake
R88M-G40030H-BS2-D: AC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, incremental, Brake, with circular connector
R88M-G40030T-BS2: AC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, absolute, Brake
R88M-G40030T-BS2-D: AC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, absolute, Brake, with circular connector
R88M-GP40030T-BS2-D: AC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, absolute, Brake, with circular connector
Details:
Similar Model Products:
| Specifications | Model | |
|---|---|---|
| Power Model Supply Voltage | Applicable Servomotor Capacity | |
| Single-phase 100 VAC |
50 W | R88D-KTA5L |
| 100 W | R88D-KT01L | |
| 200 W | R88D-KT02L | |
| 400 W | R88D-KT04L | |
| Single-phase/three-phase 200 VAC |
100 W | R88D-KT01H |
| 200 W | R88D-KT02H | |
| 400 W | R88D-KT04H | |
| 750 W | R88D-KT08H | |
| 1 kW | R88D-KT10H | |
| 1.5 kW | R88D-KT15H | |
| Three-phase 200 VAC |
2 kW | R88D-KT20H |
| 3 kW | R88D-KT30H | |
| 5 kW | R88D-KT50H | |
| 7.5 kW | R88D-KT75H | |
| 15 kW | R88D-KT150H | |
| Three-phase 400 VAC |
600 W | R88D-KT06F |
| 1 kW | R88D-KT10F | |
| 1.5 kW | R88D-KT15F | |
| 2 kW | R88D-KT20F | |
| 3 kW | R88D-KT30F | |
| 5 kW | R88D-KT50F | |
| 7.5 kW | R88D-KT75F | |
| 15 kW | R88D-KT150F | |
| Motor capacity | Gear Ratio | Model (Straight shaft) |
|---|---|---|
| 50 W | 1/5 | R88G-HPG11B05100B |
| 1/9 | R88G-HPG11B09050B | |
| 1/21 | R88G-HPG14A21100B | |
| 1/33 | R88G-HPG14A33050B | |
| 1/45 | R88G-HPG14A45050B | |
| 100 W | 1/5 | R88G-HPG11B05100B |
| 1/11 | R88G-HPG14A11100B | |
| 1/21 | R88G-HPG14A21100B | |
| 1/33 | R88G-HPG20A33100B | |
| 1/45 | R88G-HPG20A45100B | |
| 200 W | 1/5 | R88G-HPG14A05200B |
| 1/11 | R88G-HPG14A11200B | |
| 1/21 | R88G-HPG20A21200B | |
| 1/33 | R88G-HPG20A31400B | |
| 1/45 | R88G-HPG20A45200B | |
| 400 W | 1/5 | R88G-HPG14A05400B |
| 1/11 | R88G-HPG20A11400B | |
| 1/21 | R88G-HPG20A21400B | |
| 1/33 | R88G-HPG32A33400B | |
| 1/45 | R88G-HPG32A45400B | |
| 750 W (200 V) |
1/5 | R88G-HPG20A05750B |
| 1/11 | R88G-HPG20A11750B | |
| 1/21 | R88G-HPG32A21750B | |
| 1/33 | R88G-HPG32A33750B | |
| 1/45 | R88G-HPG32A45750B | |
| 750 W (400 V) |
1/5 | R88G-HPG32A052K0B |
| 1/11 | R88G-HPG32A112K0B | |
| 1/21 | R88G-HPG32A211K5B | |
| 1/33 | R88G-HPG32A33600SB | |
| 1/45 | R88G-HPG50A451K5B | |
| 1 kW | 1/5 | R88G-HPG32A052K0B |
| 1/11 | R88G-HPG32A112K0B | |
| 1/21 | R88G-HPG32A211K5B | |
| 1/33 | R88G-HPG50A314K0B | |
| 1/45 | R88G-HPG50A451K5B | |
| 1.5 kW | 1/5 | R88G-HPG32A052K0B |
| 1/11 | R88G-HPG32A112K0B | |
| 1/21 | R88G-HPG32A211K5B | |
| 1/33 | R88G-HPG50A314K0B | |
| 1/45 | R88G-HPG50A451K5B | |
| 2 kW | 1/5 | R88G-HPG32A052K0B |
| 1/11 | R88G-HPG32A112K0B | |
| 1/21 | R88G-HPG50A212K0B | |
| 1/33 | R88G-HPG50A314K0B | |
| 3 kW | 1/5 | R88G-HPG32A053K0B |
| 1/11 | R88G-HPG50A113K0B | |
| 1/21 | R88G-HPG50A213K0B | |
| 4 kW | 1/5 | R88G-HPG32A054K0B |
| 1/11 | R88G-HPG50A115K0B | |
| 5 kW | 1/5 | R88G-HPG50A055K0B |
| 1/11 | R88G-HPG50A115K0B |
