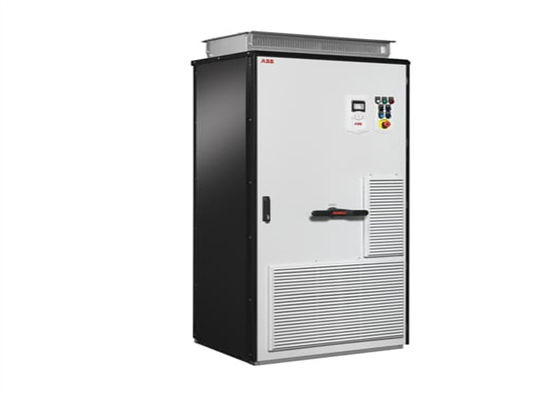

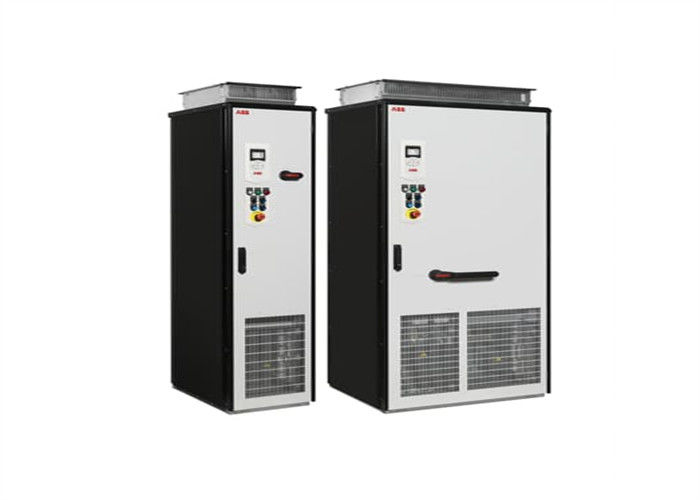

ACS880-07-0725A-3 ABB Variable Frequency Inverter ACS880 Series 400kW

Technical of ACS880-07-0725A-3

• Number of Phases:

  3

• Frequency (f):

  50 / 60 (+/- 5%) Hz

• Frame Size:

  R11

• Input Voltage (U_in):

  380 ... 415 V

• Mounting Type:

  Cabinet-built

• Output Current, Heavy-Duty Use (I_HD):

  566 A

• Output Current, Light-Overload Use (I_LD):

  715 A

• Output Current, Normal Use (I_n):

  725 A

• Output Power, Heavy-Duty Use (P_HD):

  315 kW

• Output Power, Light-Overload Use (P_LD):

  400 kW

• Output Power, Normal Use (P_n):

  400 kW

• Ecodesign Exemption:

  Energy efficiency data is not provided for this cabinet-built drive. Cabinet-built drives, with already conform modules, are excluded from the scope of the EU ecodesign requirements (Regulation EU/2019/1781, §2.3.e).

Additional Information

• Product Main Type:

  ACS880-07-0725A-3

• Product Name:

  Frequency Converter

Classifications

• Product Series:

  ACS880

• UNSPSC:

  39122001
