About  2198-H008-ERS2 :

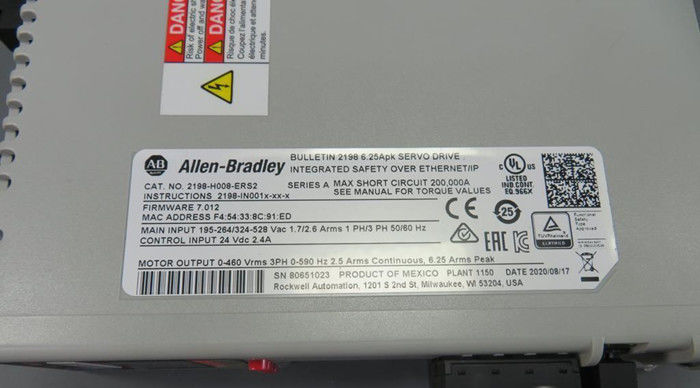

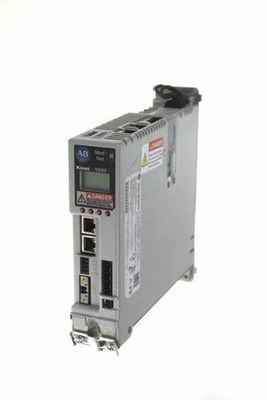

The AB 2198-H008-ERS2 is a Kinetix 5500 Ethernet I/P servo drive. This drive features a dual integrated Ethernet I/P communication port which enable this drive to connect to an existing Ethernet network for the purposes of implementing integration and integrated Safe Torque Off (STO) functionality. This drive is operation when supplied with 195…264V rms, single-phase (240V nom); 195…264V rms, three-phase (240V nom) and 324…528V rms, three-phase (480V nom).

These input voltages enable the drive to deliver output power and current ratings of 0.5 KW at 195…264V rms, single-phase; 0.8 KW at 195…264V rms, three-phase and 1.6 kW at 324…528V rms, three-phase as well as Continuous Output Current (0-peak) of 3.5 A, Continuous Output Current (rms) of 2.5 A, Peak Output Current (0-peak) of 8.8 A and Peak Output Current (rms) of 6.25 A.

This drive supports integration to ControlLogix 5570, ControlLogix 5580, CompactLogix 5370, or CompactLogix 5380 controllers using the Studio 5000 Logix Designer. This is the premiere integration method where drive parameters can become part of the user program and processed by the Logix controller. This permits dynamic drive configuration and assignments, minimizing the need of human intervention and process disruption.

Available connectors installed to this drive are Motor feedback (MF) connector, Digital inputs (IOD) connector, Motor brake (BC) connector, Shunt resistor (RC) connector, AC mains input power (IPD) connector, DC bus (DC) connector (under cover), 24V control input power (CP) connector and Motor power (MP) connector. This drive supports zero stacking installation that is ideally used in minimum and tight panel spaces.

The drive operates in various configurations, both stand-alone and multi-axis: shared AC/DC hybrid shared AC/DC, shared AC and shared DC. It provides a cost-effective motion solution, delivering both high performance and scalability with motor windings matched to drive ratings for optimized system sizing (0.6 kW to 1.6 kW).

Enhancing the midrange architecture portfolio, this motion system is designed to connect and operate with CompactLogix 5370 controllers by using Studio 5000 environment and supporting the Integrated Motion on EtherNet/IP network. Studio 5000 Logix Designer application, version 24.00 or later should be used. With the benefits of this motion system, motion applications can be run on a single control platform by using a single network, simplifying the design, operation, and maintenance of equipment. The feature that stands out about this servo drive model is its Safe torque-off via its EtherNet/IP network capability.

This feature typically works in by having the GuardLogix 5570 or Compact GuardLogix 5370 safety controller issue a Safe Torque-Off (STO) command over the EtherNet/IP network; the 2198-H008-ERS2 integrated safety drive then executes the command.

• SERVO DRIVE

• KINETIX 5500

• 195-264 / 324-528 VAC

• 3 PHASE

• W/SAFETY

Typically, a load current is not constant. It varies over time. For pulse load compatibility, following rules must be met:

a) The pulse power demand must be below 150% of the nominal power.

b) The duration of the pulse power must be shorter than the allowed Power-Boost Time. (see output section)

c) The average (R.M.S.) output current must be below the specified continuous output current. If the R.M.S. current is higher, the unit will respond with a thermal shut-down after a while. Use the max. duty cycle curve (Fig. 27-2) to check if the average output current is below the nominal current.

d) For altitudes higher than 2000m reduce the pulse loading (30W/1000m) or the ambient temperature

Follow these steps to mount the drive in single-axis configurations.
1. Observe these clearance requirements when mounting a single drive to the panel:
• Additional clearance is required for cables and wires or the shared-bus connection system connected to the top of the drive.
• Additional clearance is required if other devices are installed above and/or below the drive and have clearance requirements of their own.
• Additional clearance left and right of the drive is required when mounted adjacent to noise sensitive equipment or clean wire ways.
• The recommended minimum cabinet depth is 300 mm (11.81 in.).

1606-XLE120E & 1606-XLE120EC 24V, 5A; Single Phase Input
Instructions for two phase operation:
a) A phase to phase connection is allowed as long as the supplying voltage is below 240V(+10%).
b) Use a fuse or a circuit breaker to protect the N input. The N input is internally not protected and is in this case connected to a hot wire

Adisadvantages:
a. The faulty power supply can not be recognized. The green LED will still be on since it is reverse-powered from the other power supply.
b. It does not cover failures such as an internal short circuit in the secondary side of the power supply. In such a - virtually nearly impossible - case, the defective unit becomes a load for the other power supplies and the output voltage can not be maintained any more.

Another module:
SLC 500 Digital I/O Modules Input Catalog Numbers
1746-IA4, 1746-IA8, 1746-IA16, 1746-IB8, 1746-IB16, 1746-IC16, 1746-IG16, 1746-IH16, 1746-IM4, 1746-IM8, 1746-IM16, 1746-IN16, 1746-ITB16, 1746-ITV16, 1746-IV8, 1746-IV16
Output Catalog Numbers
1746-OA8, 1746-OA16, 1746-OAP12, 1746-OB8, 1746-OB6EI, 1746-OB16, 1746-OB16E, 1746-OBP8, 1746-OBP16, 1746-OG16, 1746-OV8, 1746-OV16, 1746-OVP16, 1746-OW4, 1746-OW8, 1746-OW16, 1746-OX8
Combination Input/Output Catalog Numbers
1746-IO4, 1746-IO8, 1746-IO12, 1746-IO12DC
