| Place of Origin: | Japan |
| Brand Name: | Mitsubishi |
| Certification: | CE |
| Model Number: | HF-KN13B |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact us |

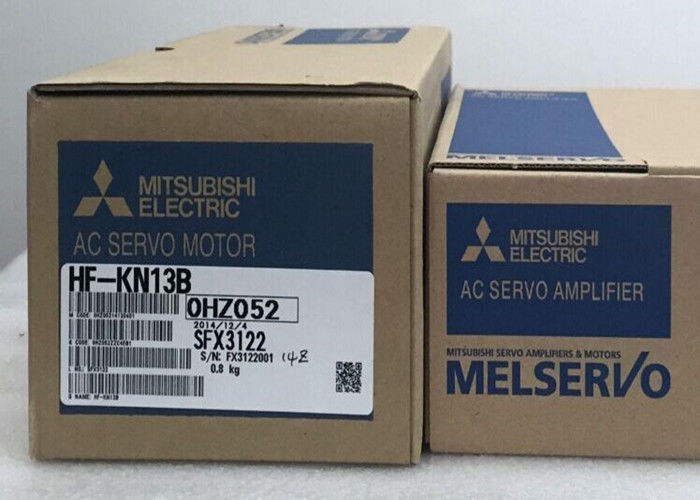

| Packaging Details: | New Original Box |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T |
| Supply Ability: | 50 |
| Model: | HF-KN13B | Brand: | Mitsubishi |
|---|---|---|---|
| Series: | HF-KN Series | Rated Output Power: | 100W |
| Rated Speed: | 3000r/min | Rating Current: | 0.8A |

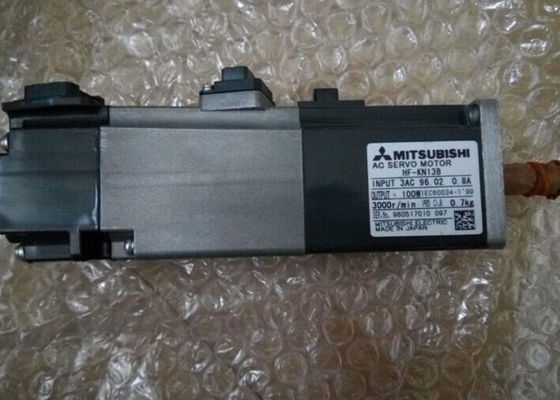

100W Mitsubishi Electric HF-KN13B Industrial 3 phase Servo motor 3AC 0.8A 3000R/MIN
Details
HF-KN low inertia, small capacity servo motor with brake - 100W
The HF-KN series are low intertia, small capacity servo motors which are specifically designed for use with MR-E series amplifiers.
Technical specification
Brand:Mitsubishi
Model:HF-KN13B
Protection:IP55
Power supply:200V
Output torque:
Continuous:0.32Nm
Peak: 0.95Nm
Rated speed:3000
Maximum rotation speed: 45000
Encoder resolution: 131072p/rev
Ambient temperature:
Operation:0 to +40ºC
Storage:-15 to +70ºC
Model designation
Introduction of Industrial Servo Motors
The servo motor with an electromagnetic brake can be used to prevent a drop in vertical lift applications or to ensure double safety at an emergency stop, for example. When operating the servo motor, supply power to the electromagnetic brake to release the brake. Switching power off enables the brake.
Though the brake lining may rattle during operation, it poses no functional problem. If braking sounds, it may be improved by setting the machine resonance suppression filter in the servo amplifier parameters. For details, refer to each servo amplifier instruction manual.
In addition to the straight shaft, the key shaft and D cut shaft are available as the servo motor shafts. The key shaft and D cut shaft cannot be used in very frequent start/stop applications. Since we cannot warrant the servo motor against fracture and similar accidents attributable to a loose key, use a friction coupling, etc. when coupling the shaft with a machine. The shaft shape of the standard servo motor changes depending on the series and capacity. Refer to the chapter of the servo motor series.
Models of HF-KN Series Servo motors
HF-KN13
HF-KN13B
HF-KN13J
HF-KN13J-S100
HF-KN13BJ-S100
HF-KN23
HF-KN23B
HF-KN23J
HF-KN23J-S100
HF-KN23BJ-S100
HF-KN43
HF-KN43B
HF-KN43J
HF-KN43J-S100
HF-KN43BJ-S100
HF-KN73
HF-KN73B
HF-KN73J
HF-KN73J-S100
HF-KN73BJ-S100
Good Service in WTL:
> We offer high quality, fast delivery, competitive price for Mitsubishi Servo Motor.
> Please send your RFQ to get the latest price.
> Normally, we will ship the items in 1-2 weeks after receive the payment.
> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways.
> We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices.
Liability:
WTL is not liable for any personal injury or property damage resulting from the use of this equipment. It is
buyer's responsibility as to the safe handling & operation of this equipment and to verify equipment is
compliance to their machinery.
