CI855K01 AC 800M Hardware 3BSE018106R1 Communication Module MB 300

 CI855K01 AC 800M Hardware 3BSE018106R1 Communication Module MB 300

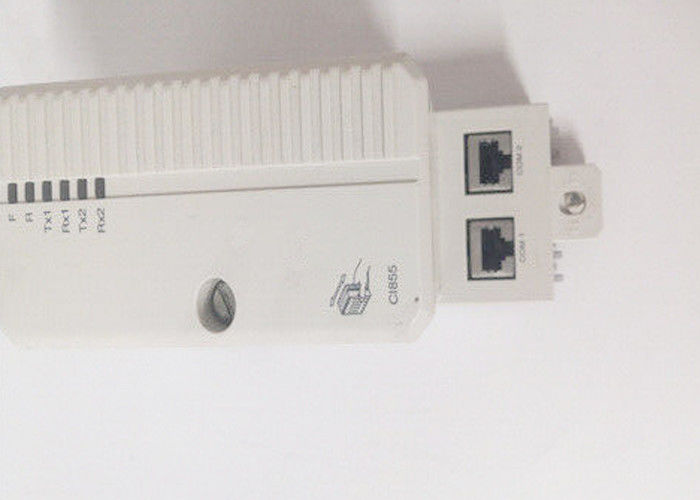

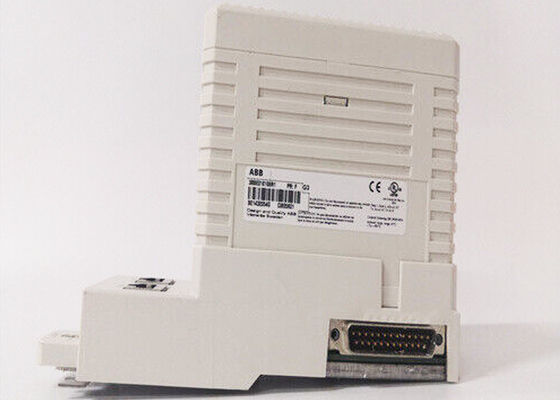

Product Information Of : CI855K01 3BSE018106R1
General info :

Article number : 3BSE018106R1

Catalog Description : CI855K01 MB 300 Interface

Type Designation : CI855K01

Communication protocol : ABB's MasterBus 300

Master or slave : Master

Transmission speed : 10 Mbit/s, 200 Datasets/s

Max units on CEX bus : 12
Connector : RJ-45 female (8-pin)
24 V consumption typ. : typ 150 mA

Minimum Order Quantity : 1 piece

Order Multiple : 1 piece

Technical :

   The MasterBus 300 (MB300) communication protocol used in communication between controllers, operator stations in installations based on Advant OCS with Master software is also implemented in the System 800xA controller AC 800M.

   The baseplate, TP853, houses RJ45 connectors for two Ethernet ports, for network redundancy and provides a simple DIN-rail mounting.

   A key benefit with the CI855 interface is the possibility of having peer-to-peer communication between new plant sections with System 800xA using the AC 800M controller and existing sections with MB 300-based controllers

Package including :
    - CI855, MB300 Interface Module
    -TP853, Baseplate

Features and benefits :

1, MB 300 network redundancy
2, Clock synchronization
3, DataSet communication
4, Hot swap
5, Per to peer communication
