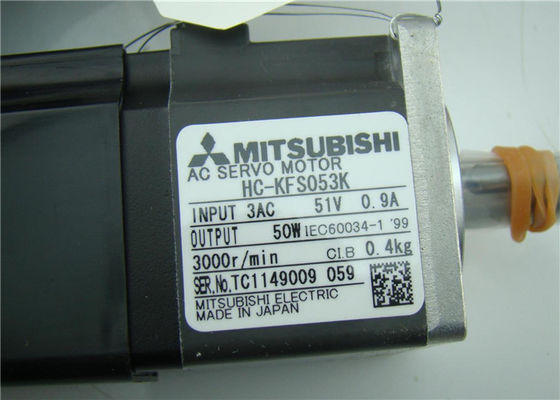

Mitsubishi 50W Industrial HC-KFS053K AC Servo Motor 51V 0.9A NEW in stock

HC-KFS053
Servo Motor 50w

HC-KFS053B
Servo Motor 50w, Brake

HC-KFS053BD
Servo Motor 50w, Brake, D-Shaft

HC-KFS053BK
Servo Motor 50w Brake Key

HC-KFS053D
Servo Motor 50w, D-Shaft

HC-KFS053K
Servo Motor 50w, Key

HC-KFS053BG1 1/12

HC-KFS053BG1 1/20
Servo Motor 50w, Brake, Gear 1/20

HC-KFS053BG1 1/5
Servo Motor 50w, Brake, Gear 1/5

HC-KFS053BG2 1/20
Servo Motor 50w, Brake, Gear 1/20

HC-KFS053BG2 1/29
Servo Motor 50w, Brake, Gear 1/29

HC-KFS053BG2 1/5
Servo Motor 50w, Brake, Gear 1/5

HC-KFS053BG2 1/9
Servo Motor 50w, Brake, Gear 1/9

HC-KFS053G1 1/12
Servo Motor 50w, Gear 1/12

HC-KFS053G1 1/20
Servo Motor 50w, Gear 1/20

HC-KFS053G1 1/5
Servo Motor 50w, Gear 1/5

HC-KFS053G2 1/20
Servo Motor 50w, Gear 1/20

HC-KFS053G2 1/29
Servo Motor 50w, Gear 1/29

HC-KFS053G2 1/5
Servo Motor 50w, Gear 1/5

HC-KFS053G2 1/9
Servo Motor 50w, Gear 1/9

Servo motor model		HC-KFS053 (B)	HC-KFS13 (B)	HC-KFS23 (B)	HC-KFS43 (B)	HC-KFS73 (B)
Servo amplifier model		MR-J2S-10A/B	MR-J2S-10A/B	MR-J2S-20A/B	MR-J2S-40A/B	MR-J2S-40A/B
Power facility capacity [kVA]		0.3	0.3	0.5	0.9	1.3
Continuous characteristics	Rated output	50[W]	100[W]	200[W]	400[W]	750[W]
	Rated torque	0.16[Nm]	0.32[Nm]	0.64[Nm]	1.3[Nm]	2.4[Nm]
Maximum torque		0.48[Nm]	0.95[Nm]	1.9[Nm]	3.8[Nm]	7.2[Nm]
Rated rotation speed [rpm]		3000	3000	3000	3000	3000
Maximum rotation speed		4500	4500	4500	4500	4500
Permissible instantaneous rotation speed		5175 [rpm]	5175 [rpm]	5175 [rpm]	5175 [rpm]	5175 [rpm]
Rated current		0.83[A]	0.71[A]	1.1[A]	2.3[A]	5.8[A]
Maximum current		2.5[A]	2.2[A]	3.4[A]	6.9[A]	18.6[A]
Weight [kg]		0.4	0.53	0.99	1.45	3



Specifications of Drive:



Common specifications MR-J2S-A/B

10A 10B

20A 20B

40A 40B

60A 60B

70A 70B

100A 100B

200A 200B

350A 350B

500A 500B

700A 700B

Power supply

Voltage / frequency

3-phase 200~230 V AC, 50/60 Hz; 1-phase 230 V AC, 50/60 Hz

3-phase 200 ~ 230 V AC, 50/60 Hz

Permissible voltage fluctuation

3-phase 200~230 VAC: 170~253 VAC, 1-phase 230 V AC: 207 ~ 253 V AC

3-phase 170 ~ 253 V AC

Permissible frequency fluctuation

±5%

Control system

Sinusoidal PWM control / current control system

Dynamic brake

Built-in

Speed frequency response

550 Hz or more

Protective functions

Overcurrent shutdown, regeneration overvoltage shutdown, overload shutdown (electronic thermal), servomotor overheat protection, encoder fault protection, regeneration fault protection, undervoltage / sudden power outage protection, overspeed protection, excess error protection.

Structure

Self-cooling, open (IP00)

Fan-cooling, open (IP00)

Environment

Ambient temperature

Operation: 0 ~ 55 centigrade degree (no freezing), storage: -20~65 centigrade degree (no freezing)

Ambient humidity

Operation: 90%RHmax. (no condensation), storage: 90%RHmax. (no condensation)

Atmosphere

Inside control panel; no corrossive gas, no flammable gas, no oil mist, no dust

Elevation

1000mor less above sea level

Oscillation

5.9m/s2 (0.6 G)max.

Weight [kg]

0.7

0.7

1.1

1.1

1.7

1.7

2.0

2.0

4.9

7.2

Model Selection:
