BT100-1F Industrial Servo Drives Adjustable Peristaltic Pump Dispenser 4 Channels

Product Details:

Place of Origin:	China
Brand Name:	Longer
Certification:	CE
Model Number:	BT100-1F

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact us
Packaging Details:	New Original Box
Delivery Time:	3-5days
Payment Terms:	T/T
Supply Ability:	50

Contact Now

Detailed Product Description

Model:	BT100-1F	Power Supply:	< 40W
Category:	Peristaltic Pump	Flow Rates:	0.0002ml/min-500ml/min
Relative Humidity:	< 80%	Operating Condition:	Temperature 0 To 40°C

BT100-1F Industrial Servo Drives Adjustable Peristaltic Pump Dispenser 4 Channels

Quick Detail

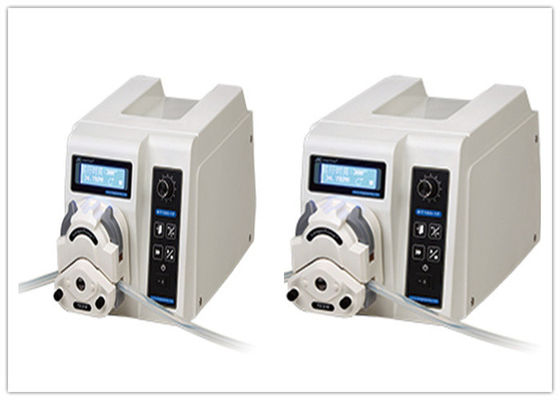

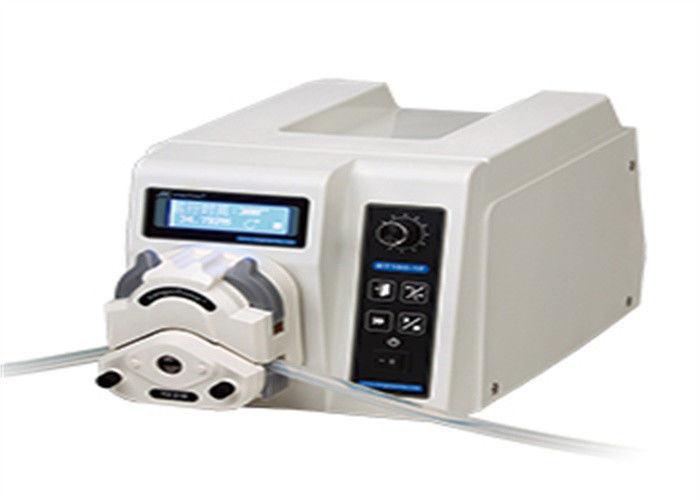

BT100-1F - Dispensing Peristaltic Pump

Dispensing peristaltic pump BT100-1F has LCD, which could display the parameters and running state.

The pump could run continuously at desired flow rate and speed, and also could complete the dispensing

function. The flow rate calibration and dispensing calibration ensure the high accuracy and precision. The

pump offers flow rate from 0.0002 mL/min to 500mL/min. And the dispensing volume is from 0.01mL to

9990mL.

Flow rates:0.0002ml/min-500ml/min

Max. Number of Channels:4

Product Feature

1. Applications:

Suitable for laboratory, analytical instrument, industry.

2. Product Instruction:

Dispensing peristaltic pump BT100-1F has LCD, which could display the parameters and running state.

The pump could run continuously at desired flow rate and speed, and also could complete the dispensing

function at desired dispensing volume, dispensing time and batch cycles. The flow rate calibration and

dispensing calibration ensure the high accuracy and precision. The pump offers flow rate from 0.0002

mL/min to 500mL/min. And the dispensing volume is from 0.01mL to 9990mL. The pump could be

controlled through control panel, external control interface and RS485 communication interface.

Specification:

Main Functions and Features

- Applicable pump heads: YZ1515X, YZII15, YZ2515X, YZII25, DG-1/DG-2
- Micro flow rates transferring: The smallest flow rate can reach 0.2 μL/min
- Dispensing function: dispense the fluid at desired volume, dispensing time and batch cycles.
- Back suction function: 0s - 99.9min, resolution is 0.1s
- Operating mode: Membrane keypad and rotary encoded switch
- Speed control: The speed can be adjusted manually or automatically through external control interface

- Prime key: For fast filling and emptying at full speed

- Power-off memory: Return to previous state when power on
- Calibration function: The flow rates and the dispensing volume can be calibrated to increase the accuracy
- Communication function: the pump could be controlled by computer through RS485 communication interface.

Technical Specifications

- Speed: 0.1-100 rpm, CW/CCW

- Speed resolution: 0.1 rpm

- Control mode: Control panel, external signal control and communication control are available

- Display: LCD for running state

- Dispensing volume: 0.01 mL to 9.99 L

- Copy number: 0 to 9999, 0 means unlimited cycle.

- Pause time: 0.1s-99.9 min, resolution is 0.1s

- Exteranl control: Start/stop, direction and speed control (4-20mA, 0-5V, 0-10V, 0-10kHz corresponding to 0.1-100 rpm)

- Speed output: 10Hz - 10kHz corresponding to 0.1 - 100 rpm

- Start/stop output: OC gate signal

- Direction output: OC gate signal

- Communication interface: RS485

- Power: AC90V - AC260V
- Power consumption: < 40W
- Operating condition: Temperature 0 to 40°C, Relative humidity < 80%
- Dimensions (L × W × H): 285 × 207 × 180 (mm)
- Drive Weight: 3.8 kg
- IP rating: IP 31

Other parameters

Drive (Product Code)	Pump head	Tubing	Flow Rate ( */min)	Weight (kg)
BT100-1F-B (05.02.13B,English)	YZ1515x,YZII15	13# 14# 19# 16# 25# 17# 18#	7 μL - 380 mL	4.2
	YZ2515x	15# 24#	0.17 mL - 267 mL
	YZII25	15# 24# 35# 36#	0.17 mL - 500 mL
	DG-1, DG-2, DG-4 (6 Rollers, 10 Rollers)	Wall Thickness: 0.8 - 1.0 (mm) Inner Diameter: ≤3.17 mm	0.2μL - 32ml (Single channel for 10 rollers)	4.0 - 4.2
	DG-1, DG-2, DG-4 (6 Rollers, 10 Rollers)	Wall Thickness: 0.8 - 1.0 (mm) Inner Diameter: ≤3.17 mm	0.25 μL- 48 ml (Single channel for 6 rollers)	4.0 - 4.2

Communication Function for BT100-1F

BT100-1F can connect to the control computer (computer, PLC, SCM) through RS485 serial

communication interface. Max. 30 pumps can be controlled by a control computer.

Note:

1. The pump ID which connects to the control computer through RS485 serial communication interface must be unique to prevent the communication error.

2. Please contact Longer Company for communication protocol.

BT100-1F - Dispensing Peristaltic Pump Operation Procedure

Liability:

WTL is not liable for any personal injury or property damage resulting from the use of this equipment. It is

buyer's responsibility as to the safe handling & operation of this equipment and to verify equipment is

compliance to their machinery.
