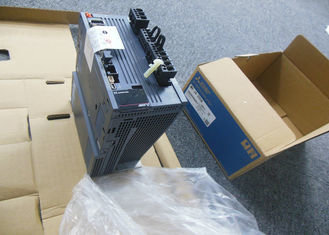

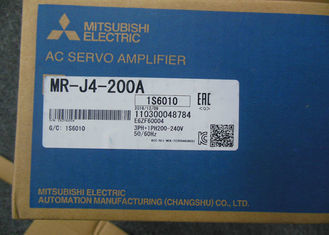

Name: MR-J4-200A Servo Amplifier Mitsubishi 2KW 200V Servo Drive
Brand: Wisdomlong Technology CO.，LTD
SKU: MR-J4-200A
Price: 1.00 USD
Availability: InStock

Home Products AC Servo Amplifier

MR-J4-200A Servo Amplifier Mitsubishi 2KW 200V Servo Drive

Product Details:

Place of Origin:	Japan
Brand Name:	Mitsubishi
Certification:	CE
Model Number:	MR-J4-200A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiated
Packaging Details:	New Original
Delivery Time:	3-5days
Payment Terms:	L/C, T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Brand:	Mitsubishi	Product Type:	AC Servo Amplifier
Part Number:	MR-J4-200A	Place Of Origin:	Japan
Frequency:	200-230 VAC	Power:	400W
Highlight:	MR-J4-200A Servo Amplifier , 2KW 200V Servo Amplifier

MR-J4-200A Mitsubishi SERVO AMPLIFIER 2KW 200V Servo Drive

Specification of Servo Drive MR-J4-200A

mode name		MR-J4-200A
Stocked Item		S
Output	Rated Voltage	3-phase 170 VAC
Output	Rated Current (A)	11.0
Main Circuit Power Supply	Voltage/Frequency	3-phase 200 VAC to 240 VAC, 50/60 Hz
	Rated Current (A)	10.5
	Permissible Voltage Fluctuation	3-phase 170 VAC to 264 VAC
	Permissible Frequency Fluctuation	±5% maximum
Control Circuit Power Supply	Voltage/Frequency	1-phase 200 VAC to 240 VAC, 50/60 Hz
	Rated Current (A)	0.2
	Permissible Voltage Fluctuation	1-phase 170 VAC to 264 VAC
	Permissible Frequency Fluctuation	±5% maximum
	Power Consumption (W)	30
Interface Power Supply		24 VDC ±10% (required current capacity: 0.5 A (including CN8 connector signal))
Load-Side Encoder Interface		Mitsubishi high-speed serial communication
Tolerable Regenerative Power of the Built-in Regenerative Resistor(W)		100
Control Method		Sine-wave PWM control/current control method
Dynamic Brake		Built-in
Protective Functions		Overcurrent shut-off, regenerative overvoltage shut-off, overload shut-off (electronic thermal), servo motor overheat protection,encoder error protection, regenerative error protection, undervoltage protection, instantaneous power failure protection, over-speed protection, error excessive protection, magnetic pole detection protection, linear servo control fault protection
Position Control Mode	Maximum Input Pulse Frequency	4 Mpps (when using differential receiver), 200 kpps (when using open-collector)
	Positioning Feedback Pulse	Encoder resolution: 22 bits
	Command Pulse Multiplying Factor	Electronic gear A/B multiple, A: 1 to 16777216, B: 1 to 16777216, 1/10 < A/B < 4000
	Positioning Complete Width Setting	0 pulse to ±65535 pulses (command pulse unit)
	Error Excessive	±3 rotations
	Torque Limit	Set by parameters or external analog input (0 V DC to +10 V DC/maximum torque)
Speed Control Mode	Speed Control Range	Analog speed command 1:2000, internal speed command 1:5000
	Analog Speed Command Input	0 V DC to ±10 V DC/rated speed (Speed at 10 V is changeable with
	Speed Fluctuation Rate	±0.01% maximum (load fluctuation 0% to 100%), 0% (power fluctuation: ±10%) ±0.2%maximum(ambient temperature 25 ± 10 centigrade degree) only when using analog speed command
	Torque Limit	Set by parameters or external analog input (0V DC to +10 VDC/maximum torque)
Torque Control Mode	Analog Torque Command Input	0VDCto±8VDC/maximum torque (input impedance: 10 to 12 kohm)
Torque Control Mode	Speed Limit	Set by parameters or external analog input (0VDC to ± 10 VDC/rated speed)
Fully Closed Loop Control		Available in the future
Safety Function		STO (IEC/EN 61800-5-2)
Communication Function		USB: Connect a personal computer (MR Configurator2 compatible)
Structure (IP Rating)		Force cooling, open (IP20)
Close Mounting		Possible
Weight (kg)		2.1

We specialize in selling and servicing a wide range of products and components:

MDS and MR Series AC Servo Drives
MDS and FR Series AC Spindle Drives
FR Series General Purpose Inverters and Braking Modules
HA / HC / HF / HP / HS Series AC Servo Motors
SJ Series AC Spindle Motors
CNC Boards
Power Supplies

Models:

MR-J2S-10A
MR-J2S-20A
MR-J2S-40A
MR-J2S-60A
MR-J2S-70A
MR-J2S-100A
MR-J2S-200A
MR-J2S-350A
MR-J2S-500A
MR-J2S-700A
MR-J2S-11KA
MR-J2S-15KA
MR-J2S-22KA
MR-J2S-30KA
MR-J2S-37KA
MR-J2S-10A1
MR-J2S-20A1
MR-J2S-40A1

III.PRECAUTIONS FOR COMPLIANCE

(1) Servo amplifiers and servo motors used

Use the servo amplifiers and servo motors which comply with the standard model.

Servo amplifier

MR-J2S-10A to MR-J2S-22KA

MR-J2S-10A1 to MR-J2S-40A1

MDS series Servo Drive

MDS-D-V1-20	MDS-D-V1-40	MDS-D-V1-80	MDS-D-V1-160	MDS-D-V1-160W
MDS-D-V1-320W	MDS-D-V2-2020	MDS-D-V2-4020	MDS-D-V2-4040	MDS-D-V2-8040
MDS-D-V1-320	MDS-D-V2-8080	MDSD-V2-16080	MDS-D-V2-160160	MDS-D-V2-160160W
MDS-DM-V3-202020	MDS-DM-V3-404040	MDS-D-SP-20	MDS-D-SP-40	MDS-D-SP-80
MDS-D-SP-160	MDS-D-SP-200	MDS-D-SP-240	MDS-D-SP-320	MDS-D-SP-400
MDS-D-SP-640	MDS-D-SP2-2020	MDS-D-SP2-4020	MDS-D-SP2-4040S	MDS-D-SP2-8040
MDS-D-SP2-8080	MDS-D-SP2-16080S	MDS-D-CV-37	MDS-D-CV-75	MDS-D-CV-110
MDS-D-CV-185	MDS-D-CV-300	MDS-D-CV-370	MDS-D-CV-450	MDS-D-CV-550

Models of Mitsubishi AC SERVO MOTOR

HF-MP053	HF-MP13	HF-MP13	HF-MP23	HF-MP43
HF-MP73	HF-KP053	HF-KP13	HF-KP23	HF-KP43
HF-KP73	HF-MP053B	HF-MP13B	HF-MP23B	HF-MP43B
HF-MP73B	HF-KP053B	HF-KP13B	HF-KP23B	HF-KP43B
HF-KP73B	HF-SP52	HF-SP102	HF-SP152	HF-SP202
HF-SP352	HF-SP502	HF-SP702	HF-SP52B	HF-SP102B
HF-SP152B	HF-SP202B	HF-SP352B	HF-SP502B	HF-SP702B
HF-SP51	HF-SP81	HF-SP121	HF-SP201	HF-SP51B
HF-SP81B	HF-SP121B	HF-SP201B	HG-SR352BK	HG-SR352BJ

Similer item we can supply:

MR-J2S-10B-S149	MR-J2S-20B-S149	MR-J2S-40B-EE085
MR-J2S-40B-EE006	MR-J2S-40B-S009U528	MR-J2S-40CP-S186
MR-J2S-40CP-S084	MR-J2S-40A-PY091	MR-J2S-40B-PY096
MR-J2S-40B-PY135	MR-J2S-40B-S210	MR-J2S-40A-PF
NR-J2S-60A-PF	MR-J2S-40A-PQ108T022	MR-J2S-40B-PY096T018
MR-J2S-60B-S041U638	MR-J2S-60B-S134	MR-J2S-40B-PY135
MR-J2S-60B-FH168	MR-J2S-40B1-EH018	MR-J2S-40B1-QA112
MR-J2S-40CP1	MR-J2S-60B-S030	MR-J2S-40B-QT0009U625
MR-J2S-40CP-EG	MR-J2S-10CP1	MR-J2S-40A-S004
MR-J2S-20CP1	MR-J2S-10A1-S017	MR-J2S-70A-S011
MR-J2S-20A-S011	MR-J2S-40A-S011	MR-J2S-100A-S011
MR-J2S-40A-EG055	MR-J2S-40A-EG011	MR-J2S-20CP-S011
MR-J2S-70CP-S011	MR-J2S-200B-S126	MR-J2S-70CP-S259
MR-J2S-70B-T004	MR-J2S-350CP-S186	MDS-B-SVJ2-07
MR-J2S-70B-RT	MR-J2S-350CP-S084	MDS-D-SVJ3-01NA
MR-J2S-100B-T004	MR-J2S-350B-EG	MDS-D-SVJ3-02NA
MR-J2S-100B-RT	MR-J2S-350B-EG117	MDS-D-SVJ3-07NA
MR-J2S-70A-PM070	MDS-B-SVJ2-01	MDS-D-SVJ3-10NA
MR-J2S-200A-EJ012	MDS-B-SVJ2-03	MDS-D-SVJ3-20NA
MR-J2S-200B-T004	MDS-B-SVJ2-04	MR-J2S-100CP-S084
MR-J2S-200A-S007	MDS-B-SVJ2-06	MR-J2S-100CP-S186
MR-J2S-200B-S009V613	MDS-B-SVJ2-10	MR-J2S-70B-PY135U504
MR-J2S-200B-RS238	MDS-B-SVJ2-20	MR-J2S-40B-PY135U504

Warranty

We offer 1 year warranty for this product. If the product is out of working order under proper usage per

instructions manual within the warranty period, please contact us to obtain a merchandise return code and

shipping instruction. Then, send it back at your shipping costs.

After receiving your return item, it will take 7 days for evaluation and investigation. A brand new

replacement unit will be sent to you at our shipping costs if it meets our warranty requirements.

Payment

Credit card on line is available.We also accept payment by T/T and Western Union.
This item have stock,so can delivery to you within 3 business days after your payment cleared.If ther

is any import duties or taxes,it is the buyer's responsibility.

Good Service in WTL:

> We offer high quality, fast delivery, competitive price for Mitsubishi Servo Motor and Servo Drive.
> Please send your RFQ to get the latest price.
> Normally, we will ship the items in 1-2 weeks after receive the payment.
> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways.
> We have a large stock and the prices are variable, so sometimes the prices we post are not accurate.

If needed, please contact us for specific prices.v
