5KW Mitsubishi Electric Drive MR-J2S-500B-EG180 Industrial AC Servo Amplifier 500A NEW

5KW Mitsubishi Electric Drive MR-J2S-500B-EG180 Industrial AC Servo Amplifier 500A NEW

Introduction

MR-J2S Series Industrial Servo Drive

1)The MR-J2S-A series
comes with analogue and digital inputs and is excellent for all single axis applications from positioning over speed to torque control.

2)The MR-J2S-B series
with network bus facility is perfect for precise multiple axis synchronisation solutions. They are designed for SSCNET connection in combination with Mitsubishi A-Motion-Controllers or Q-series Motion Controllers. The motion controllers and servo amplifiers can be linked via SSCNET network.

3)The MR-J2S-CP & MR-J2S-CL
is a totally programmable amplifier that gives an in-expensive complete positioning solution for the smaller power range.

Specifications

• Manufacturer : Mitsubishi
• Product No. : MR-J2S-500B-EG180
• Product type : Servo Amplifier Module
• Phase : 3 Control function : Servo Control
• Rating Power:5KW
• Current rating : 500 A
• Minimum operating temperature : 0 °C
• Maximum operating temperature : +55 °C
• Permissible frequency fluctuation Within : 5%
• Dynamic brake : Built-in
• Shipping weight : 10Kg

Corresponding servo motor type name

• HC-SFS502
• HC-LFS302
• HC-RFS353
• HC-RFS503
• HA-LFS502
• HC-SFS502B
• HC-LFS302B
• HC-RFS353B
• HC-RFS503B
• HC-UFS352
• HC-UFS352B
• HC-UFS502
• HC-UFS502B

Description of Motors:

HC-SFS502 - Mitsubishi Melservo HC Servo Motor, 5KW (HCSFS502)
HC-SFS502K - Mitsubishi Melservo HC Servo Motor with Key, 5KW (HCSFS502K)
HC-SFS502BK - Mitsubishi Melservo HC Servo Motor with Brake Key, 5KW (HCSFS502BK)
HC-RFS353 - Mitsubishi Melservo HC Servo Motor (HCRFS353)
HC-RFS353B - Mitsubishi Melservo HC Servo Motor with Brake (HCRFS353B)
HC-RFS353K - Mitsubishi Melservo HC Servo Motor with Key (HCRFS353K)
HC-RFS353BK - Mitsubishi Melservo HC Servo Motor with Brake Key (HCRFS353BK)
HC-RFS503 - Mitsubishi Melservo HC Servo Motor, 5KW (HCRFS503)
HC-RFS503B - Mitsubishi Melservo HC Servo Motor with Brake, 5KW (HCRFS503B)
HC-RFS503K - Mitsubishi Melservo HC Servo Motor with Key, 5KW (HCRFS503K)
HC-RFS503BK - Mitsubishi Melservo HC Servo Motor with Brake Key, 5KW (HCRFS503BK)
HC-UFS352 - Mitsubishi Melservo HC Servo Motor, 3.5KW (HCUFS352)
HC-UFS352K - Mitsubishi Melservo HC Servo Motor with Key, 3.5KW (HCUFS352K)
HC-UFS352BK - Mitsubishi Melservo HC Servo Motor with Brake Key, 3.5KW (HCUFS352BK)
HC-UFS502 - Mitsubishi Melservo HC Servo Motor, 5KW with O KEYWAY (HCUFS502)
HA-LFS502 - Mitsubishi Melservo HC Servo Motor, 5KW, 2000RPM (HALFS502)

• MDS and MR Series AC Servo Drives
• MDS and FR Series AC Spindle Drives
• FR Series General Purpose Inverters and Braking Modules
• HA / HC / HF / HP / HS Series AC Servo Motors
• SJ Series AC Spindle Motors
• CNC Boards
• Power Supplies

Mitsubishi MR-J2S Series Servo Drive

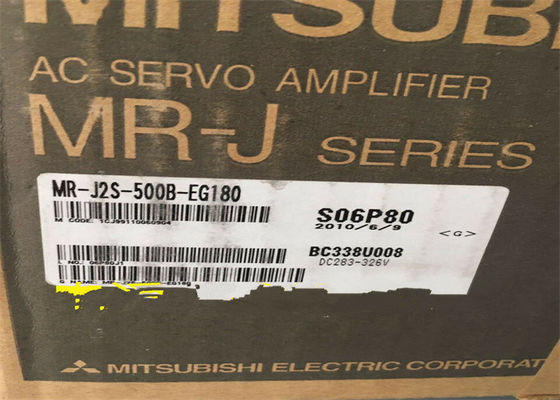

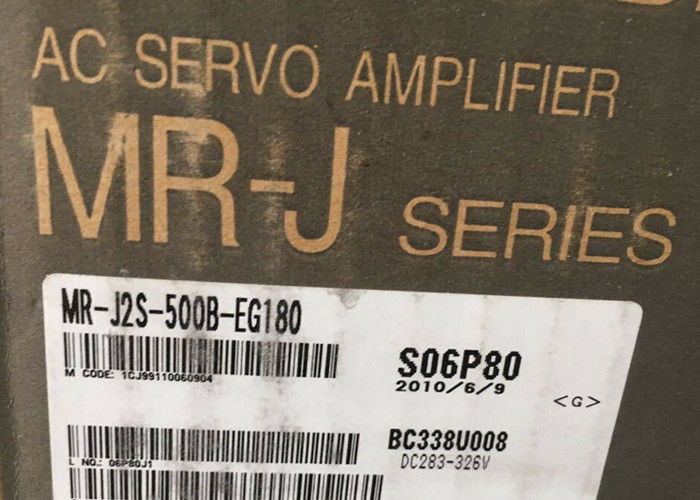

Nameplate





• All the Mitsubishi Parts are new and original with package.
• Warranty time: 180 or 360 days.
