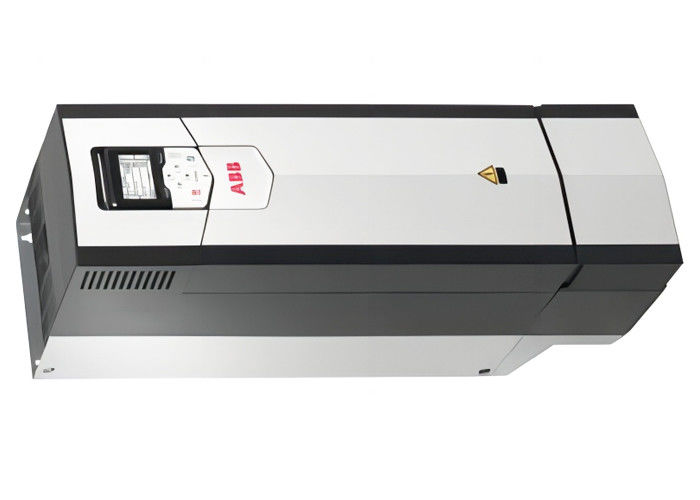

ACS880-01-035A-7 3AUA0000115101 Wall-Mounted Frequency Inverter R5

  ACS880-01-035A-7 3AUA0000115101 Wall-Mounted Frequency Inverter R5

    The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters and I/O extension modules.

Product Information Of :  ACS88001035A7

General info :

Article number : 3AUA0000115101

Catalog Description : ACS880-01-035A-7 PN: 30 kW, IN: 35 A

Type Designation : ACS880-01-035A-7

Product Series : ACS880

Product Main Type : ACS880-01

Invoice Description : ACS880-01-035A-7 PN: 30 kW, IN: 35 A

Minimum Order Quantity : 1 piece

Technical :

Number of Phases : 3

Degree of Protection : IP21

Enclosure Type NEMA : Type1

Frequency (f) : 47.5 ... 63 Hz

Frame Size : R5

Input Voltage (Uin) : 525 ... 690 V

Mounting Type : Wall-mounted

Communication Protocol : CAN

                                          DeviceNet

                                          EtherNet/IP

                                          MODBUS

                                          Other Bus Systems

                                          PROFIsafe

                                          PROFIBUS

                                          PROFINET IO

Number of Hardware Interfaces : Industrial Ethernet 0

                                                     Other 4

                                                     Parallel 0

                                                     PROFINET 0

                                                     RS-232 0

                                                     RS-422 0

                                                     RS-485 1

                                                     Serial TTY 0

                                                     USB 1

Categories :

Products » Drives » Low Voltage AC Drives » Industrial Drives » ACS880 single drives » ACS880-01 - Wall-mounted single drive
