PSE300-600-70-1 1SFA897114R7001 PSE300 Softstarter 50/60Hz New

  PSE300-600-70-1 1SFA897114R7001 PSE300 Softstarter 50/60Hz New

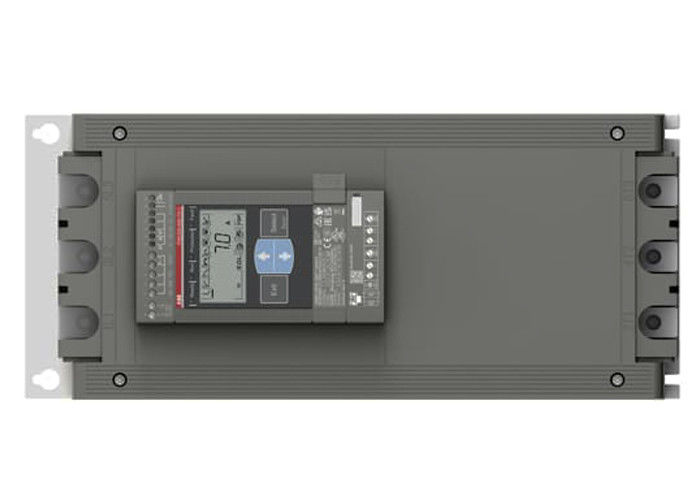

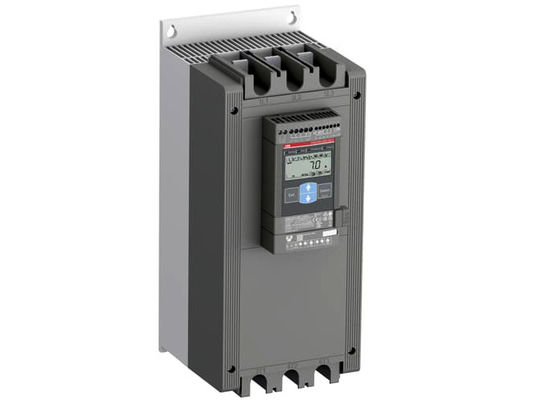

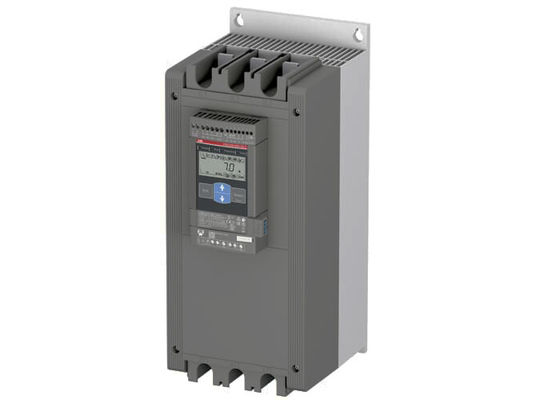

    The softstarter PSE300-600-70-1 has a rated maximum operational current of 300 A with an operating voltage span from 208...600 V AC. The rated control voltage is between 100...250 V AC at 50/60 Hz. PSE features a two-phase control with a soft start and stop through a voltage or a torque ramp. It has built-in bypass for easy installation and energy saving. A RUN, TOR, and Event signal is available from a relay output in NO (normally open state). The PSE has functions such as current limit, kickstart, analog output, EOL, underload, and locked rotor protection. To interact with PSE, it has an Illuminated display that uses symbols to become language neutral. As an option, you can add an identical external keypad with a rating of IP66. There are three ways to communicate with PSE. It can be done by hardwire inputs Start/Stop or by Reset of fault. Another popular option is the built-in fieldbus communication Modbus RTU. You can also use an external adaptor and a Fieldbus plug.

Product Information Of : PSE300 600 70 1

General info :

Article number : 1SFA897114R7001

Catalog Description : PSE300-600-70-1 Softstarter - 300 A - 208 ... 600 V AC

Type Designation : PSE300-600-70-1

Product Main Type : PSE300

Invoice Description : PSE300 Softstarter 1SFA897114R7001

Minimum Order Quantity : 1 piece

Technical :

Rated Operational Voltage : 208 ... 600 V AC

Rated Control Supply Voltage (Us) : 100 ... 250 V AC

Rated Control Circuit Voltage (Uc) : 24 V DC

Rated Frequency (f) : 50/60 Hz
                                   Main Circuit 50 / 60 Hz

Analog Outputs : 4…20 mA

Maximum Operating Voltage UL/CSA : Main Circuit 600 V

Tightening Torque UL/CSA : Control Circuit 4.4 in·lb
                                              Main Circuit 247.8
                                              Supply Circuit 4.4 in·lb

Protection Function :
Electronic overload protection, EOL;

Locked rotor protection;

Current underload protection

Categories :

Products » Drives » Softstarters » Softstarters » PSE Softstarters » PSE300
Products » Low Voltage Products and Systems » Control Products » Softstarters » Softstarters » PSE Softstarters » PSE300
