ABB 1326AB-B515G-M2K5LS SERIES SERVO MOTOR WITH 2.9 KILLOWATTS

AB 1326AB-B515G-M2K5LS SERIES SERVO MOTOR WITH 2.9 KILLOWATTS

Technical Specifications for 1326AB-B515G-M2K5L

Brand Allen-Bradley / Rockwell Automation
Series 1326 Motors
Part Number 1326AB-B515G-M2K5L
Type of device Brushless AC servo motor
Voltage 380-460 Volts AC
Type of Voltage Three-phase
Frequency 50-60 Hertz

Output current 2.9 Killowatts
Enclosure IP 65
Speed 4000 to 5000 RPM
Feedback Multi-turn high resolution encoder
Controller 1391 Servo Controller
Product Lifecycle Status* Discontinued/Obsolete

•

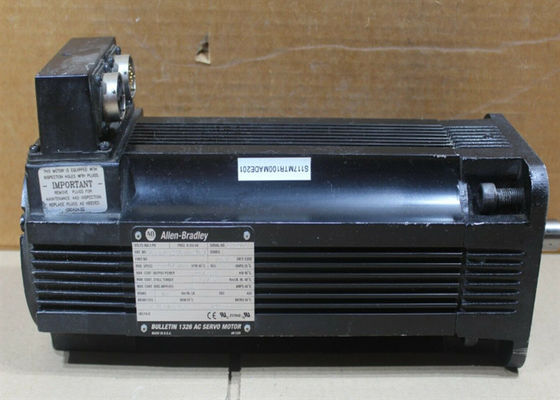

  About 1326AB-B515G-M2K5L

  The 1326AB-B515G-M2K5L servo motor is a multi-turn and three-phase servo motor that has been designed by Allen-Bradley with different mechanisms that enhance all its features. This servo motor belongs to the 1326 Torque Plus series. This motor comes enclosed in an IP 65 housing and it is manufactured in different materials that make it suitable for any environment. It comes with an aluminum housing and an Allen-Bradley technology that promotes heat release. The Allen-Bradley 1326AB-B515G-M2K5L multi-turn and three-phase servo motor can be connected to any compatible controller from the 1391 series. It is this controller that will be in charge of operating the servo motor, controlling its speed, torque, and primarily its voltage. The voltage used will modify the operating speed of the servo motor. The rated speed goes from 4000 to 5000 RPM and the maximum voltage applied is 460 Volts AC with a frequency of 50 to 60 Hertz.



  One of the most highlighted features of the Allen-Bradley 1326AB-B515G-M2K5L multi-turn and three-phase servo motor is that it can be exposed to harsh environmental conditions without being affected. This is due to the enclosure used and to several options that are available such as the shaft seal option that gives the servo motor the ability to be in contact with liquids and oils without the risk of damage. The Allen-Bradley 1326AB-B515G-M2K5L multi-turn and three-phase servo motor can reach an amperage rating of up to 7.5 and 28.5 Amps during the continuous peak and stall speak respectively. It also has an output rating of 2.9 kilowatts. The motor comes with a frame diameter of 149 millimeters.
