Name: AB 1326 Series AB-B720E-21 Industrial Servo Motor Brand New In Box
Brand: Wisdomlong Technology CO.，LTD
SKU: 1326AB-B720E-21
Price: 1.00 USD
Availability: InStock

Home Products Industrial Servo Motor

AB 1326 Series AB-B720E-21 Industrial Servo Motor Brand New In Box

Product Details:

Place of Origin:	Japan
Brand Name:	AB
Certification:	CE
Model Number:	1326AB-B720E-21

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiatable
Packaging Details:	New in original box
Delivery Time:	3-5 days
Payment Terms:	T/T
Supply Ability:	20

Contact Now

Detailed Product Description

Brand:	AB	Model:	1326AB-B720E-21
Country Of Origin:	Japan	Condition:	New Original
Warranty:	1 Years	Series:	Ovation
Highlight:	1326AB-B720E-21 , 1326 SERIES Industrial Servo Motor , 3500 RPM Industrial Servo Motor

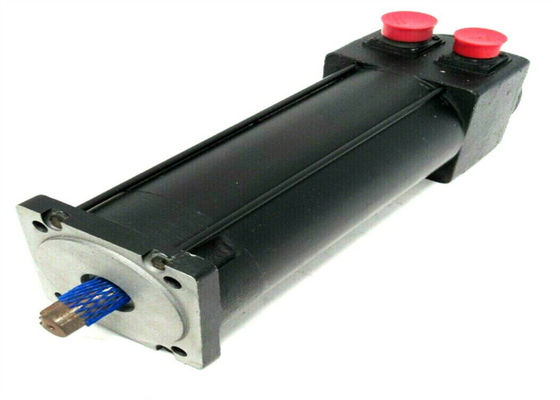

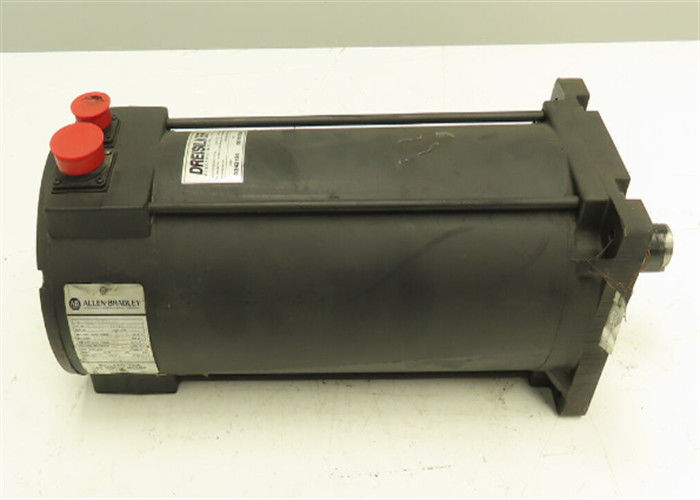

AB 1326 Series AB-B720E-21 Industrial Servo Motor Brand New In Box
Technical Specifications for 1326AB-B720E-21
Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number/Catalog No. 1326AB-B720E-21
Product Type Servo Motor
Voltage 460/380V AC
Frame Diameter 194 mm
Rated Motor Speed 3500 rpm

Flange and Shaft Series IEC Metric Flange with Keyway
Motor Rated Torque 30.9 Nm
Motor Rated Output 6.8 kW
System Continuous Torque 30.9 Nm
System Peak Stall Torque 88.1 Nm
Standard Option N/A
Product Lifecycle Status* Discontinued/Obsolete

About 1326AB-B720E-21
The 1326AB-B720E-21 servo motor is a 3500 RPM rated Allen-Bradley servo motor. It is designed and manufactured as part of the Allen-Bradley 1326AB series of servo motors. Applications for 1326AB series servo motors include metal forming, packing, automotive, and machine tool applications. The 1326AB-B720E-21 servo motor delivers 3000 and 3500 RPM at 380 and 460 Volts AC, respectively. Additional motor specifications include 27.3 pounds on an inch of motor torque, 6.8 kilowatts power output, and 0.14 lb-in-s2 rotor inertia. The 1326AB-B720E-21 servo motor is designed for use with Allen-Bradley 1394 motor control systems. The motor can be used with 2 different 1394 axis modules. With both the Allen-Bradley AM50 and the AM75 modules, the motor offers 273 pounds on an inch of steady-state stall torque while the maximum stall torque is 518 pounds on an inch with the AM50 module and it is 780 pounds on an inch with the AM75 module. With the AM50 and the AM75 modules, the 1326AB-B720E-21 servo motor delivers 17.5 Amps of continuous stall current while the maximum stall current is 33.2 Amps with the AM50 module and is 50 Amps with the AM75 module.

The mechanical specifications of the 1326AB-B720E-21 servo motor include a frame diameter of 194 millimeters, a 20-millimeter magnet stack length, and 102 pounds of motor weight. Also available on the servo motor are an IEC 72-1 metric flange and resolver-based feedback. Allen-Bradley recommends that the 1326AB-B720E-21 servo motor should be operated in an environment where the temperature of the air surrounding the motor does not exceed 104 degrees Fahrenheit. The motor can be mounted with the shaft facing vertically downwards or upwards. The extruded aluminum housing of the 1326AB-B720E-21 servo motor enables it to have improved heat transfer. The environmental protection rating of the motor is IP 65.
