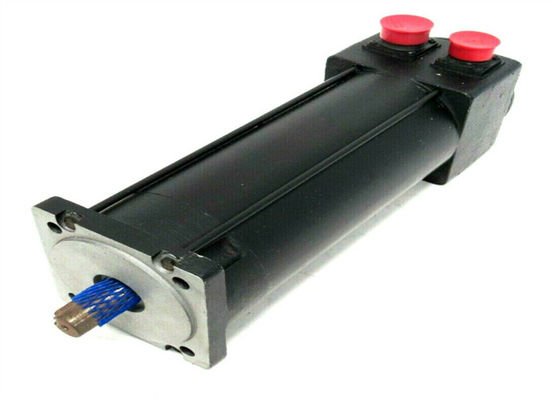

AB 1326 Series AB-B720E-21-K7L AC Servo Motor Brand New In Original

Technical Specifications for 1326AB-B720E-21-K7L

Flange and Shaft Series IEC Metric Flange with Keyway
Motor Rated Torque 30.9 Nm
Motor Rated Output 6.8 kW
System Continuous Torque 30.9 Nm
System Peak Stall Torque 88.1 Nm
Standard Option 41 Nm Holding Brake w/ 24V DC Coil with IP67 Environmental Rating
Product Lifecycle Status* Discontinued/Obsolete

About 1326AB-B720E-21-K7L

This series also has multiple feedback options including Rugged, brushless resolver and Absolute multi-turn and single-turn encoder. They also feature a three-phase sinusoidal wound stator field and a special flux profile permanent magnets. These features are used for smooth operation and increased servo response. The motor speed rating for 1326AB-B720E-21-K7L is 3500 RPM while its motor output rating is 6.8 kW. It has a 30.9 N-m system of continuous torque and 88.1 N-m system peak stall torque rating. This servo motor also has a holding brake with 24V DC coil and IP67 environmental rating (standard option). The 1326AB-B720E-21-K7L, as well as the other torque plus servo motors, can be installed vertically or at an angle with the shaft elevated or lowered.
