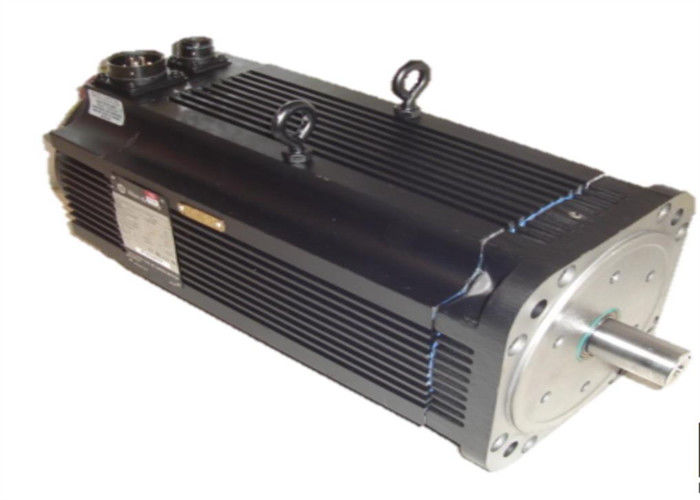

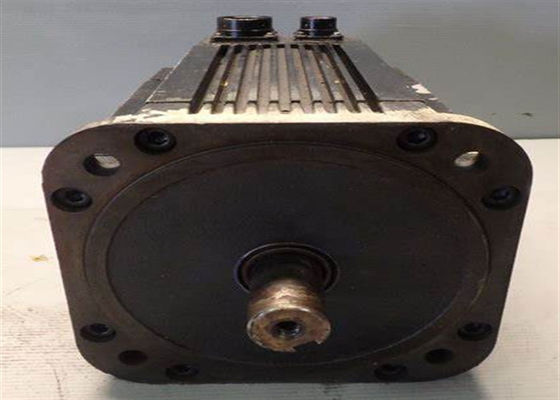

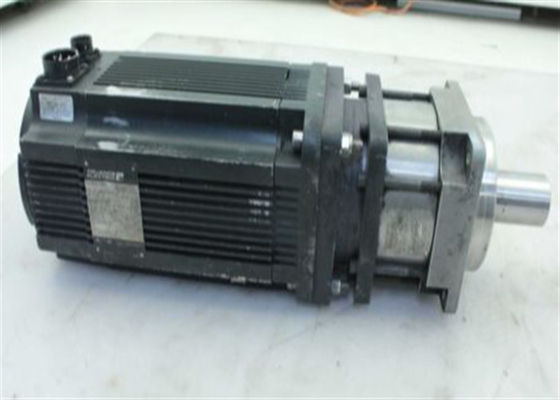

AB 1326AB-B720E-M2L HIGH-PERFORMANCE SERVO MOTOR USES CONTROL TECHNOLOGY

• AB 1326AB-B720E-M2L HIGH-PERFORMANCE SERVO MOTOR USES CONTROL TECHNOLOGY

•

Technical Specifications for 1326AB-B720E-M2L

Brand Allen-Bradley
Part Number/Catalog No. 1326AB-B720E-M2L
Product Type AC Servo Motor
Voltage AC voltage

Frame Diameter 194 millimeters
Feedback Options Resolver and encoder
Voltage Rating 460/380 Volts AC
Product Lifecycle Status* Discontinued/Obsolete

About 1326AB-B720E-M2L

The Allen-Bradley/Rockwell Automation 1326AB-B720E-M2L high-performance servo motor can be replaced by Elwood drop-in replacement servo motors. The Elwood 1326AB-B720E-M2L servo motor can replace F Series, N Series, W Series, H Series (S Series), 1326AB Series, and 1326AS Series Allen-Bradley/Rockwell Automation 1326AB-B720E-M2L servo motor. All of the Elwood 1326AB replacement servo motors are RoHS compliant and its windings, mounting, connectors, and feedback components are all OEM components.

The 1326AB-B720E-M2L servo motor has high-resolution multi-turn absolute feedback. It can operate at a temperature between 32 and 104 degrees Fahrenheit and it can be stored at a temperature between -25 and 158 degrees Fahrenheit. The relative humidity in the storage or operating area for this servo motor should be between 5 and 95%, non-condensing. This servo motor has 4 poles and a maximum operating speed of 3500 RPM. Its rated drive supply voltage is 460 Volts AC. The rated current is 24.8 Amps, the rated output power is 6.8 kilowatts and 9.1 Horsepower, the rated continuous stall torque of 273 pounds on an inch, and the peak stall torque is 780 pounds on an inch. At shipping, the servo motor’s weight 102.1 pounds and the shipping weight of a 1326AB-B720E-M2L servo motor with brakes installed is 115.1 pounds.
