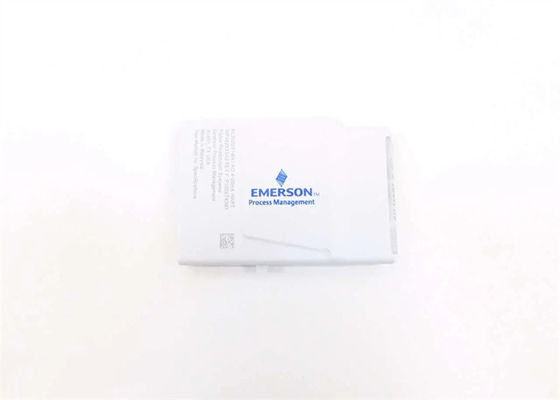

Emerson KL3022X1-BA1 Brand New And Original Standard Terminal Block

Emerson KL3022X1-BA1 brand New and Original Standard Terminal Block

Power Specifications:

CHARM Bus powerrating+6.3 VDC at 32 mA

Field circuit rating +24 VDC at 30 mA

Environmental Specifications:

Ambient Temperature:  -40 °C to +70 °C

Shock: 10 g half-sine wave for 11 ms

Vibration:  1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz

AirborneContaminants: ISA-S71.04 –1985 AirborneContaminants Class G3

Relative Humidity:  5 to 95% Non-Condensing

Terminal block keyposition: 4A

Note: Refer to the product label for serial numberand location and date of manufacture.

Warning:

This product has specific instructions forinstallation, removal and operation in hazardousareas.

Refer to document 12P5403 "DeltaVElectronic Marshalling Digital Automation System(CHARM I/O Subsystem) Zone 2 InstallationInstructions".

Other installation instructions areavailable in the " DeltaV S-series and CHARMsHardware Installation" manual.

This unit cannot be removed or inserted with systempower energized unless the area is known to benon-hazardous.An I/O loop assessment must be completed on allenergy-limited nodes.

A keying system ensures compatibility between aCHARM and the CHARM terminal block when theCHARM is installed on the terminal block. Theterminal block keys are automatically set the first time the CHARM is installed on the terminal block.

To install another CHARM type on a terminal block,reset the keys by removing the terminal block andreleasing the keys from the locked position.
