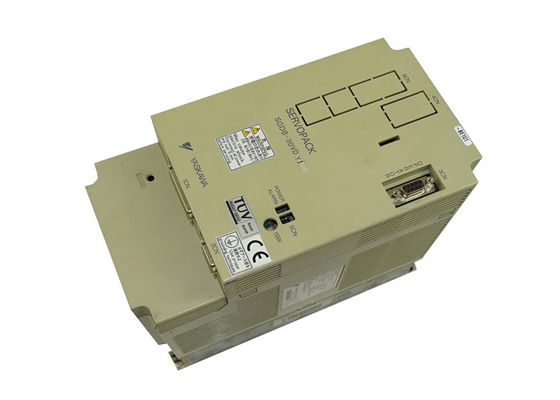

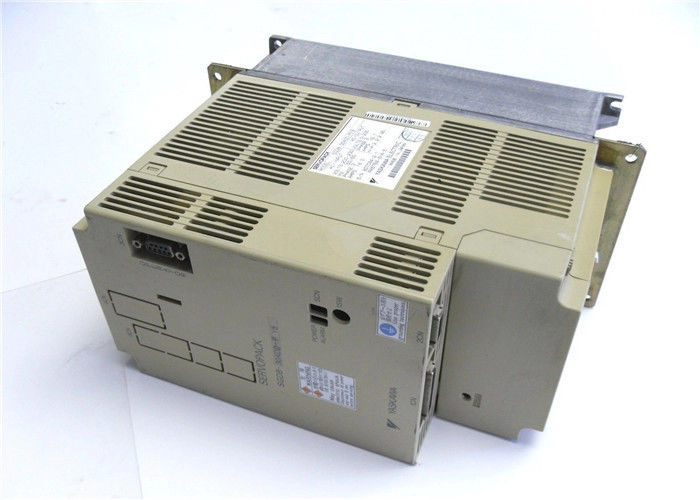

AC Servo Drives Yaskawa SGDB-30AD Brand New In Original Box 230V

AC Servo Drives Yaskawa SGDB-30AD Brand New In Original Box 230V



Description:



Information	SGDB-30AD is Servo Drives-AC manufactured by Yaskawa
Drive Type	SGDB AC Servo Drive
Output Value	3.0kW
Supply Voltage	200V
Type	Torque, Speed, Position Control
Applicable motor series	SGM
Option Specifications	None
Modification	None

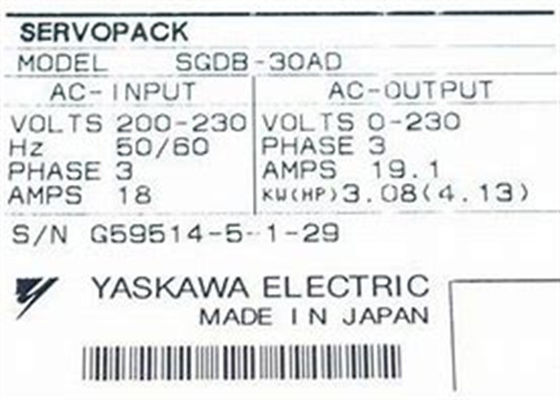

Type: SGDB-30AD

Kind: AC Servo Drives
Brand: Yaskawa

Guarantee: 1 year
Voltage: 200-230V

Authority: 2.9kw
Now: 18A

Phase: 3



Security module

Applicable maximum motor capacity: 0.05kw.
Power supply voltage: three-phase AC200V.
Interface: MECHATROLINK- Communication command type III (rotary servo motor).
Design order: B.

Hardware specifications: basic installation type (standard).
Matching (software): mismatched (standard) Datasheet SGD7S-2R8A20A PDF catalog PDF datasheet SGD7S-2R8A20A.
Matching (parameter): no matching (standard) SGD7S-2R8A20A



Optional module: security module.
European EC Standard: Based on the integration of the ISO13849-1 EN mechanical instruction standard,
Security module with the IEC-defined individual standard 61800-5-2 security functions.
Through the combination of SGDV servo units, the best safety design of the mechanical system is realized.

Suitable for AC servo drives, with the following safety features specified in the international standard IEC61800-5-2 (the first in Japan) datasheet SGD7S-2R8A20A PDF Catalog PDF datasheet SGD7S-2R8A20A.
It can easily achieve the best safety design of mechanical systems.



Safe Off Torque (STO)
Safe Stop 1 (SS1)
Safe Stop 2 (SS2)
Safely Limited Speed (SLS)

Equipped with 2 security functions, adjustable (distribution) security function.

With the use of servo units with security modules, so the system can be simplified and minimized. SGMCS Small C

Capacity type direct drive servo motor.

Rated torque: M/17N.

Outer diameter size of servo motor: 290mm.

Serial encoder: 20-bit absolute value type (1 circle absolute value) (standard).
Design sequence: the size of the outer diameter of the service motor is marked as model E.
Flange specifications: C face, reverse load side (lead).
Optional specifications: none match.

Under conditions without a speed reducer, the load is driven directly.
It can be realized from low speed to high speed of strong
smoothness (instantaneous maximum torque: 6~600N/m, maximum speed: 250~500r/min).

By using a 20-bit high-resolution encoder, high precision is possible.
Convenient use of hollow, cable and piping structures.



Use example:

Semiconductor manufacturing equipment.
Liquid crystal circuit board manufacturing equipment.
Various inspection and testing equipment.
Electronic parts packaging machine.
IC information processor.
IC inspection equipment.
Various automatic machines.
Robot.



Small capacity rating and specification:

Time value: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or higher.
Using ambient temperature: 0~40 degree C.
Excitation mode: permanent magnet type.
Mounting method: flange type.

Heat resistance class: A.

Voltage withstand insulation: AC1500V 1 minute SGD7S-2R8A20A datasheet PDF catalog PDF datasheet SGD7S-2R8A20A.
Protection mode: fully enclosed self-cooling type IP42 (except for rotating output shaft section).

Rotation direction: clockwise rotation (CCW) on the load side below the direction of rotation.
