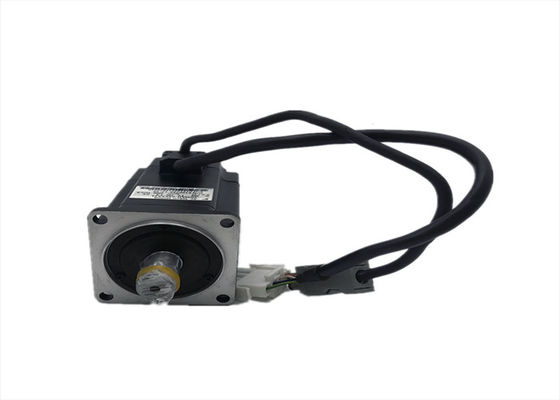

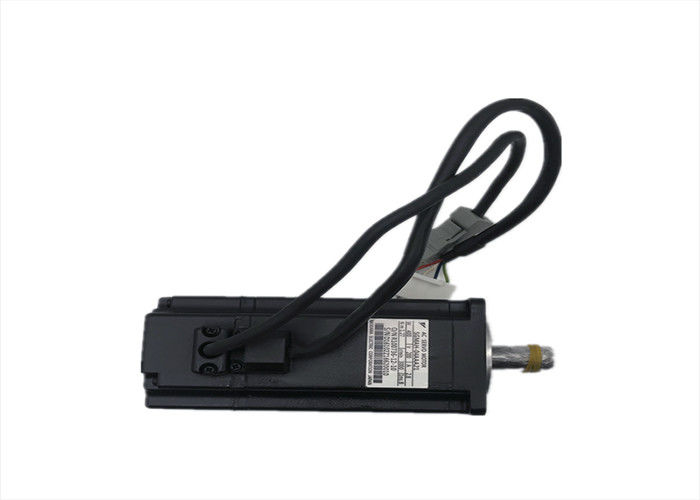

Yaskawa SGMAH-04AAA21 Sigma 2 Series AC Servo Motor Brand New

Yaskawa SGMAH-04AAA21 Sigma 2 Series AC Servo Motor Brand New

Description:

Yaskawa SGMAH-04AAA21 Product information and technical parameters:
Brand: Yaskawa
Name: servo motor

Model: SGMAH-04AAA21
Servo motor type SGMAH (speed: 3000r/min).
Power: 0.4kw.

Power supply voltage: single phase AC200V.
Serial encoder: 13 bit relative value.
Design sequence: A.

Shaft end: straight shaft without key.
Optional parts: no brake oil seal.
Improve mechanical properties.

In order to achieve a higher production efficiency, SGDMAH type to the best control to explore the highest performance of the machine,
Compared with the original models, CPU computing time for its 1/2, through the expansion of the new control algorithm,
Positioning time is shortened to the original product of 1/3, to achieve a good response.

The parameter setting and maintenance time is shortened.
In order to establish a high degree system in a short time, the use of the simplicity of the.

Flexible use of online automatic adjustment function

Automatic adjustment of servo system with mechanical characteristics.
Then use the main loop / control circuit power separation and alarm tracking memory function, can be simple to carry out maintenance

Excitation mode: permanent magnet type Yaskawa SGMAH-04AAA21.
Installation method: flange type.
Heat resistance grade: F.

Insulation withstand voltage: AC1500V 1 minutes (200V), AC1800V 1 minutes (400V).
Protection mode: fully enclosed self cooling type IP67 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).

Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotationSigma -v series servo unit SGDV Yaskawa SGMAH-04AAA21.

Maximum applicable motor capacity: 0.75kw.
Power supply voltage: three phase AC200V.
Design sequence: A type.

Interface: MECHATROLINK- II communication command type (rotary servo motor).
Matching (hardware): base mounting type (standard).

Realize real time communication.
The maximum transmission speed of 10Mbps and can be set to the communication cycle 250 s ~ 4ms,
Achieved a maximum of 30 stations in the high speed control. Through the high speed of communication,
Can send and receive all kinds of control information in real time.

Energy saving and high efficiency.
A maximum of 30 stations can be connected to the communication lines, can significantly reduce the wiring costs and time.
The command connector of the upper controller only needds 1,

Pulse generator for D/A converter or position instruction without speed / torque command SGMAH-04AAA21.

High precision motion control is realized.

In addition to torque, position and speed control, but also to achieve high precision synchronizzation phase control SGMAH-04AAA21.
Because the control mode can be switched on line, the complicated mechanical action can be realized more effectively and smoothly.
