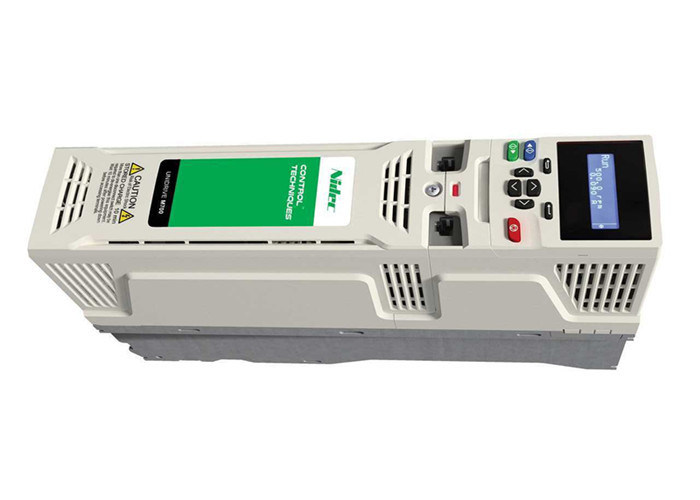

Control Techniques Unidrive M701 460VAC Drive
Class leading induction and permanent magnet servo motor performance
2HP 3.4A Normal Duty / 1HP 2.5A Heavy Duty
50/60Hz 460VAC 3 Phase Input and Output
Optional Enhanced Keypad - KI-KEYPAD-LCD or KI-KEYPAD-RTC
Maximize throughput with superior motor control
-
High bandwidth motor control algorithm for closed-loop induction, permanent magnet and servo motors - 3300 Hz current-loop bandwidth and 250 Hz speed-loop bandwidth
-
Flexible speed and position feedback interface supports a wide range of feedback technologies from robust resolvers to high resolution encoders.
-
Up to three encoder channels simultaneously e.g. 1 feedback encoder, 1 reference encoder and 1 simulated output
-
MCi modules can eliminate the need for external PLCs and motion controllers
-
Simulated encoder output can provide position reference for CAMs, digital lock and electronic gearbox applications.
Optimize system performance with onboard Advanced Motor Controller
Design flexible centralized and decentralized control systems
-
MCi modules can be added to execute larger programs for advanced system control capability.
-
Onboard PLC for logic programs
-
Machine Control Studio is an industry standard IEC61131-3 programming environment for efficient system design and configuration
-
Three System Integration ports are available to fit additional fieldbus, position feedback and I/O options
Conform to safety standards, maximize uptime and reduce costs by integrating directly with safety systems
Description
Unidrive M700
Class leading induction and permanent magnet servo motor performance, with real-time Ethernet
Unidrive M700 offers an enhanced upgrade for existing Unidrive SP users.
The Unidrive M700 family of drives provides top-tier motor control for closed-loop induction, permanent megnet and servo applications. These drives are highly flexible, running from 0.75 kW - 2.8 MW (1 - 4200 hp) at 200V / 400V / 575V / 690V.
The Unidrive M700 provides class-leading motor control for induction, permanent magnet and servo applications, plus onboard real-time Ethernet. Unidrive M700 provides ultimate control flexibility in order to satisfy the requirements of machine builders and high specification industrial applications.
M701-Unidrive SP replacement
Designed to match Control Techniques'highly popular Unidrive SP feature-set. This includes RS485 communications, 1 xSTO, analog and digital I/O, identical control connectors, with Unidrive SP Smartcard parameter sets supported to make upgrading to Unidrive M as simple as possible
M702-Safety Enhanced
The safety enhanced M700 has 2 x STO, onboard real-time Ethernet and digital I/O; where easy integration with modern control and safety systems is paramount. If analog I/O is required, this can be provided by an SI-I/O option module.
Models of AC DRIVE M701-034
| M701-03400025A |
Control Techniques M700 Drives Unidrives M700-09601040A-125 Maximum Continuous Current Amps, 110 Motor Shaft Power kW, 150 Motor Shaft Power HP |
| M701-03400031A |
Control Techniques M700 Drives Unidrives M700-09601040E-125 Maximum Continuous Current Amps, 110 Motor Shaft Power kW, 150 Motor Shaft Power HP |
| M701-03400045 |
Control Techniques M700 Drive |
| M701-03400045A |
Control Techniques M700 Drives Unidrives M700-09601310A-150 Maximum Continuous Current Amps, 132 Motor Shaft Power kW, 175 Motor Shaft Power HP |
| M701-03400062A |
Control Techniques M700 Drives Unidrives M700-09601310E-155 Maximum Continuous Current Amps, 132 Motor Shaft Power kW, 175 Motor Shaft Power HP |
| M701-03400078A |
Control Techniques M700 Drives Unidrives M700-10202830E-325 Maximum Continuous Current Amps, 90 Motor Shaft Power kW, 125 Motor Shaft Power HP |
| M701-03400100A |
Control Techniques M700 Drives Unidrives M700-10203000E-360 Maximum Continuous Current Amps, 110 Motor Shaft Power kW, 150 Motor Shaft Power HP |
Specifications of AC Drive M700
200/240 VAC
+/-10% |
Normal Duty |
Heavy Duty |
| Order Code |
Max Continuous Current (A) |
Motor Shaft Power (kW) |
Motor Shaft Power (HP) |
Max Continuous Current (A) |
Motor Shaft Power (kW) |
Motor Shaft Power (HP) |
| M701-03200050A10 |
6,6 |
1,1 |
1,5 |
5 |
0,75 |
1 |
| M701-03200066A10 |
8 |
1,5 |
2 |
6,6 |
1,1 |
1,5 |
| M701-03200080A10 |
11 |
2,2 |
3 |
8 |
1,5 |
2 |
| M701-03200106A10 |
12,7 |
3 |
3 |
10,6 |
2,2 |
3 |
| M701-04200137A10 |
18 |
4 |
5 |
13,7 |
3 |
3 |
| M701-04200185A10 |
24 |
5,5 |
7,5 |
18,5 |
4 |
5 |
| M701-05200250A10 |
30 |
7,5 |
10 |
25 |
5,5 |
7,5 |
| M701-06200330A10 |
50 |
11 |
15 |
33 |
7,5 |
10 |
| M701-06200440A10 |
58 |
15 |
20 |
44 |
11 |
15 |
| M701-07200610A10 |
75 |
18,5 |
25 |
61 |
15 |
20 |
| M701-07200750A10 |
94 |
22 |
30 |
75 |
18,5 |
25 |
| M701-07200830A10 |
117 |
30 |
40 |
83 |
22 |
30 |
| M701-08201160A10 |
149 |
37 |
50 |
116 |
30 |
40 |
| M701-08201320A10 |
180 |
45 |
60 |
132 |
37 |
50 |
| M701-09201760A10100AB |
216 |
55 |
75 |
176 |
45 |
60 |
| M701-09202190A10100AB |
266 |
75 |
100 |
219 |
55 |
75 |
380/480 VAC
+/-10% |
Normal Duty |
Heavy Duty |
| Order Code |
Max Continuous Current (A) |
Motor Shaft Power (kW) |
Motor Shaft Power (HP) |
Max Continuous Current (A) |
Motor Shaft Power (kW) |
Motor Shaft Power (HP) |
| M701-03400025A10 |
3,4 |
1,1 |
1,5 |
2,5 |
0,75 |
1 |
| M701-03400031A10 |
4,5 |
1,5 |
2 |
3,1 |
1,1 |
1,5 |
| M701-03400045A10 |
6,2 |
2,2 |
3 |
4,5 |
1,5 |
2 |
| M701-03400062A10 |
7,7 |
3 |
5 |
6,2 |
2,2 |
3 |
| M701-03400078A10 |
10,4 |
4 |
5 |
7,8 |
3 |
5 |
| M701-03400100A10 |
12,3 |
5,5 |
7,5 |
10 |
4 |
5 |
| M701-04400150A10 |
18,5 |
7,5 |
10 |
15 |
5,5 |
10 |
| M701-04400172A10 |
24 |
11 |
15 |
17,2 |
7,5 |
10 |
| M701-05400270A10 |
30 |
15 |
20 |
27 |
11 |
20 |
| M701-05400300A10 |
30 |
15 |
20 |
30 |
15 |
20 |
| M701-06400350A10 |
38 |
18,5 |
25 |
35 |
15 |
25 |
| M701-06400420A10 |
48 |
22 |
30 |
42 |
18,5 |
30 |
| M701-06400470A10 |
63 |
30 |
40 |
47 |
22 |
30 |
| M701-07400660A10 |
79 |
37 |
50 |
66 |
30 |
50 |
| M701-07400770A10 |
94 |
45 |
60 |
77 |
37 |
60 |
| M701-07401000A10 |
112 |
55 |
75 |
100 |
45 |
75 |
| M701-08401340A10 |
155 |
75 |
100 |
134 |
55 |
100 |
| M701-08401570A10 |
184 |
90 |
125 |
157 |
75 |
125 |
| M701-09402000A10100AB |
221 |
110 |
150 |
200 |
90 |
150 |
| M701-09402240A10100AB |
266 |
132 |
200 |
224 |
110 |
150 |
Keypads
Remote keypad
All the features of the CI-Keypad LCD, but remote mountable. This allows flexible mounting on the outside of a panel and meets IP66 (NEMA 4)
KI-Keypad
Plain text, multi-language LCD keypad with up to 4 lines of text for in depth parameter and data descriptions, for enhanced user experience
KI-Keypad RTC
All the features of the KI-Keypad, but with battery operated realtime clock. This allows accurate time stamping of events, aiding diagnostics
SP Drives
| SP1201 |
SP1202 |
SP1203 |
SP1204 |
SP2201 |
SP2202 |
SP2203 |
SP3201 |
| SP3202 |
SP4201 |
SP4202 |
SP4203 |
SP5201 |
SP5202 |
SP3501 |
SP3502 |
| SP0401 |
SP0402 |
SP0403 |
SP0404 |
SP0405 |
SP1401 |
SP1402 |
SP1403 |
| SP1404 |
SP1405 |
SP1406 |
SP2201 |
SP2202 |
SP2401 |
SP2402 |
SP2403 |
| SP2404 |
SP3401 |
SP3402 |
SP3403 |
SP4401 |
SP4402 |
SP4403 |
SP5401 |
| SP5402 |
SP5403 |
SP6401 |
SP6402 |
SP3505 |
ES2401 |
ES2402 |
ES2403 |
| SP3503 |
SP3504 |
SP3506 |
SP4601 |
SP4602 |
SP4603 |
SP4604 |
SP4605 |
| SP4606 |
SP5601 |
SP5602 |
SP6601 |
SP6602 |
Unidrive SP |
Quantum MP |
Mentor MP |
Commander SK AC Inverter
| SKA1100025 |
SKA1100037 |
SKB1100075 |
SKB1100110 |
SKA1200025 |
SKA1200037 |
SKA1200055 |
| SKBD200110 |
SKBD200150 |
SKCD200220 |
SKDD200300 |
SKD3200400 |
SKB3400037 |
SKB3400055 |
| SKB3400110 |
SKB3400150 |
SKB3400220 |
SKB3400300 |
SKB3400400 |
SKB3400550 |
SKB3400750 |
| SKA1200075 |
SKB3400075 |
SK3201 |
SK3202 |
SK4201 |
SK4202 |
SK4203 |
| SK2402 |
SK2403 |
SK2404 |
SK3401 |
SK3402 |
SK3403 |
SK4401 |
| SK4403 |
SK5401 |
SK5402 |
SK6401 |
SK6402 |
SK3501 |
SK3502 |
| SK3504 |
SK3505 |
SK3506 |
SK3507 |
SK4601 |
SK4602 |
SK4603 |
| SK4605 |
SK4606 |
SK5601 |
SK5602 |
SK6601 |
SK6602 |
SK6602 |
| SK2401 |
SK4402 |
SK2201 |
SK2202 |
SK2203 |
SK3503 |
SK4604 |
UNI Drives:
| UNI1201 |
UNI1202 |
UNI1203 |
UNI1204 |
UNI1205 |
UNI2201 |
UNI2202 |
UNI2203 |
| UNI3201 |
UNI3202 |
UNI3203 |
UNI3204 |
UNI1401 |
UNI1402 |
UNI1403 |
UNI1404 |
| UNI1405 |
UNI2401 |
UNI2402 |
UNI2403 |
UNI3401 |
UNI3402 |
UNI3403 |
UNI3404 |
| UNI3405 |
UNI4401 |
UNI4402 |
UNI4403 |
UNI4404 |
UNI4405 |
UNI5401 |
SP5402 |
