Emerson Brand New PLC Logic Controller 3491-L1P6I1 Original Box

Emerson Brand New PLC Logic Controller 3491-L1P6I1 Original Box

Description:

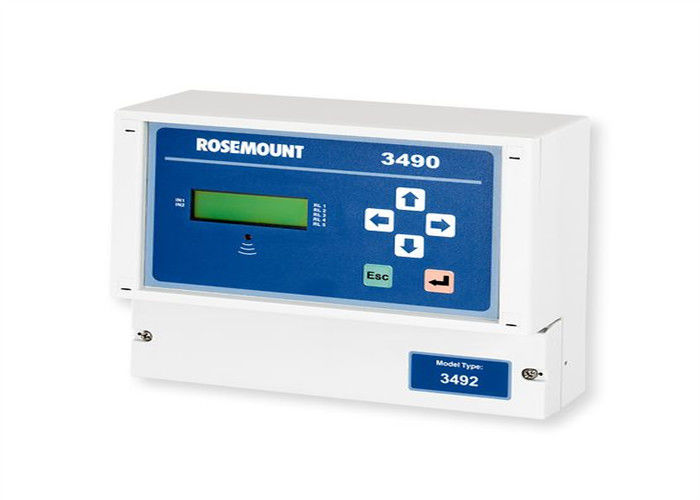

Rosemount 3490 Series level controllers are single input and panel mounted devices.
This control unit provides comprehensive control capabilities for any compatible transmitter ranging from 4mA to 20 mA.

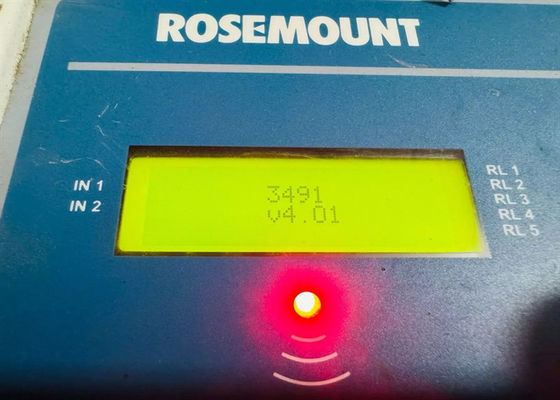

It has a backlit display with a clear Visual indication of all input and output measurements and status.
It requires 115/25t 230Vac power supply.
This controller features easy-to-understand menus and programming wizards, is easy to program, and password protected against accidental or unauthorized changes.


Characteristics and advantages:
The standard control unit accepts inputs from a single transmitter with five non-voltage single-pole double-throw relays for transmit and transmit, for alarm and control work support for dual voltage content-free closed inputs clearly display measurements and input/output status locally Pre-programmed tank shapes, flow algorithms and control routines simplify configuration.
20-point bundling table device real-time clock for non-standard applications, date/time stamped panel mount housing for energy saving routines, pump efficiency calculations and data logging with a 2-part cage spring clamp Terminal on the back.


3491L1P6I1 Liquid level controller technical parameters:
Hazardous Area Certification: ATEX
Overall length: 213mm
Output type: 1 x 4-20mA + 5 x relay output
Probe voltage: 230/115Vac selectable
Power supply voltage: 115 V AC, 230 V AC
Maximum operating temperature: +55°C
Overall width: 185mm
Number of inputs: 1
Input type: Current, voltage
Series: 3490
IP protection level: IP65
Output number: 1
Minimum operating temperature: -40°C
Overall depth: 84mm
Rated current: 200 (fuse) mA, 4 → 20 mA
Isolation voltage: 500V DC
Installation style: Wall mount
