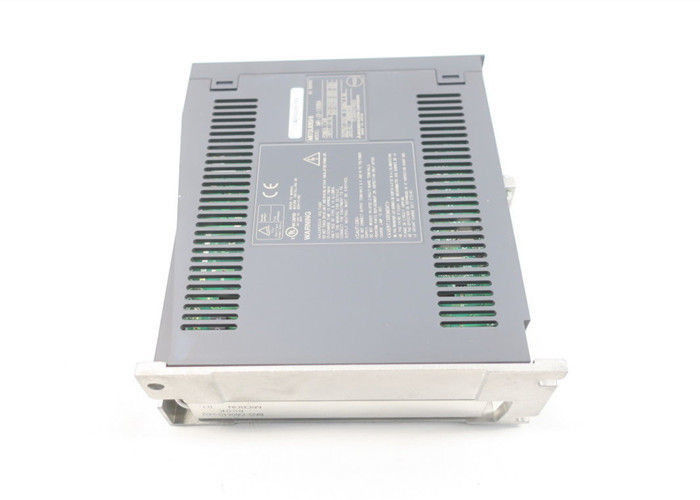

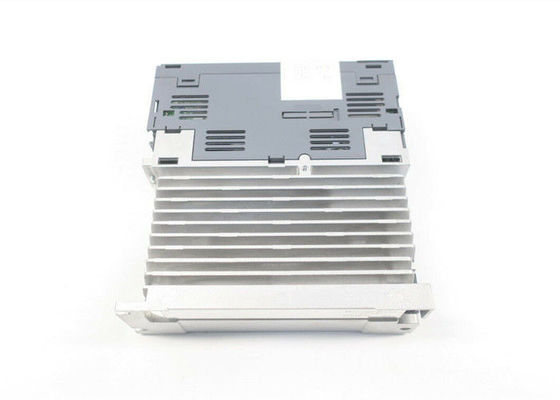

Name: Mitsubishi 1KW Industrial Amplifier MR-J3-100B-LF117 3 Phase AC Servo Drive 2.5A
Brand: Wisdomlong Technology CO.，LTD
SKU: MR-J3-100B-LF117
Price: 1.00 USD
Availability: InStock

Home Products Industrial Servo Drives

Mitsubishi 1KW Industrial Amplifier MR-J3-100B-LF117 3 Phase AC Servo Drive 2.5A

Product Details:

Place of Origin:	Japan
Brand Name:	Mitsubishi
Certification:	CE
Model Number:	MR-J3-100B-LF117

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	New Original Box
Delivery Time:	3-5days
Payment Terms:	T/T
Supply Ability:	50

Contact Now

Detailed Product Description

Model:	MR-J3-100B-LF117	Brand:	Mitsubishi
Power Supply:	200VAC.	Rated Output:	1.0kw
Type:	AC Servo Motor Drive	Current:	2.8A

Mitsubishi 1KW Industrial Amplifier MR-J3-100B-LF117 3 Phase AC Servo Drive 2.5A

Specification

Model:MR-J3-100B-LF117
Mitsubishi General-purpose,AC servo amplifier, MELSERVO-J3 Series.
Rated output:1.0kw.
General-purpose interface.
Power Supply:200VAC.
Compatible Motors:HF-SP81,HF-SP102,HF-JP103,HF-JP53,HC-LP102

Description	MR-J3-100B-LF117 is a Drives-AC Servo produced by Mitsubishi
Servomotor Type	MR-J3 AC Servo Amplifier
Phase	3
Supply Voltage	200 to 230 V ac
Power	1kw
Input	2.5A 3PH+1PH 380-480V 50Hz 3PH+1PH 380-480V 60Hz
Output	323V 0-360Hz 2.8A

Product Family: MR-J3-10A, MR-J3-10B, MR-J3-20A, MR-J3-20B, MR-J3-40A, MR-J3-40B, MR-J3-60A, MR-J3-60B, MR-J3-70A, MR-J3-70B, MR-J3-100A, MR-J3-100B, MR-J3-200A, MR-J3-200B, MR-J3-350A, MR-J3-350B, MR-J3-500A, MR-J3-500B, MR-J3-700A, MR-J3-700B

Description

The Mitsubishi MELSERVO-J3 series general-purpose AC servo has further higher performance and higher functions. It has position control, speed control and torque control modes. Further, it can perform operation with the control modes changed, e.g. position/speed control, speed/torque control and torque/position control. Hence, it is applicable to a wide range of fields, not only precision positioning and smooth speed control of machine tools and general industrial machines but also line control and tension control. As this new series has the USB or RS-422 serial communication function, a MR Configurator installed personal computer or the like can be used to perform parameter setting, test operation, status display monitoring, gain adjustment, etc. With real-time auto tuning, you can automatically adjust the servo gains according to the machine. Simply adding a battery to the servo amplifier makes up an absolute position detection system. This makes home position return unnecessary at power-on or alarm occurrence by setting a home position once.

Product range

Servo Amplifiers MR-J3-A/B/T (200 V Type)		10A 10B 10T	20A 20B 20T	40A 40B 40T	60A 60B 60T	70A 70B 70T	100A 100B 100T	200A 200B 200T	350A 350B 350T	500A 500B 500T	700A 700B 700T
Power supply	Voltage/frequency*	3-phase 200-230V AC, 50/60Hz 1-phase 200-230V AC, 50/60Hz					3-phase 200-230V AC, 50/60Hz
	Permissible voltage fluctuation	3-phase 200-230V AC: 170-253V AC 1-phase 230V AC: 207-253V AC					3-phase 170-253V AC
	Permissible frequency fluctuation	Max. ±5%
Control system		Sinusoidal PWM control / current control system
Dynamic brake		Built-in
Protective functions		Overcurrent shutdown, regeneration overvoltage shutdown, overload shutdown (electronic thermal relay), servo motor overheating protection, encoder fault protection, regeneration fault protection, undervoltage / sudden power outage protection, overspeed protection, excess error protection
Cooling / protection rating		Self-cooling, open (IP00)				Fan cooling, open (IP00)
Environment	Ambient temperature	Operation: 0-55°C (non-condensing); Storage: -20-65 °C (non-condensing)
	Relative humidity	Operation: 90% RH max. (non-condensing); Storage: 90% RH max. (non-condensing)
	Elevation	Max. 1000m above sea-level
	Vibration	Max. 5.9m/s² (0.6G)
Weight [kg]		0.8	0.8	1.0	1.0	1.4	1.4	2.3	2.3	4.6	6.2

ervo Amplifiers MR-J3-A4/B4/T4 (400 V Type)		60A4 60B4 60T4	100A4 100B4 100T4	200A4 200B4 200T4	350A4 350B4 350T4	500A4 500B4 500T4	700A4 700B4 700T4	11KA4 11KB4	15KA4 15KB4	22KA4 22KB4
Power supply	Voltage/frequency*	3-phase 380-480V AC, 50/60Hz
	Permissible voltage fluctuation	3-phase 323-528V AC, 50/60Hz
	Permissible frequency fluctuation	Max. ±5%
Control system		Sinusoidal PWM control / current control system
Dynamic brake		Built-in						External option
Protective functions		Overcurrent shutdown, regeneration overvoltage shutdown, overload shutdown (electronic thermal relay), servo motor overheating protection, encoder fault protection, regeneration fault protection, undervoltage / sudden power outage protection, overspeed protection, excess error protection
Cooling / protection rating		Self-cooling, open (IP00)		Fan cooling, open (IP00)
Environment	Ambient temperature	Operation: 0-55°C (non-condensing); Storage: -20-65 °C (non-condensing)
	Relative humidity	Operation: 90% RH max. (non-condensing); Storage: 90% RH max. (non-condensing)
	Elevation	Max. 1000m above sea-level
	Vibration	Max. 5.9m/s² (0.6G)
Weight [kg]		1.7	1.7	2.1	4.6	4.6	6.2	18	18	19

Highlights

High-speed controllers for ultra-short positioning times; average speed frequency response 2100Hz
High-resolution encoders for maximum speed constancy (18 bits 262,144 P/rev)
Advanced vibration suppression for outstanding adaptation to machine requirements
Autotuning for extremely fast setup and installation
Optimum cost/benefit ratio
Absolute position encoder included as standard equipment
Minimum wiring overheads thanks to Plug & Play configuration and automatic motor identification
Supports global standards

MR-J3 series Industrial Servo Drive

MR-J3-10A	MR-J3-20A	MR-J3-40A	MR-J3-60A	MR-J3-70A	MR-J3-1000A
MR-J3-200A	MR-J3-350A	MR-J3-500A	MR-J3-700A	MR-J3-10B	MR-J3-20B
MR-J3-40B	MR-J3-60B	MR-J3-70B	MR-J3-100B	MR-J3-200B	MR-J3-350B
MR-J3-500B	MR-J3-700B	MR-J3-10A1	MR-J3-20A1	MR-J3-40A1	MR-J3-60A1

We specialize in selling and servicing a wide range of Mitsubishi products and components:

MDS and MR Series AC Servo Drives
MDS and FR Series AC Spindle Drives
FR Series General Purpose Inverters and Braking Modules
HA / HC / HF / HP / HS Series AC Servo Motors
SJ Series AC Spindle Motors
CNC Boards
Power Supplies

Mitsubishi Servo Motors

HC-MFS053	HC-KFS053	HC-MFS13	HC-KFS13	HC-MFS053B	HC-KFS053B
HC-MFS13B	HC-KFS13B	HC-MFS053K	HC-KFS053K	HC-MFS13K	HC-KFS13K
HC-MFS053BK	HC-KFS053BK	HC-MFS13BK	HC-KFS13BK	HC-MFS23	HC-KFS23
HC-MFS43	HC-KFS43	HC-MFS23B	HC-KFS23B	HC-MFS43B	HC-KFS43B
HC-MFS23K	HC-KFS23K	HC-MFS43K	HC-KFS43K	HC-MFS23BK	HC-KFS23BK
HC-MFS43BK	HC-KFS43BK	HC-MFS73	HC-KFS73	HC-MFS73B	HC-KFS73B
HC-MFS73K	HC-KFS73K	HC-MFS73BK	HC-KFS73BK	HC-SFS81	HC-SFS121
HC-SFS201	HC-SFS301	HC-SFS52	HC-SFS102	HC-SFS152	HC-SFS202
HC-SFS52B	HC-SFS102B	HC-SFS152B	HC-SFS202B	HC-SFS52K	HC-SFS102K
HC-SFS152K	HC-SFS202K	HC-SFS52BK	HC-SFS102BK	HC-SFS152BK	HC-SFS202BK
HC-SFS352	HC-SFS502	HC-SFS702	HC-SFS352B	HC-SFS502B	HC-SFS702B
HC-SFS353	HC-SFS352K	HC-SFS502K	HC-SFS702K	HC-RFS353	HC-RFS103
HC-RFS153	HC-RFS203	HC-RFS353	HC-SFS53	HC-SFS103	HC-SFS153
HC-SFS203	HC-KFS13	HC-KFS13B	HC-MF73-S15	HC-MF053	HC-KFSP3

What is Details of Our Mitsubishi Parts?

All the Mitsubishi Parts are new and original with package.
Warranty time: 1 year.

Our advantage Products:

【Honeywell】Module DCS / PLC

【Emerson / Delta V】Module

【ABB】Input Output Module

【AB】Module / Touch Screen

【Rosemount】Pressure and Temperature Transmitter

【Yokogawa】Pressure Transmitter

【Yaskawa】Servo Drive / Servo Motor

【GE/Fanuc】IC69 Series PLC

【Mitsubishi】Servo Drive / Servo Motor

(Modicon,SMC,SICK,NORGREN,Siemens etc.)
