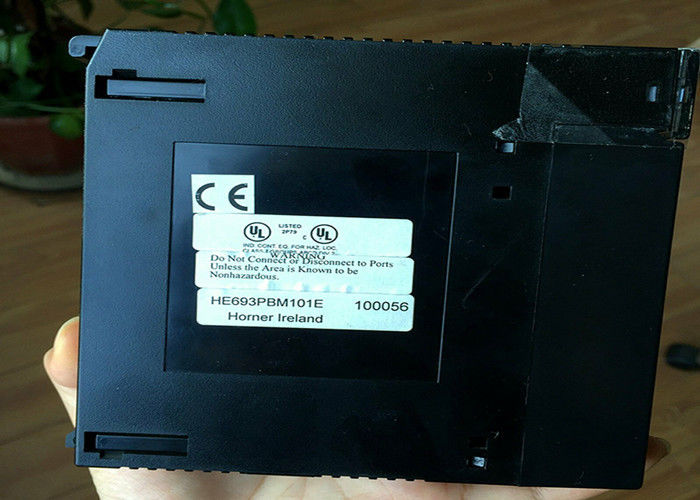

Horner Automation HE693PBM101E Horner Electric Automation Product PLC I/O

Horner Automation HE693PBM101E Horner Electric Automation Product PLC I/O

Product description

The HE693PBM101 Profibus Master Module from GE Fanuc acts as a Profibus DP network master for Series 90-30 products. It can control a maximum of 64 slave devices and operates at a 24 megahertz frequency. It contains a 9-pin Profibus DP connector, a standard 9-pin RS-232 connector, and three visible LEDs to indicate master states and fault conditions. This module sends the PLC processor 64 bits of diagnosis and 64 bits of status information.

Technical Specifications

The HE693PBM101 is a Profibus Master module by Emerson - GE Fanuc. It operates as a Profibus Decentralized Periphery (DP) network master. This module can control up to 64 slave devices, including input/output devices, drives, transmitters, and much more. It also enables Profibus-based communication across modules in various programmable logic controller racks. This module is designed to be inserted into the Series 90-30 local slot. It operates with a frequency of 24 megahertz. This module comes with a Profibus DP port. This port has a 9-pin D-sub plug connector. This D-sub connector allows establishing a physical connection between the slaves and the master. This Profibus master module also has an embedded RS-232 serial port that is used to upgrade the firmware of the slave. This service port is equipped with a typical 9-pin RS-232 connector.

Part number HE693PBM101 has three (3) LEDs, or light emitting diodes, that are visible to users. These include the OK, POWER, and RUN LEDs. The user can observe 6 possible combinations of these LEDs. Each combination will represent the different states of the master. For instance, when all LEDs are green, it indicates that the module is receiving good power and valid configuration from the CPU. Moreover, the module is also communicating properly over the Profibus-DP network. To determine the fault condition of the module, count the green pulses of the RUN LED in each cycle. This module transmits 64 bits of diagnosis and 64 bits of status information to the PLC processor. It requires 4 watts of power at 5 volts direct current.
