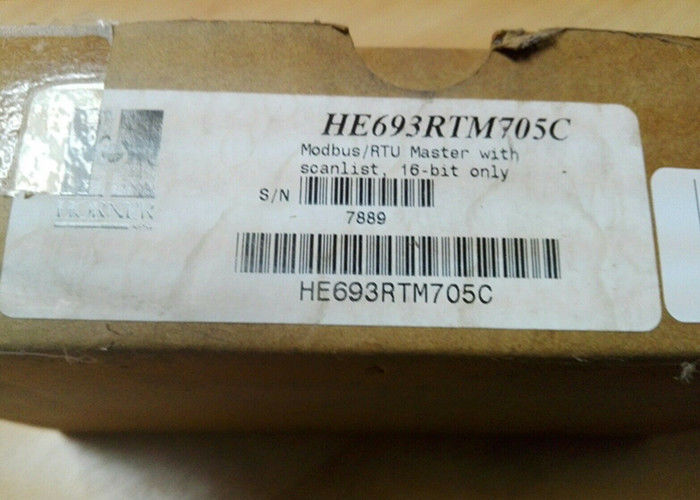

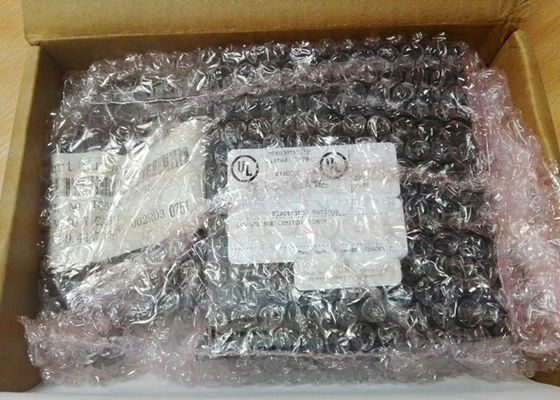

GE Fanuc Communication Module HE693RTM705C GE Fanuc Communication Module

GE Fanuc Communication Module HE693RTM705C GE Fanuc Communication Module

Product description

The HE693RTM705-01 is a Horner RTU Master for the OIU037. The RTM705-01 is an optimized RTU/Modbus master that runs on a Series 90-30 PCM-based platform and manages communications between several multi-dropped OIU037s and a Series 90-30 PLC. Communications is typically through RS-485 serial single or dual twisted pair and provides a pseudo peer-to-peer method that provides transfer of Series 90-30 data to and from each OIU037. Maximum use of the serial protocol bandwidth is realized by broadcasting up to 2000 points of 90-30 discrete data (%I, %Q, etc.) and up to 250 points of 90-30 analog data (%R, %AQ, etc.) on a regular basis. Data changes at each OIU037 are queued and returned to the RTU Master in response to a Read_Analog_Input command. The Read_Analog_Input command is transmitted by the master to each OIU037 in a poll manner.

Technical Specifications

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.The HE693RTM705 provides two Modbus/RTU master channels which may be controlled by the 90-30/90-70 to access data from remote slave RTU’s. Each channel can be individually programmed for dial-in, dial out, radio modem, multi-drop (RS422/RS485) and direct connection (RS232) operation. Each channel can send or receive Analog or Discrete data using standard RTU commands ( i.e. Read Coil ). Multiple commands can be sent to each slave with each command requesting either a single point or multiple contiguous points up to 250 bytes. Data to be sent or stored is placed in the 90-30/90-70 reference data tables.
