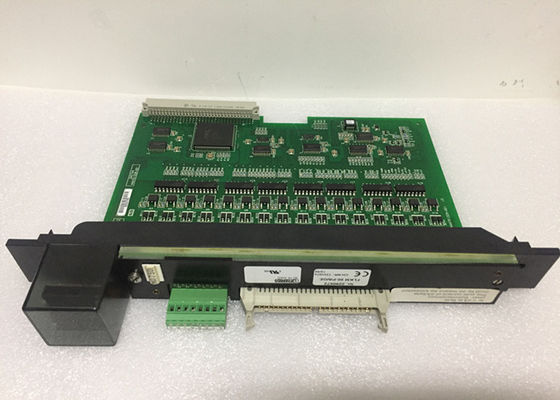

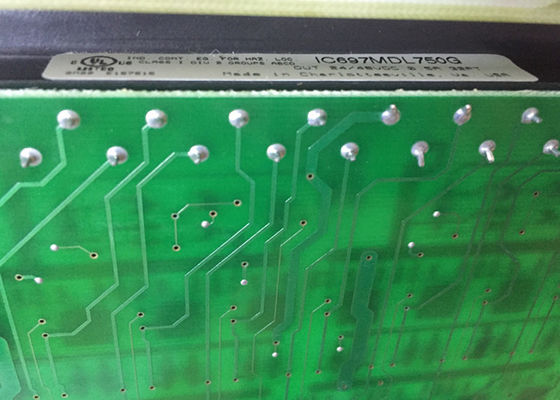

GE IC697 MDL750G 24/48 Volt DC 0.5 Ampere Output Module For The GE Fanuc 90-70 Series PLC.

GE IC697 MDL750G 24/48 Volt DC 0.5 Ampere Output Module for the GE Fanuc 90-70 Series PLC.


Product description

The GE Fanuc90-70 Series module IC697MDL750 is a discrete output module that is capable of converting a potentially high influx of input into the desired output. The module hosts 32 outlets that are sorted into four fused assortments of 8 points each. Each of these points is rated at 24/48 Volts and a long-term current of 0.5 amperes. Each of the groups populated by 8 points has an overall capacity of 2 amperes after making allowance for dissipative factors. Depending on its usage time and rating, each IC697MDL750 also has an ephemeral capability of directing large input currents. The output current of an IC697MDL750 is capable of powering motor starters, solenoids, indicators and other such devices.

The LED lights present on the top of the IC697MDL750 are indicative of the condition prevalent at different locations on the internal logic circuit. Additionally, the on and off status of the outlet points are also indicated by LED on the IC697MDL750.

An IC697MDL750 module is furnished with a key that is included in the packaging. This key is to be used to alter the specifications of the slot that plays host to the IC697MDL750. This customization of the slot is aimed at preventing it from being used improperly. The key is affixed during the initial instalment of the IC697MDL750 and remains in that position during any subsequent removal of the module. However, this appendage can be easily uninstalled if the need arises.

Several features of the IC697MDL750 are subject to the configuration by the user. The first such characteristic is the input and output references of the module that can be customized using a personal computer that runs a Windows or MS-DOS software. This process is conducted through an SNP port or Ethernet TCP/IP. Furthermore, the outlets of the IC697MDL750 can be manipulated by the user to either turn off of remain in their earlier state.

The IC697MDL750 is a Digital output module that is part of the Series 9-70 Programmable Logic Controller (PLC), formerly manufactured by GE Fanuc now under Emerson Automation. This module is a single slot module that mounts to a vacant slot of the Series 90-70 baseplate. It supports local I/O operation or as part of a larger distributed I/O architecture. The IC697MDL750 mainly features Thirty-Two (32) discrete output channels that deliver an output voltage range of 20-60 VDC with a rated voltage of 24 / 48 VDC. It can be used to energize a variety of electrical loads, to implement a manual or automated operation. Compatible devices include motor starters, solenoid-actuated devices, and Pilot lamps. Each channel of the module delivers an output current of 0.5 Amperes with a 2.0 Ampere rating per output group. This output module has Four (4) groups of Eight (8) channels each group. Module isolation is provided up to group isolation only with an isolation rating of 5000 Volts between groups while each output channel has rated backplane isolation of 1500 Volts. This module has a maximum inrush current of 10 Amperes with a duration of 20 ms. The maximum output voltage drop is 1 Volt while individual channel response time is at a maximum delay of 1 ms. Each channel also exhibits a leakage current amounting to 1 mA. The IC697MDL750 has a current draw of 0.25 Ampere and is designed incompatibility with VME standard C.1. This module comes with a high-density removable terminal block ideally used with wire bundles. Each terminal of the removable terminal accepts a maximum of Two (2) wires with a size of #22 AWG (0.36 mm2) through #14 AWG (2.10 mm2).

The discrete output module that is known as the IC697MDL750 output module is designed and manufactured by GE Fanuc, a well-known producer of high-quality and robust industrial components. The module is part of GE Series 90-70 and it complies with the regulations set by standard C.1 of the VME standards. The module requires 0.25 Amps of current from the 5 Volts bus and it features 500 Volts of isolation voltage between output groups. Isolation voltage for the outputs on the backplane is 1500 Volts. The IC697MDL750 output module has a total of 32 outputs arranged in equal isolated groups. The module features 10 Amps of inrush current for 20 milliseconds and 1 millisecond of response time (on/off).

The IC697MDL750 output module has only 1 Volt (2 Ohms) of rated voltage drop for its outputs and it has an output voltage range of 20 to 60 Volts DC. The operating voltage of the unit is 24 to 48 Volts DC. The installation process of the module is easy and the wiring process is simple as well. The design of the module allows for effortless maintenance and its construction with a mechanical key leaves no room for error. Due to this key, any modules that are not the correct type of module will not fit into the slot reserved for the IC697MDL750 module. The module has a current rating of 0.5 Amps per point and the maximum current for the input group is 2 Amps. The module is protected from voltage surges and it operates perfectly with devices that have a steady-state current of 100 to 500 milliAmps. The repetition rate of these devices is up to 5 Hertz for the lowest current level of the steady-state.

Specifications
