Product description

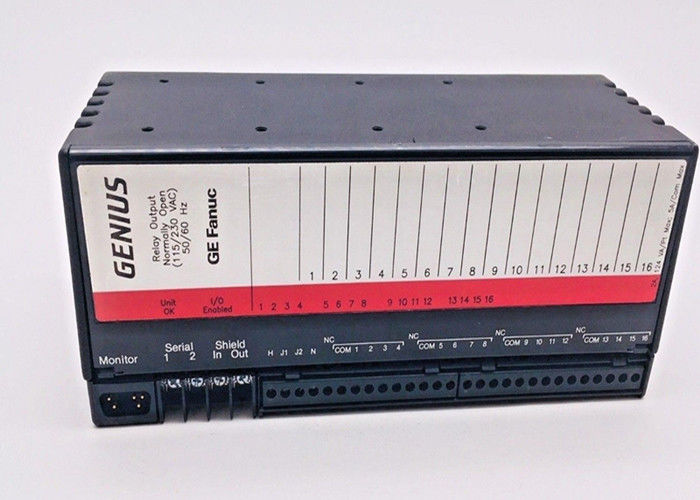

The IC660EBR101 electronics assembly is a product of GE Fanuc. It is manufactured as a member of the GE Genius I/O block series. The IC660EBR101 electronics assembly is part of a relay output block that is designed to provide 16 output circuits in 4 individual groups for each of the relay-type outputs. The IC660EBR101 electronics assembly operates on 115 Volts or 230 Volts AC, and it can work with 2 different types of relay output blocks, including the IC660BBR100 relay output block, which has the relays that are normally closed, and the IC660BBR101 relay output block with relays that are normally open. Each group of the IC660EBR101 electronics assembly's outputs on the relay block can operate on either DC or AC power.
The GE Fanuc IC660EBR101 electronics assembly has a group isolation rating of 1500 Volts, and the relay blocks are well-suited for a variety of low-power control applications and compatible with indicator devices like contactors, lamps, and relays. The output devices are capable of operating at 250 Volts AC or 5 to 220 Volts DC with a switching power of up to 125 Volts-Amps or 60 Watts. Some of the notable configurable features of the IC660EBR101 electronics assembly include the bus switching control module, the redundancy type CPU, the output power-up default settings, and the output "hold last state" feature. It features LED indicators that indicate the correct CPU communications and block operation functions. It also has individual LED indicators that show the commanded output of the state of every single coil. The IC660EBR101 electronics assembly is versatile and compatible with all of the GE Fanuc Genius I/O devices and also with the QBIM modules or PCIM devices.

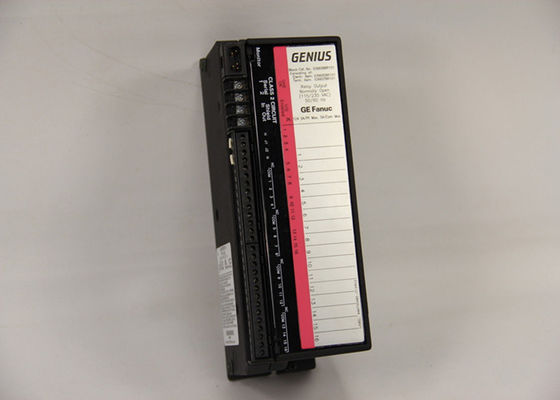

The GE Fanuc IC660BBR101 output block is a normally open output block from the GE Fanuc Genius I-O series. The IC660BBR101 output block has 16 outputs. These outputs are divided into 4 groups, and each output can be configured for operation with AC or DC voltage. This output block is known as a normally open output block because its contacts are normally open. It can be used in a CPU redundancy setup in a Genius I-O PLC. The relay that the IC660BBR101 output block uses is a fixed coil and moving armature type of relay. It is well-suited for machine control applications and for working with different types of low-power devices. It can tolerate an operating frequency in the range of 47 to 63 Hertz.
The GE Fanuc Genius I-O IC660BBR101 16-channel normally open output block is suitable for use in all standard, non-hazardous industrial environments. It can tolerate atmospheres with relative humidity levels between 5% and 95% in operation and in storage, as long as the humidity never condenses. The operating temperature range for the IC660BBR101 16-channel output block is between 0 degrees Celsius and 60 degrees Celsius or 32 degrees Fahrenheit and 140 degrees Fahrenheit. When it is not being used, this 16-channel normally open output block can tolerate an ambient temperature range between -40 degrees Celsius and 100 degrees Celsius or -40 degrees Fahrenheit and 212 degrees Fahrenheit. Devices that are compatible with the IC660BBR101 16-channel output block are devices with voltage ranges of 5 to 250 Volts AC or of 5 to 220 Volts DC.
