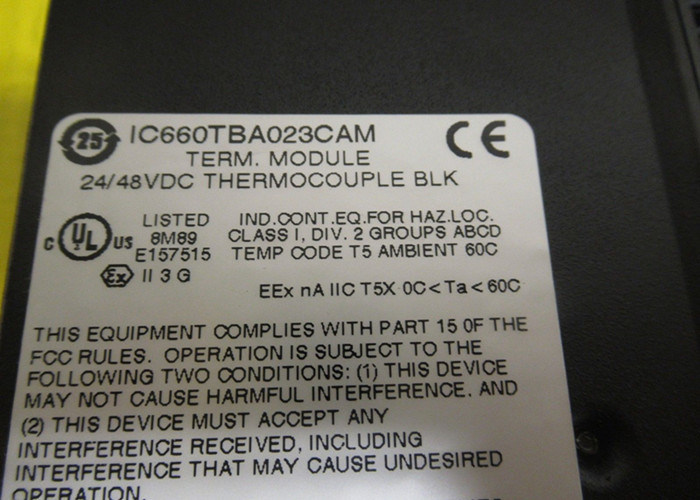

IC660TBA023 GE Fanuc terminal assembly,thermocouple block with a voltage rating of 24/48 Volts DC

The IC660TBA023 device is a GE Fanuc terminal assembly. It is a thermocouple block with a voltage rating of 24/48 Volts DC. There are a total of 16 circuits available in the block. It is small in size and this saves a lot of panel space. Its dimension are a height of 8.83 inches, a width 3.50 inches, and a depth of 3.94 inches. It weighs approximately 4 pounds. With normal operation, the block dissipates 9 Watts of heat. The front of the IC660TBA023 terminal assembly has 2 LEDs. One is the "Unit OK" LED and one is the "I/O Enabled" LED that both illuminate green for normal operation. The ambient temperature should be set between 0 and 60 degrees Celsius with a maximum relative humidity level of 95%, non-condensing. The isolation voltage between the individual blocks is 1500 Volts for 1 minute.

The IC660TBA023 terminal assembly is equipped with 3 pairs of inputs. Each of the input signals is changed into a common amplifier by using a voltage-to-frequency converter. The frequency of the output has a count of 400 milliseconds of gate time. A multiplexer is present that inspects thermocouple for input times. The input of the cold junction is measured and it is stored. The IC660TBA023 terminal assembly can be connected to a handheld monitoring device that can be used to make adjustments to the module. A monitor port is present on the top of the module that can be used to connect it with a monitoring device. The operators can get alerts about different events from the alarms set in the module. Each input can be configured for a low alarm and a high alarm


Technical Specifications
