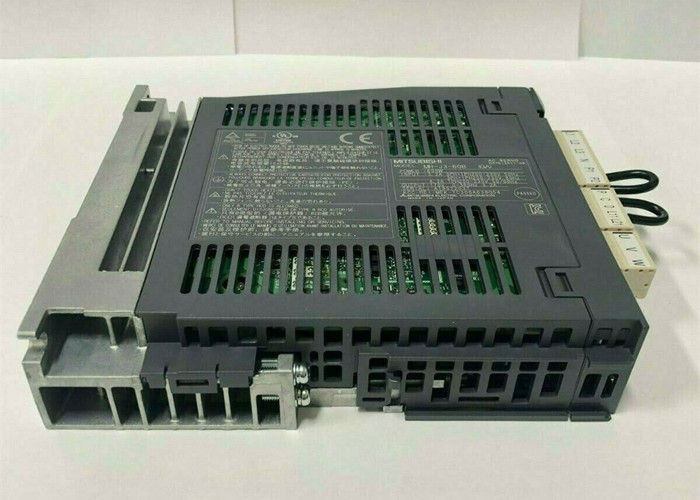

MITSUBISHI 600W MR-J3-60B-RJ004U5 AC Servo Motor Drive 3.2A Rated Power 170V Voltage
Product Description:
The MR-J3 series of servo drives offer cutting-edge technology and user-friendly operation while maintaining a compact design. Advanced features like a vibration suppression system and real-time autotuning guarantee precise control of positioning with little delay during installation. Plus, the slim 40% size reduction amplifiers are a notable improvement compared to previous units.
Available in three different versions, there is an MR-J3 servo drive suitable for almost every situation. The MR-J3-A line is perfect for conventional system applications and capable of regulating speed, torque, and position with ease. For even more versatility, MR-J3-A models with an EtherCAT option are available. The MR-J3-B series is made for multi-axis movements and integration with networked automation systems, while a servo amplifier with built-in positioning (MR-J3-T) is also available.
Mitsubishi Electric's Motion Control and positioning control systems can easily configure themselves with the MR-J3 series via plug and play. These units are connected through a high-speed optical SSCNET III network with a cycle period of just 0.44 milliseconds. At present, the MR-J3 is available with outputs ranging from 50W to 55kW, with additional units featuring higher outputs set to join the line soon.
Specification:
| Description |
MR-J3-60B-RJ004U5 is a Drives-AC Servo produced by Mitsubishi |
| Servomotor Type |
MR-J3 AC Servo Amplifier |
| Phase |
3 |
| Supply Voltage |
200 to 230 V ac |
| Power |
600w |
| Input |
3.2A 3PH+1PH 200-230V 50Hz
3PH+1PH 200-130V 60Hz
4.3A 1PH 200-130V 50/60Hz
|
| Output |
170V 0-360Hz 3.2A |
Servo Amplifiers
MR-J3-A/B/T
(200 V Type) |
10A
10B
10T |
20A
20B
20T |
40A
40B
40T |
60A
60B
60T |
70A
70B
70T |
100A
100B
100T |
200A
200B
200T |
350A
350B
350T |
500A
500B
500T |
700A
700B
700T |
| Power supply |
Voltage/frequency* |
3-phase 200-230V AC, 50/60Hz
1-phase 200-230V AC, 50/60Hz |
3-phase 200-230V AC, 50/60Hz |
| Permissible voltage fluctuation |
3-phase 200-230V AC: 170-253V AC
1-phase 230V AC: 207-253V AC |
3-phase 170-253V AC |
| Permissible frequency fluctuation |
Max. ±5% |
| Control system |
Sinusoidal PWM control / current control system |
| Dynamic brake |
Built-in |
| Protective functions |
Overcurrent shutdown, regeneration overvoltage shutdown, overload shutdown (electronic thermal relay), servo motor overheating protection, encoder fault protection, regeneration fault protection, undervoltage / sudden power outage protection, overspeed protection, excess error protection |
| Cooling / protection rating |
Self-cooling, open (IP00) |
Fan cooling, open (IP00) |
| Environment |
Ambient temperature |
Operation: 0-55°C (non-condensing);
Storage: -20-65 °C (non-condensing) |
| Relative humidity |
Operation: 90% RH max. (non-condensing);
Storage: 90% RH max. (non-condensing) |
| Elevation |
Max. 1000m above sea-level |
| Vibration |
Max. 5.9m/s² (0.6G) |
| Weight [kg] |
0.8 |
0.8 |
1.0 |
1.0 |
1.4 |
1.4 |
2.3 |
2.3 |
4.6 |
6.2 |
ervo Amplifiers
MR-J3-A4/B4/T4
(400 V Type) |
60A4
60B4
60T4 |
100A4
100B4
100T4 |
200A4
200B4
200T4 |
350A4
350B4
350T4 |
500A4
500B4
500T4 |
700A4
700B4
700T4 |
11KA4
11KB4 |
15KA4
15KB4 |
22KA4
22KB4 |
| Power supply |
Voltage/frequency* |
3-phase 380-480V AC, 50/60Hz |
| Permissible voltage fluctuation |
3-phase 323-528V AC, 50/60Hz |
| Permissible frequency fluctuation |
Max. ±5% |
| Control system |
Sinusoidal PWM control / current control system |
| Dynamic brake |
Built-in |
External option |
| Protective functions |
Overcurrent shutdown, regeneration overvoltage shutdown, overload shutdown (electronic thermal relay), servo motor overheating protection, encoder fault protection, regeneration fault protection, undervoltage / sudden power outage protection, overspeed protection, excess error protection |
| Cooling / protection rating |
Self-cooling, open (IP00) |
Fan cooling, open (IP00) |
| Environment |
Ambient temperature |
Operation: 0-55°C (non-condensing);
Storage: -20-65 °C (non-condensing) |
| Relative humidity |
Operation: 90% RH max. (non-condensing);
Storage: 90% RH max. (non-condensing) |
| Elevation |
Max. 1000m above sea-level |
| Vibration |
Max. 5.9m/s² (0.6G) |
| Weight [kg] |
1.7 |
1.7 |
2.1 |
4.6 |
4.6 |
6.2 |
18 |
18 |
19 |
Highlights
-
High-speed controllers for ultra-short positioning times; average speed frequency response 2100Hz
-
High-resolution encoders for maximum speed constancy (18 bits 262,144 P/rev)
-
Advanced vibration suppression for outstanding adaptation to machine requirements
-
Autotuning for extremely fast setup and installation
-
Optimum cost/benefit ratio
-
Absolute position encoder included as standard equipment
-
Minimum wiring overheads thanks to Plug & Play configuration and automatic motor identification
-
Supports global standards
