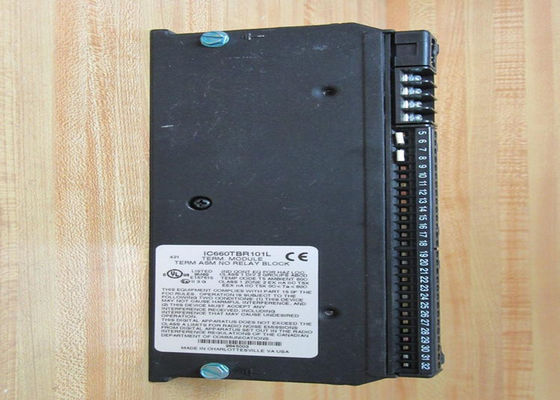

The GE Fanuc IC660TBR101 assembly is a terminal assembly for Genius I/O devices

The GE Fanuc IC660TBR101 assembly is a terminal assembly for Genius I/O devices. The IC660TBR101 terminal assembly is compatible with the IC660BBR101 I/O block.

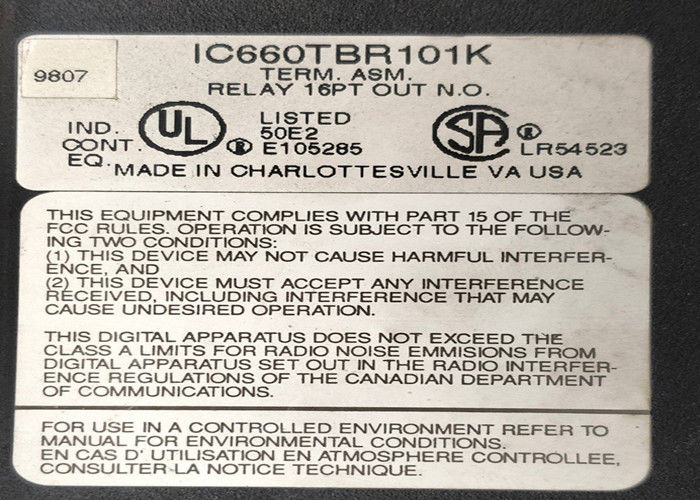

The IC660TBR101 terminal assembly is a terminal assembly for a GE Fanuc Genius I/O block with normally-open relays that has the catalog number IC660BBR101. A terminal block like the IC660TBR101 terminal assembly is 1 of the 2 primary components of Genius I/O blocks and the other component is the electronics assembly. The IC660TBR101 terminal assembly forms the block base and all of the field wiring connections are made to it. The configuration data of the Genius I/O block is stored in the terminal assembly and therefore it is not necessary to reconfigure the I/O block if the electronics assembly is replaced. The terminal assembly is mechanically and electrically keyed to accept an electronics assembly of the same type in terms of voltage, wiring configuration, and number of circuits.

The other block component, the electronics assembly, houses the I/O, active components, and communication circuits of the I/O blocks. The electronics assembly can be replaced without disturbing the field wiring. The I/O block for which the IC660TBR101 terminal assembly is designed, i.e. the ICC660BBR101 I/O block, is a 16-circuit relay output block. The outputs are separated into 4 isolated groups of 4 circuits each. The I/O block weighs 4 pounds and it measures approximately 224 x 35 x 39 millimeters. The recommended range of the operating temperature for the block is from 0 to 60 degrees Celsius. For transportation and storage, the recommended range for the ambient temperature is from -40 to 100 degrees Celsius. The current requirement of the I/O block is 87 milliamps at 115 Volts AC. The AC supply voltage ranges are 93 to 132 Volts AC and 185 to 265 Volts AC.

 Technical Specifications
