The IS200BAIAH1B is a Bridge Application Interface Board used in GE Innovation Series Drive Systems

The IS200BAIAH1B is designed to function as a bridge application interface board in Innovation Series Drive Systems. This board provides earth-ground reference and isolation for signal inputs from terminal boards. Each board is designed with an onboard EEPROM containing firmware not intended for removal or field programming.

Hardware Tips and Specifications

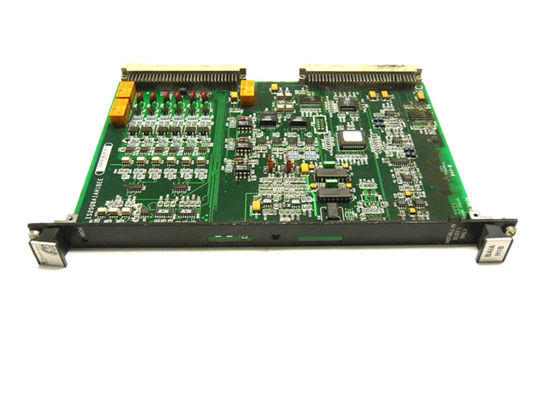

The IS200BAIAH1B is built with a narrow black front panel. This panel includes a single green LED that is marked “IMOK.” The panel also carries the board number and the warning “Install in Slot 1 only.” The IS200BAIAH1B is an Innovation series board, which is designed to be placed into a specific rack slot. This board can be damaged if it is installed into the improper rack slot. Because of this damage risk, it is important too to consider PCB dimensions before making a purchase decision. This particular printed circuit board comes revised with roughly-measured dimensions of 12 inches lengthwise by 9 inches wide. The thickness of this PCB is no greater than an inch and a half.

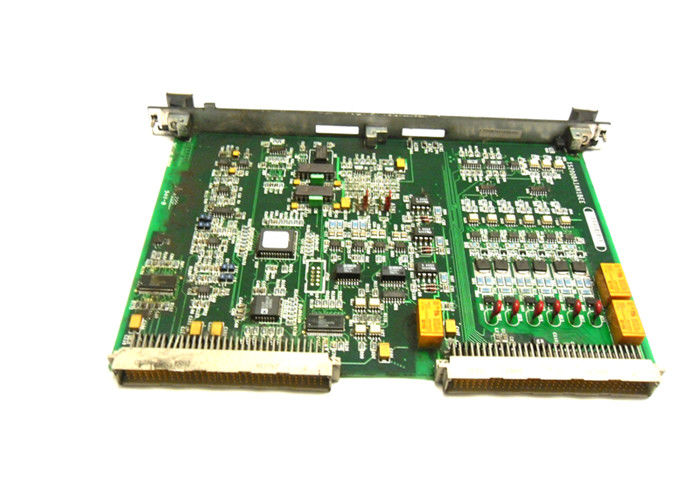

The IS200BAIAH1B has three relays, six varistors, four jumper switches, three test points, and several integrated circuits. The board has two backplane connectors located on one edge. These backplane connectors are labeled as Pancon 106-128-023 connectors, which have a generally low market availability. Jumpers should be placed in either the VIN position or the 4-20 mA position. The aforementioned black front panel of the IS200BAIAH1B printed circuit board has openings in two central positions, allowing for user access of board parts labeled TP1 TP2 and TP3; three different available testing points.

A number of designations printed on the face of the IS200BAIAH1B may provide the prospective buyer with clues into specifications, as online manual information for this circuit board is extremely limited. Some of the general printed labels visible on the base plate of this PCB include:

• IS200BAIAH1
• BAIA#B 6DA02
• PVC-3 1598
• T50
• F36

A wrist grounding strap should be worn at all times when handling the IS200BAIAH1B, considering this board's extreme sensitivity to static electricity. Our team will use an anti-static wrap to protect the IS200BAIAH1B during transit. Please follow all installation procedures as written in manuals and data sheets from the manufacturer. If these have not been retained, refer to GE publication GEI-100268 for information.
