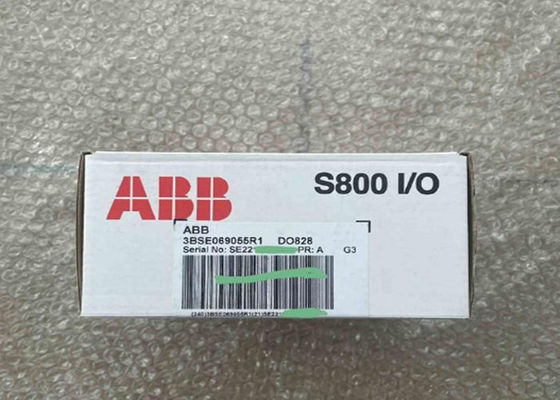

General Information
Product ID:
3BSE069055R1
ABB Type Designation:
DO828
Catalog Description:

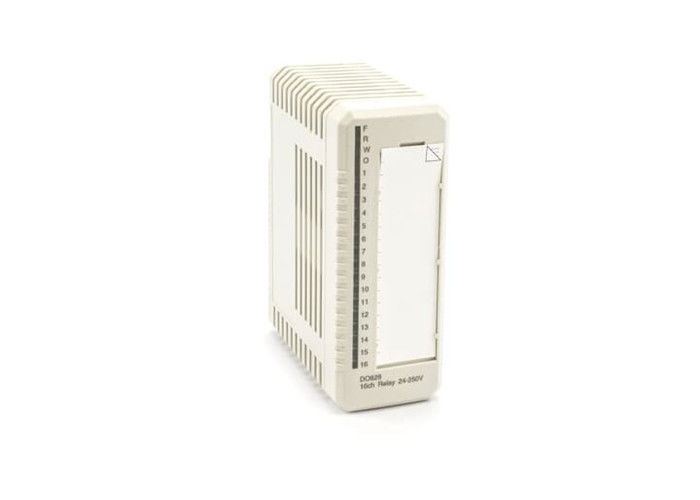

DO828 Digital Output, Relay 16 ch
Long Description:
Individually galvanic isolated channels. 5-250V a.c and 5-125V d.c, max 2A. Use Module Termination Unit TU851.
Specifications:
Digital Output, Relay 16 ch: This module has 16 channels for digital outputs using relays.
Individually Galvanic Isolated Channels: Each channel is electrically isolated from each other to prevent interference and ensure reliability.
Supported Voltage Ranges:
AC Voltage: 5V to 250V AC
DC Voltage: 5V to 125V DC
Maximum Current: Each channel can handle a maximum current of 2A.
Additional Information:
Module Termination Unit (TU851): This is likely the termination unit or connector module that interfaces with the DO828 module, providing a standardized connection interface.
Based on this information, the DO828 is a digital output module with 16 relay channels, each capable of switching high currents (up to 2A) at various voltages (AC and DC). It's designed for industrial applications where reliable and isolated digital outputs are required, such as in control systems for machinery, process automation, or similar industrial environments.
Additional Information
Medium Description:
Individually galvanic isolated channels. 5-250V a.c and 5-125V d.c, max 2A. Use Module Termination Unit TU851.
Product Type:
I-O_Module
Ordering
HS Code:
853890-- Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36 or 85.37.- Other
Customs Tariff Number:
85389099
Dimensions
Product Net Depth / Length:
102 mm
Product Net Height:
119 mm
Product Net Width:
45 mm
Product Net Weight:
0.3 kg
Technical
Channel Type:
DI
Number of Output Channels:
16
Environmental
RoHS Status:
Following EU Directive 2011/65/EU
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
Number of Batteries:
0
SCIP:
a8615c5b-ebb7-4800-8612-541815cd5ca9 Sweden (SE)
