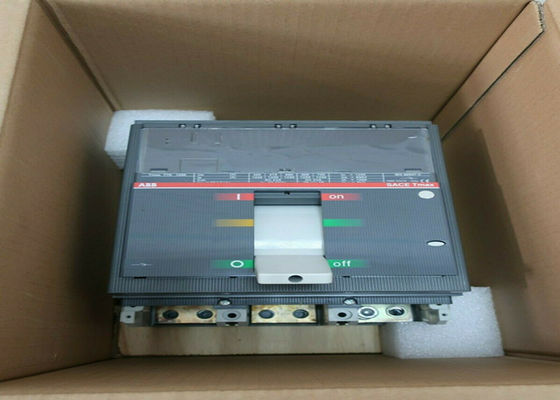

T7D 1250 3p F F SWITCH-DISCONNECTOR TMAX T7D 1250 FIXED THREE-POLE WITH FRONT


General Information
Extended Product Type:
T7D 1250 3p F F
Product ID:
1SDA062036R1
EAN:
8015644645748
Catalog Description:
T7D 1250 3p F F
Long Description:
SWITCH-DISCONNECTOR TMAX T7D 1250 FIXED THREE-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM


The term "T7D 1250 3p F F" refers to a specific type of switch-disconnector from the TMAX T7D series, with the following details:

• T7D: This indicates the model or series of the switch-disconnector.
• 1250: This likely refers to the current rating of the switch-disconnector, typically in amperes (A). So, "1250" would indicate a current rating of 1250 A.
• 3p: This denotes that it is a three-pole device, meaning it can disconnect all three phases of a circuit simultaneously.
• F F: These could stand for "Fixed" and "Front Terminals," respectively.

Therefore, "T7D 1250 3p F F" describes a three-pole switch-disconnector from the TMAX T7D series, rated for 1250 A, with fixed mounting and front terminals for electrical connections. The "lever operating mechanism" mentioned indicates that it is operated manually using a lever mechanism.


Environmental

Environmental Information:
9AKK10103A1059
9AKK108467A6707

Material Compliance

REACH Declaration:
9AKK108466A1425
RoHS Information:
9AKK108466A1424
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
9AKK108467A5658
Toxic Substances Control Act - TSCA:
9AKK108467A8326
SCIP:
d9b62682-cfde-4251-a59d-a9bcda9dba85 Italy (IT)
Simplified SCIP:
02adbdc9-4648-46fc-9c4c-35bc4a7a6997 Germany (DE)
876c9aa7-a98b-4626-9d79-bd6b57bb87ae Netherlands (NL)
acbff9fa-f2aa-42c1-ac8b-0fbec7467ec4 Croatia (HR)
35135376-a08e-4df2-bcc3-4a038b177f93 Finland (FI)
2e7172cf-52b6-49f7-a107-dbc5e916720f Denmark (DK)
03918c47-c356-4751-8f9c-b61d34a24e53 Germany (DE)
34a5a35e-3846-4fd1-b484-4755fd6f8cd5 Czech Republic (CZ)
5e9c8721-9174-47f7-a4a4-95a127e15733 Poland (PL)
d6771c2a-4bfb-4dfc-9480-2036f4766bbc Netherlands (NL)
b87538d6-62ed-4910-9e7d-079288d75e4a Estonia (EE)
Show more



Ordering

EAN:
8015644645748
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090



Dimensions

Product Net Width:
210 mm
Product Net Height:
268 mm
Product Net Depth / Length:
154 mm
Product Net Weight:
9.7 kg



Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
280 mm
Package Level 1 Height:
350 mm
Package Level 1 Depth / Length:
360 mm
Package Level 1 Gross Weight:
11.2 kg
Package Level 1 EAN:
8015644645748

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Switch Disconnector
Suitable For:
T7
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F



Technical

Number of Poles:
3
Power Loss:
at Rated Operating Conditions per Pole 47 W
Rated Operational Voltage:
690 V AC
750 V DC
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 20 A
Rated Uninterrupted Current (Iu):
1250 A
Short-Circuit Performance Level:
D
Standards:
IEC
Sub-type:
T7
Terminal Connection Type:
Fixed Circuit-Breakers
Front

Certificates and Declarations

ATEX Certificate:
No certification needed
Data Sheet, Technical Information:
1SDC210015D0201
Declaration of Conformity - CE:
9AKK106713A5537
UL Certificate:
No certification needed
VDE Certificate:
No certification needed
Instructions and Manuals:
1SDC210015D0201



Classifications
ETIM 8:
EC000216 - Switch disconnector
ETIM 9:
EC000216 - Switch disconnector (low voltage)
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27371403
