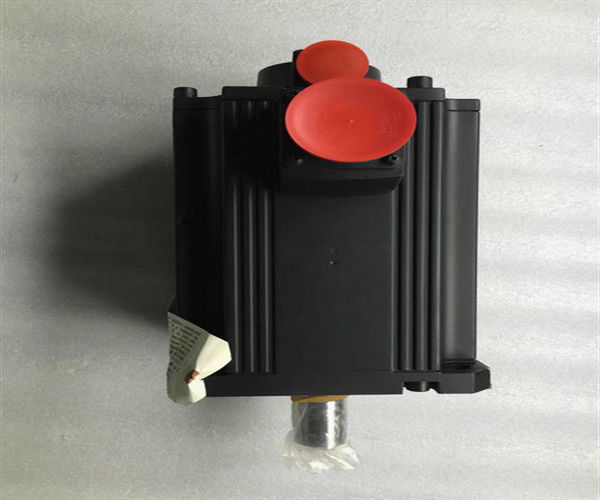

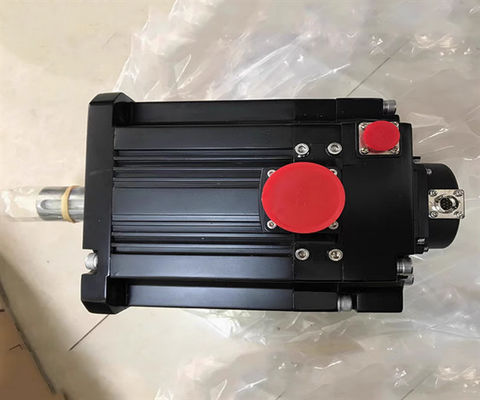

Mitsubishi HC-SFS152 200W Servo Motor for Medium Inertia and High Precision

Servo Motor Mitsubishi HC-SFS152 Mitsubishi Electric Medium Inertia

Product Descriptions of HC-SFS152

The HC-SFS152 servo motor by Mitsubishi Electric is an AC medium-inertia and middle-capacity servo motor. This motor comes with a straight shaft and a built-in absolute feedback encoder. It is part of the Mitsubishi MELSERVO general-purpose servo motor series. The primary purpose of the HC-SFS152 servo motor is to serve as a motion control solution in automation and robotics systems. It functions as a highly responsive and accurate motor that provides precise rotational motion in response to control signals. The HC-SFS152 servo motor’s built-in absolute feedback encoder has a resolution rating of 17 bits (equivalent to 131,072 pulses per revolution), and this encoder ensures precise and reliable positional feedback, enabling the motor to maintain accuracy even during extended operation. The HC-SFS152 servo motor operates with an output power rating of 1500 W (1.5 kW) and a rated current of 9 A. Its rated torque is 7.16 Nm and its maximum torque rating is 21.6 A. The HC-SFS152 servo motor is 200V-compatible. The rated speed of the HC-SFS152 servo motor is 2000 rpm, and the motor’s maximum speed is 3000 rpm. Its enclosure has an IP65 ingress protection rating to ensure safe and reliable operation in challenging industrial environments. The enclosure protects the motor from dust, debris, and water. Additionally, the HC-SFS152 motor is designed to operate within an ambient temperature range of 0°C to +40°C. It is part of the Class F insulation class. The HC-SFS152 servo motor is compact and it can easily integrate into different systems without occupying excessive space.

The HC-SFS152 servo motor, manufactured by Mitsubishi Electric, is an AC medium-inertia and medium-capacity servo motor from the MELSERVO series. It features a straight shaft and a built-in absolute feedback encoder. The HC-SFS152 servo motor’s built-in absolute feedback encoder has a rated resolution of 131,072 pulses per revolution. This servo motor is 200V-compatible.

Mitsubishi Electric's HC-SFS152 AC servo motor is a powerful device made for precise control and positioning. This servo motor is suitable for a wide range of industrial applications thanks to its straight shaft design, integrated absolute feedback encoder, and oil seal. Because of the nice harmony it strikes between speed and torque needs, applications using this motor are rather broad. The HC-SFS152 servo motor is capable of tremendous performance thanks to its 1500W (1.5kW) output and 9A rated current. Fast and accurate motion control is possible because of its rated rotational speed of 2000rpm and maximum speed of 3000rpm. The motor is capable of producing a maximum torque of 21.6Nm in addition to its rated torque of 7.16Nm, so it can handle tough jobs with ease. The HC-SFS152's feedback encoder can measure up to 17 bits, which is the equivalent of 131,072 pulses every rotation. This allows for pinpoint placement and precise manipulation. The motor is protected from dust and water ingress to an IP65 standard, allowing it to function in harsh conditions. The motor's compact size (H176mm x W130mm x D225mm) and universal 130x130mm flange mounting mode make it suitable for use in a wide range of applications. With a maximum current of 27A, the HC-SFS152 servo motor requires a supply voltage of 200Vac to function. A 176mm height, 130mm width, and 225mm depth are its net dimensions. The motor may be used in environments where the air temperature is between 0 and 40 degrees Celsius, and it can be kept in environments where the temperature is between -15 and 70 degrees Celsius. For demanding industrial applications that need precise control and positioning, the Mitsubishi Electric HC-SFS152 AC servo motor is an excellent option due to its potential, precision, and dependability.

• Servo Amplifier Model: MR-J2S-200A/B
• Motor series: Medium inertia, medium capacity
• Power Facility Capacity [kVA]: 2.5

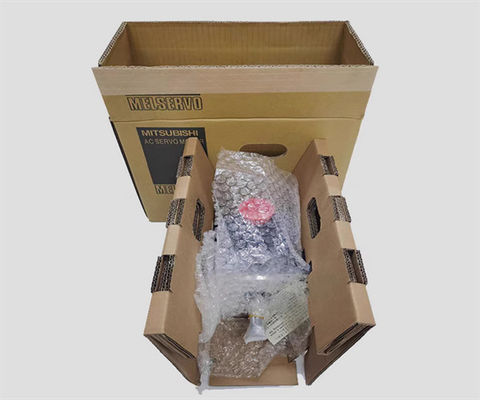

• Shipping Weight: 12 Kg
