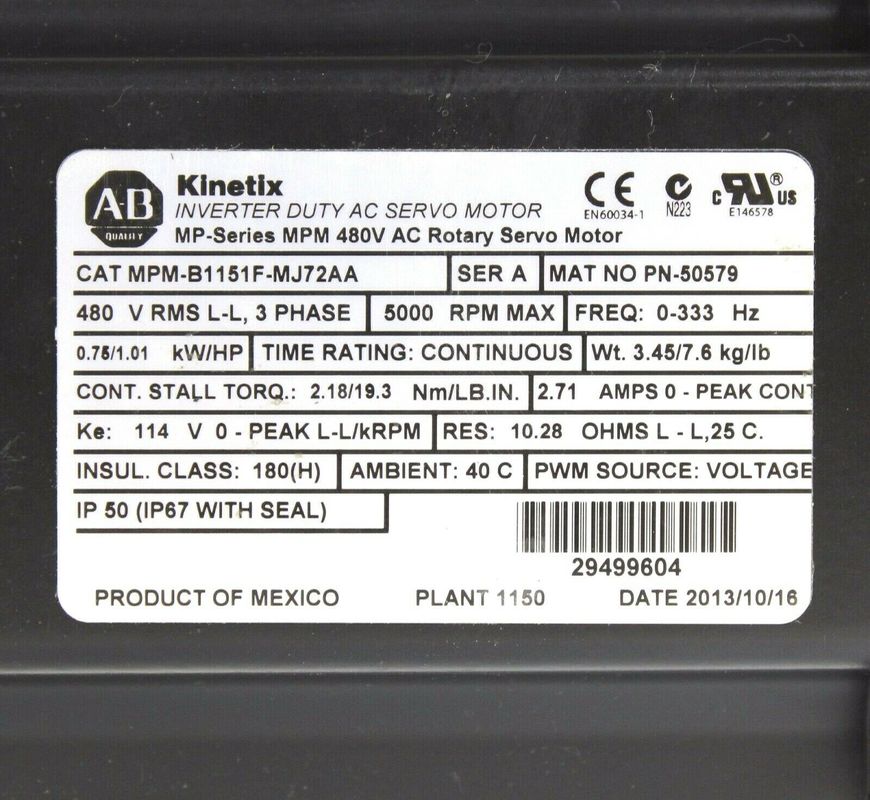

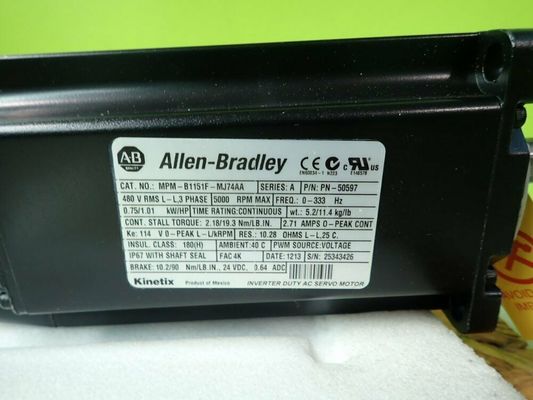

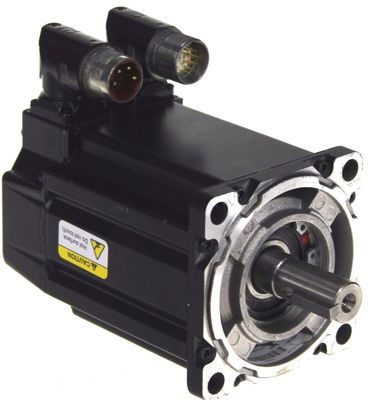

ALLEN-BRADLEY MPM-B1151F-MJ72AA MP-Series MPM 480V AC Rotary Servo Motor

Product Description:MPM-B1151F-MJ72AA

The Allen-Bradley MPM-B1151F-MJ72AA is a Permanent Magnet Synchronous Motor (PMSM) from Rockwell Automation’s MPM Series of high-performance motors. These motors are designed to meet the demanding requirements of motion control applications in various industrial sectors, providing precise control, high torque density, and energy efficiency. The MPM-B1151F-MJ72AA is one of the smaller yet robust motors in the series, making it well-suited for applications where compact size and high performance are essential.

Features:MPM-B1151F-MJ72AA

• Permanent Magnet Synchronous Motor Design:

  • The MPM-B1151F-MJ72AA uses a permanent magnet rotor, which increases torque density and energy efficiency. This means that it can produce more torque with less electrical input, making it ideal for high-efficiency systems.

• Compact, High-Torque Output:

  • Despite its relatively small frame size, the motor is capable of delivering high torque output, making it ideal for applications that need precise motion control in a compact footprint.

• Low Cogging for Smooth Operation:

  • The motor has low cogging characteristics, ensuring smooth rotation and minimal vibrations. This is important for precision applications where stability and noise reduction are critical.

• High-Efficiency Operation:

  • The permanent magnet design ensures that the motor runs efficiently, reducing energy consumption and operating costs over time. This is particularly beneficial in high-performance systems that require long hours of operation.

• Precision Feedback:

  • The MPM-B1151F-MJ72AA comes equipped with an integrated feedback encoder for real-time position, speed, and torque monitoring, providing critical data for closed-loop control systems.

• Integration with Allen-Bradley Drives:

  • This motor is optimized for use with Allen-Bradley Kinetix or PowerFlex drives, which help provide advanced motion control capabilities, such as speed, torque, and positioning control. These drives ensure that the motor operates with maximum precision and efficiency.

• Rugged and Reliable:

  • Built for industrial environments, the motor offers a robust design with an IP65 rating, meaning it is protected against dust and water jets, ensuring reliable operation in harsh environments.

Technical Parameters:MPM-B1151F-MJ72AA

Applications:MPM-B1151F-MJ72AA

1. Robotics:

   • The motor is ideal for use in robotic arms, automated assembly, and pick-and-place systems, where precision and torque control are critical.

2. CNC Machines:

   • Used in CNC milling, turning, and drilling machines, the motor helps achieve precise movements with high torque output for accurate machining operations.

3. Material Handling Systems:

   • In automated conveyors, automated guided vehicles (AGVs), and other material handling systems, the motor provides reliable motion control for transporting materials, improving efficiency and productivity.

4. Packaging Systems:

   • In automated packaging lines, the motor is used for filling, capping, labeling, and sealing, where smooth operation and precise movement are essential for high-speed packaging.

5. Medical Equipment:

   • The motor can be used in medical automation systems, such as robotic surgical tools, diagnostic equipment, and laboratory automation, where precise movement and reliable performance are critical.

6. Test and Measurement Equipment:

   • In testing systems and inspection machines, the motor provides high-precision control over test fixtures, measurement instruments, or sample transport mechanisms.

7. Aerospace and Automotive:

   • The MPM-B1151F-MJ72AA motor can be used in automated assembly lines in both the aerospace and automotive industries, particularly for tasks requiring precision and efficiency.

Customization:MPM-B1151F-MJ72AA

• Voltage and Current Options:

  • The motor can be customized for various voltages (230V, 400V, 480V) and power configurations to meet specific system requirements.

• Feedback Options:

  • The motor offers encoder options for different types of feedback, including absolute and incremental encoders, for precise control of speed, position, and torque.

• Cooling Systems:

  • The motor is typically air-cooled, but custom variants with liquid cooling are available for high-power configurations or applications that require enhanced thermal management.

• IP Ratings:

  • Custom IP ratings (e.g., IP67) are available for more demanding environments where additional protection from water and dust is required.

• Mounting and Shaft Configurations:

  • Custom shaft types, such as keyed or flanged shafts, and mounting options are available to fit specific application needs.

• Drive and Communication Integration:

  • The motor integrates seamlessly with Allen-Bradley Kinetix or PowerFlex drives, providing advanced motion control, feedback, and diagnostic features. Communication protocols such as Ethernet/IP, Modbus, and CANopen can be selected to ensure smooth integration with the overall control system.

Support and Services:MPM-B1151F-MJ72AA

- Expert technical assistance via phone or email

- Troubleshooting and diagnosis of issues

- Repair and replacement services for faulty or damaged drives

- Firmware and software updates

- Training and education on product use and maintenance

- Customization and integration services

- Documentation and manuals
