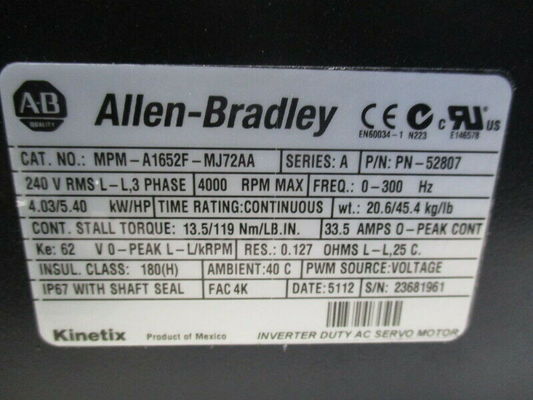

ALLEN-BRADLEY MPM-A1652F-MJ72AA MP-Series MPM 240V AC Rotary Servo Motor

Product Description:MPM-A1652F-MJ72AA

The MPM-A1652F-MJ72AA is a Permanent Magnet Synchronous Motor that features a high torque-to-weight ratio, high efficiency, and precise control. It is typically used in conjunction with Allen-Bradley drives, such as the Kinetix or PowerFlex series, to create an efficient and high-performance motion control system.

Key Highlights:

• Motor Type: Permanent Magnet Synchronous Motor (PMSM)
• Frame Size: 165 (indicating the motor's physical size and its power class)
• Power Rating: Around 5 kW to 15 kW (depending on configuration)
• Feedback: Integrated encoder for position, speed, and torque feedback
• Rated Voltage: Available in different voltage configurations, typically 230V, 400V, or 480V, depending on region and application needs.
• Control Compatibility: Compatible with Allen-Bradley Kinetix and PowerFlex drives for optimized motion control and closed-loop feedback.

Features:MPM-A1652F-MJ72AA

• Permanent Magnet Rotor Design:

  • The MPM-A1652F-MJ72AA motor uses permanent magnets in the rotor, which provides high torque output, reduced losses, and improved overall efficiency.
  • Permanent magnet motors are known for their high torque density, meaning they can deliver more torque per unit of weight or volume compared to traditional induction motors.

• High Efficiency and Energy Savings:

  • The permanent magnet design allows the motor to achieve high efficiency in converting electrical energy into mechanical energy. This results in lower operational costs and reduced heat generation.
  • Ideal for applications where energy efficiency is crucial, such as in 24/7 operations and systems with high power demand.

• Precise Motion Control:

  • The motor integrates with feedback devices (such as encoders) that enable closed-loop control for real-time monitoring of position, speed, and torque.
  • This feedback system ensures that the motor operates with high precision, ideal for tasks requiring accurate positioning and repeatable movements.

• Smooth and Quiet Operation:

  • The low cogging characteristics of the MPM-A1652F-MJ72AA motor ensure smooth operation, which is especially important in high-precision tasks or environments where vibration and noise must be minimized (e.g., medical equipment, laboratory automation).

• High Torque and Speed Range:

  • The motor is designed to provide high torque even at low speeds, making it suitable for a wide range of applications requiring torque control and variable speed operation.

• Compact and Robust Design:

  • The MPM-A1652F-MJ72AA motor is compact, yet powerful, making it suitable for applications where space is limited, but high performance is still required.
  • Its robust construction is designed to handle industrial workloads and operate reliably in demanding conditions.

• Seamless Integration with Allen-Bradley Drives:

  • The motor is compatible with Allen-Bradley’s Kinetix and PowerFlex drives, allowing for easy integration into a motion control system. These drives provide advanced features for speed, torque, and position control, ensuring optimal performance.

Technical Parameters:MPM-A1652F-MJ72AA

Applications:MPM-A1652F-MJ72AA

1. Robotics:

   • The motor is commonly used in industrial robotics and robotic arms where high precision, smooth motion, and high torque are necessary for tasks such as pick-and-place, assembly, and welding.

2. CNC Machines:

   • It is used in CNC machining applications, including milling, turning, drilling, and engraving, where accuracy and reliable torque control are critical for high-quality machining.

3. Material Handling:

   • In automated material handling systems (such as conveyors, AGVs, and sorting systems), the motor’s high-speed precision and reliable torque make it an excellent choice for moving materials quickly and efficiently.

4. Packaging Systems:

   • It is often used in packaging machinery such as filling, capping, labeling, and sealing applications where precise control and repeatability are crucial.

5. Printing and Converting:

   • The motor is used in printing presses, labeling systems, and paper converting machines, where smooth operation and high-speed performance are required to handle the paper or media.

6. Test and Measurement:

   • In test equipment and inspection systems, the motor provides precise control over test fixtures or measurement instruments, ensuring accuracy in automated testing or quality control.

7. Medical Equipment:

   • The MPM-A1652F-MJ72AA motor is used in medical automation systems, including robotic surgical tools, diagnostic instruments, and laboratory automation, where reliable and precise motion control is critical.

8. Aerospace and Automotive:

   • In aerospace assembly and automated car manufacturing, the motor is used for precision assembly and testing operations that require high torque and high efficiency.

.

Customization:MPM-A1652F-MJ72AA

• Voltage and Current Options:

  • The motor can be configured with different voltages (230V, 400V, 480V) based on regional or application-specific requirements.

• Feedback Systems:

  • Encoders can be customized for different types of feedback, including incremental or absolute encoders, based on the desired level of position and speed accuracy.

• Cooling Systems:

  • While the motor is typically air-cooled, custom configurations with liquid cooling may be available for applications requiring high-performance cooling.

• IP Rating:

  • The motor can be configured with higher IP ratings (e.g., IP67) for protection against dust and water ingress, making it suitable for harsh environments.

• Mounting and Shaft Configurations:

  • Custom mounting options and shaft configurations (e.g., keyed, flanged, hollow shaft) are available to suit specific machine or system integration needs.

• Drive Integration:

  • The motor is fully compatible with Allen-Bradley Kinetix and PowerFlex drives, and can be configured for specific communication protocols such as Ethernet/IP, Modbus, and CANopen.

Support and Services:MPM-A1652F-MJ72AA

Our Industrial Servo Drives product comes with comprehensive technical support and services to ensure optimal performance and maximum uptime. Our team of experienced engineers is available to assist with installation, configuration, and troubleshooting.

We offer a range of services to support our Industrial Servo Drives product, including:

• On-site installation and commissioning
• Training and education for operators and maintenance personnel
• Remote technical support
• Preventative maintenance and repair services

In addition, we offer a range of value-added services to help customers get the most out of their Industrial Servo Drives, including:

• Custom programming and configuration
• Integration with other automation systems
• Performance optimization and tuning
• Upgrade and migration services

Whether you need assistance with installation, maintenance, or performance optimization, our team is here to help you get the most out of your Industrial Servo Drives. Contact us today to learn more about our technical support and services.
