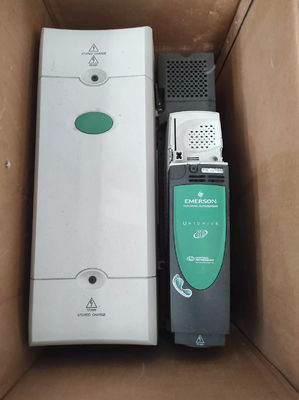

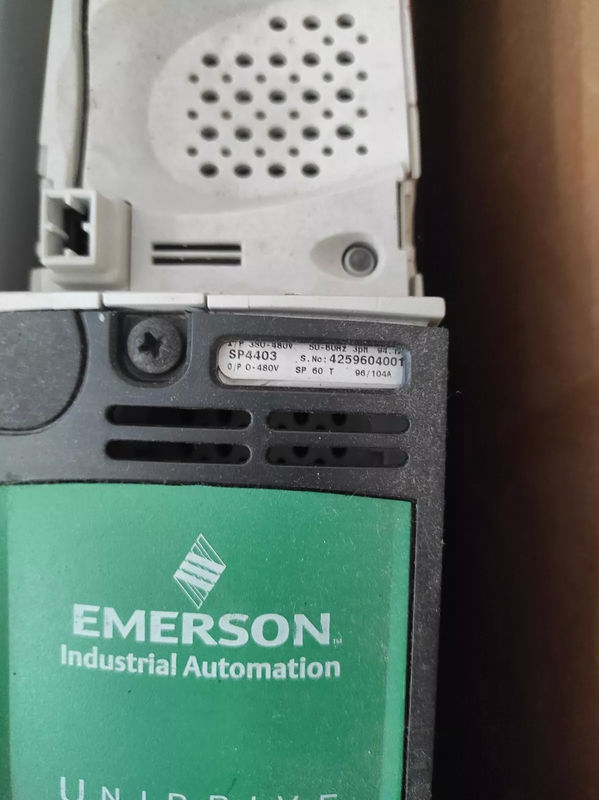

EMERSON SP4403 Control Techniques Emerson Unidrive Frequenzumrichter

• Control Modes:

  • V/f (Volts per Hertz) Control: Standard control method for basic applications where motor speed is controlled by adjusting the voltage frequency ratio.
  • Sensorless Vector Control (SVC): Ideal for applications requiring high torque at low speeds, such as conveyors or mixers. SVC improves motor performance by estimating rotor position without the need for additional sensors.
  • Closed-Loop Vector Control (CLVC): Offers superior precision by using feedback from an encoder or resolver. This is suitable for applications that require highly dynamic load changes or precise speed and torque control.
  • Flux Vector Control: For high-performance applications where precise motor control and speed regulation are essential.

• Motor Settings:

  • Motor Parameter Autotuning: The drive can automatically detect and adjust its settings based on the motor parameters (e.g., rated voltage, rated current, etc.). This allows for better energy efficiency and performance.
  • Custom Motor Protection: Set the motor overload limits, current protection, and thermal protection based on the specific motor type and application needs.

2. Acceleration/Deceleration Customization

• Ramp-Up and Ramp-Down Times:

  • The SP4403 allows users to customize the acceleration and deceleration profiles to match the application’s requirements. For example, slower ramp times for sensitive equipment to reduce mechanical stress or faster ramp-up for processes that need quick responses.
  • S-Curve Ramp: Smooth acceleration and deceleration that can be customized to reduce jerk and provide smoother transitions during operation.

• Dynamic Braking (optional):

  • For rapid stopping applications, the SP4403 can be customized with a dynamic braking resistor module to quickly dissipate energy and bring the motor to a stop safely.

3. Input/Output (I/O) Customization

• Digital Inputs (DI):

  • Customize digital inputs for different control functions such as start/stop, fault signals, mode switching, or remote operation.
  • Users can configure digital inputs to operate based on external signals like limit switches or sensors.

• Analog Inputs (AI):

  • The SP4403 allows customization of analog inputs (e.g., for speed reference, process control, or flow/pressure sensors). The drive can then adjust the motor speed in real-time according to feedback from external analog signals.
  • PID Control: The drive can be configured for PID (Proportional-Integral-Derivative) control, which is useful in applications requiring precise control over a process variable, such as pressure or flow control in pumps and fans.

• Relay Outputs:

  • Configure relay outputs for alarm signals, fault notifications, or process status monitoring.
  • Fault Handling: The SP4403 can be set up to trigger a relay output for specific fault conditions (e.g., overvoltage, overcurrent, or motor overheating), alerting operators to take corrective actions.

4. Communication Protocols Customization

The SP4403 offers several communication options to integrate with existing automation systems, including PLCs, SCADA, and building management systems. Users can select the appropriate communication protocols based on their system's requirements:

• Modbus RTU: Standard RS-485 communication protocol for integration with a wide variety of industrial automation devices, enabling remote monitoring and control.
• Ethernet/IP (optional): For high-speed communication over industrial Ethernet networks, offering remote control and diagnostics via web interfaces or through PLCs.
• CANopen: For high-speed and deterministic communication in applications like robotics or motion control systems, allowing real-time control over multiple drives.
• Profibus/Profinet (optional): For integration with Siemens-based systems in large automation systems.
• BACnet: Ideal for integration with building automation systems (BMS) for applications like HVAC, allowing centralized control and monitoring.

Customization Tips: The SP4403 allows easy selection of communication protocols via parameter settings in the drive. This feature is particularly useful for systems requiring integration into existing networks or those utilizing more advanced communication for distributed control.

5. Protection Customization

• Overload Protection: Customize the overload limits based on motor and load characteristics, ensuring that the drive and motor do not operate beyond their rated capacity.
• Overvoltage/Undervoltage Protection: Adjust the voltage protection settings to match the environment's voltage conditions, ensuring that the drive operates within safe limits.
• Thermal Protection: Customize the thermal protection thresholds based on motor size and operating conditions. This prevents overheating by monitoring the motor’s temperature and adjusting the drive's performance accordingly.
• Ground Fault Detection: The drive can be customized to detect and respond to ground faults, improving safety in environments where grounding issues might arise.
• Fault Log: Customize the fault logging parameters to capture detailed fault history, which helps troubleshoot issues more effectively.
• Phase Loss Protection: Configurable settings to protect the motor from damage in case of phase loss or imbalanced voltage conditions.

6. Energy Efficiency and Load Compensation

• Energy Saving Mode: The drive can be set to adjust the motor speed to match load variations, reducing energy consumption during periods of low demand. For example, fans and pumps typically run at less than full capacity most of the time, and energy savings can be significant by running them at reduced speed.
• Load Compensation: For systems where load varies constantly, such as conveyors or elevators, the SP4403 can be customized to automatically adjust the motor speed to match load requirements, ensuring efficiency and preventing overuse of energy.
• Active Power Factor Correction (PFC): Some versions of the SP4403 come with customizable settings to improve power factor, helping to reduce the system's reactive power demand and improve efficiency.

7. User Interface and Display Customization

• Operator Panel Customization:
  • The SP4403 features a digital keypad and LCD screen for local control and monitoring. You can customize the panel settings, including the display language, parameter display format, and alarm conditions.
  • Password Protection: Protect critical parameters from unauthorized access by setting up user passwords for different levels of control (e.g., setup, adjustment, troubleshooting).
  • Data Logging: Customize the data logging frequency to capture important parameters such as motor speed, current, torque, voltage, and power consumption for later analysis.
• Remote Control: If you require remote operation, you can configure the drive to accept commands from a remote control panel or PC, either via Modbus or Ethernet protocols, allowing for operation and diagnostics without needing to be on-site.

8. Environmental and Durability Customization

• Enclosure Type: Depending on the environmental conditions, you can select from a variety of enclosures to ensure the drive operates safely and efficiently:

  • NEMA 1 (IP20): For indoor use in controlled environments.
  • NEMA 4 (IP54): For protection against dust and water, often used in industrial environments.
  • NEMA 4X (IP66): Stainless steel enclosures for extreme conditions like food processing, chemical plants, or outdoor installations.
  • Custom Mounting Options: The SP4403 can be customized to fit specific mounting or space constraints within your facility.

• Ambient Temperature Settings: The drive can be customized for operation in environments with temperatures up to 50°C or higher, depending on the motor and load conditions. This is especially useful for industrial sites with extreme temperature variations.

9. Expansion and Upgrades

• External Modules: The SP4403 can be customized with external modules such as communication cards, braking resistors, and additional I/O cards to expand the system’s functionality.
• Custom Firmware: Emerson offers the option to customize firmware for specific applications or to address unique customer requirements. This allows for tailoring the drive's behavior to match complex or proprietary control algorithms.
