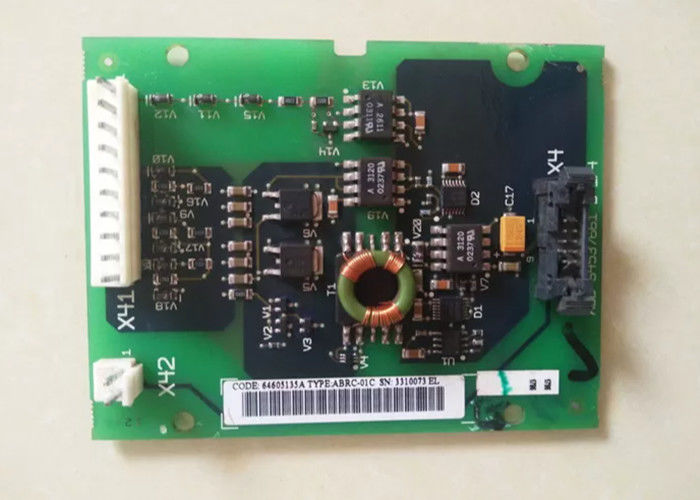

ABB ABRC-01C 68258511 KIT BRAKE CHOPPR Control Circuit Board for Industrial Automation

ABB ABRC-01C 68258511 KIT BRAKE CHOPPR Control Circuit Board

General Information of ABRC-01C
● ProductID: 68258511
ABB Type Designation:-
Catalog Description:-;BR.CHOPPER CONTR ABRC-01C SP KIT
. Long Description: ABRC-01C KIT BRAKE CHOPPR
● Core Credit:0.00
. Country of Origin: Finland (FI)
● Customs Tariff Number: 85049099
● Invoice Description: Brake Chopper Control ABRC-01C Special Kit
.Made To Order: No
.Minimum Order Quantity:1piece
. Order Multiple: 1 piece
Part Type: New
Quote Only: No
Replaced ProductID(OLD): 64605135,64533282
. Selling Unit of Measure: piece

Overview of ABRC-01C

The ABB ABRC-01C is a chopper control board designed for the control of DC motors. It is a compact and versatile board that can be used in a wide variety of applications, including:

1. Industrial automation
2. Conveyor systems
3. Material handling equipment
4. Robotics

The ABRC-01C utilizes pulse width modulation (PWM) to control the speed and armature current of the DC motor. This results in a smooth and efficient control of the motor, even at low speeds.

Technical Specifications of ABRC-01C

1. Input voltage: 12 VDC to 48 VDC
2. Output current: Up to 30 A
3. Speed control range: 0 RPM to maximum motor speed
4. Armature current control range: 0 A to maximum motor current
5. Operating temperature range: -20°C to +60°C
6. Dimensions: 100 mm x 60 mm x 25 mm

Features of ABRC-01C:

• Compact and lightweight design
• Easy to install and use
• Wide operating voltage range
• Four-quadrant operation
• Adjustable speed and torque limits
• Current limiting protection
• Thermal protection
