EBMPAPST 115VAC Blower D2E097-CB11-32 Centrifugal Cooling FAN 120CFM; 43W; 47dBA

EBMPAPST 115VAC Blower D2E097-CB11-32 Centrifugal Cooling FAN 120CFM; 43W; 47dBA

  • EBMPAPST 115VAC Blower D2E097-CB11-32 Centrifugal Cooling FAN 120CFM; 43W; 47dBA
  • EBMPAPST 115VAC Blower D2E097-CB11-32 Centrifugal Cooling FAN 120CFM; 43W; 47dBA
  • EBMPAPST 115VAC Blower D2E097-CB11-32 Centrifugal Cooling FAN 120CFM; 43W; 47dBA
EBMPAPST 115VAC Blower D2E097-CB11-32 Centrifugal Cooling FAN 120CFM; 43W; 47dBA
Product Details:
Place of Origin: GERMANY
Brand Name: EBMPAPST
Certification: CE
Model Number: D2E097-CB11-32
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Contact us
Packaging Details: New Original Box
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 50
Contact Now
Detailed Product Description
Model: D2E097-CB11-32 Brand: EBMPAPST
Type: Centrifugal Fan Weight: 5KG
Condition: NEW ORIGINAL Country Of Origin: Germany
High Light:

AC Centrifugal Industrial Centrifugal Fan

,

ABB Industrial Centrifugal Fan 64650424

,

D2D160-BE02-11

EBMPAPST 115VAC Blower D2E097-CB11-32 Centrifugal Cooling FAN 120CFM; 43W; 47dBA


Description

Centrifugal Cooling Fan assembly, complete with motor for ACS800 Inverter Drive.
Type: D2E097-CB11-32
Blower; Centrifugal; 115VAC; 144x137mm; Scroll; 120CFM; 43W; 47dBA; Leadwires



Models of D2E097 Series:

D2E097-BI56-02
D2E097-BI56-83
D2E097-BI56-E7
D2E097-BI56-E9


Spare for:

ACS800-104-0170-3,
ACS800-104-0210-3,
ACS800-104-0210-5,
ACS800-104-0210-7,
ACS800-104-0260-3,
ACS800-104-0260-5,
ACS800-104-0260-7,
ACS800-104-0320-3,
ACS800-104-0320-5,
ACS800-104-0320-7,
ACS800-104-0390-3,
ACS800-104-0400-5,
ACS800-104-0400-7,
ACS800-104-0440-7,
ACS800-104-0460-5,
ACS800-104-0510-3,
ACS800-104-0580-7,
ACS800-104-0610-5.


Specifications:


Air Flow120 CFM
Bearing TypeBall
Blower TypeCentrifugal
ConfigurationScroll
Dimensions5.67 x 5.39 (144 x 137)In. (mm)
Frequency60 Hz
MaterialMetal
Noise Level47 dBA
Power Rating43 W
RotationCW
SeriesD2E097 Series
Temperature, Operating, Maximum60 C
TerminationLeadwires
Voltage Rating115 VAC
Weight2.69 Lbs.



Features:

  • AC Dual Inlet Forward Curved Centrifugal Blower
  • Via a Bracket, the Integrated External-Rotor Motor Is Mounted on One Side of the Housing
  • Housing and Impeller of Galvanized Sheet-Steel
  • Forward Curved Impellers Are Directly Press-Fitted onto the Rotor of the External-Rotor Motor
  • Direction of Rotation Is CW as Seen From Suction Side
  • Insulation Class “B”
  • Maintenance-Free Ball Bearings


Description of Centrifugal fans

Centrifugal fans from ebm-papst are available with forward or backward curved blades. The

outstanding feature of the external rotor motors is their compact, flat design, which results from
integrating the external rotor motor into the impeller. "Blowers" refers to devices with scroll

housing, while centrifugal fans are shipped without scrolls.



Similiar Centrifugal fans for ABB Variable Frequency Inverter

Part no : D2D160- BE02-11 64650424
Part no : D2D160-BE02-11
Part no : D2D160-BE02-12
Part no : D2D160-BE02-12 68281334
Part no : D2D160-BE02-14
Part no : D2D133-DB02-06
Part no : D2D146-AA28-28
Part no : D2E133-AM35-B4
Part no : D2E097-CB01-02
Part no : D2E133-AM47-01
Part no : D2E133-CI33-56
Part no : D2E133-DM47-01
Part no : D2E146-AP43-22
Part no : D2E146-AP47-22
Part no : D2E160-AB01-06
Part no : D2E160-FI01-01
Part no : D2E146-HR93-01
Part no : D2E097-BK66-02
Part no : D2E097-BK66-48
Part no : D2E097-CH85-02
Part no : D2E097-CH85-48
Part no : D2E133-DM47-23
Part no : D2E146-AP43-02
Part no : D2E146-AP47-02
Part no : D4E225-CC01-02
Part no : D4E225-CC01-30
Part no : D4E225-CC01-39
Part no : D2E140-HR97-07
Part no : D2E146-KA45-01
Part no : D2E146-KB27-01
Part no : D2E146-HR93-03
Part no : D2E146-HS97-03
Part no : D2E160-FK11-02
Part no : D4E146-LV19-14
Part no : D4D180-CB01-02
art no : D4D200-CA01-02
Part no : D4D225-FH02-01
Part no : D4D225-GH02-01
Part no : D4E160-DA01-02
Part no : D4E160-EG06-05
Part no : D4E160-FH12-05
Part no : D4E180-BA02-02
Part no : D4E180-CA02-02
Part no : D4E200-CA02-02
Part no : D4E225-BC01-02
Part no : D4E225-DH01-01
Part no : D4E225-EH01-01
Part no : D6E225-FB07-02



Others:


RF2C-140/059 K147 SF
RF2C-140/059 K097 SF
RF2C-146/062 K124 SF
RF2C-160/062 K117 SF

RF2C-140/059 K147 I
RF2C-140/059 K097 I
RF2C-146/062 K124 I
RF2C-160/062 K117 I
RF2C-180/052 K000 I
RF2C-140/059 K147
RF2C-140/059 K097
RF2C-146/062 K124
RF2C-160/062 K117
RF2C-180/052 K000




Product Drawing

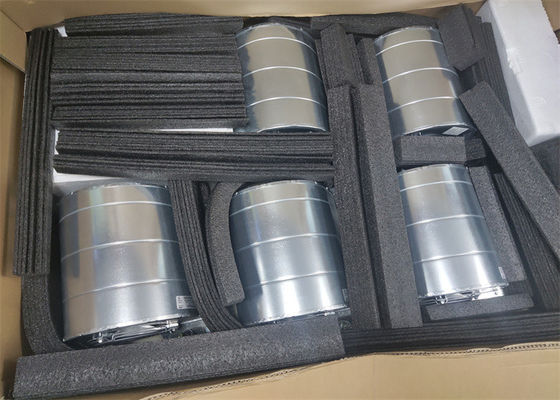

EBMPAPST 115VAC Blower D2E097-CB11-32 Centrifugal Cooling FAN 120CFM; 43W; 47dBA 0

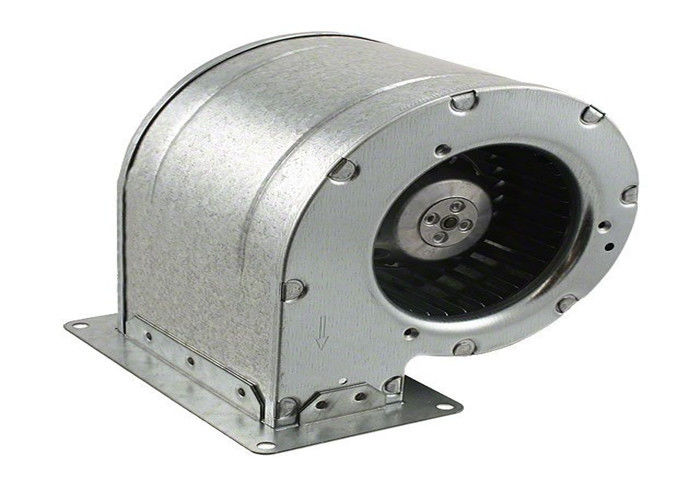

EBMPAPST 115VAC Blower D2E097-CB11-32 Centrifugal Cooling FAN 120CFM; 43W; 47dBA 1



Packaging & Delivery


Packaging Details
Cartons


Delivery Time
Whithin 3-5 days




Our advantage Products:

【Honeywell】Module DCS / PLC

【Emerson / Delta V】Module
【ABB】Input Output Module

【AB】Module / Touch Screen

【Rosemount】Pressure and Temperature Transmitter

【Yokogawa】Pressure Transmitter

【Yaskawa】Servo Drive / Servo Motor
【GE/Fanuc】IC69 Series PLC

【Mitsubishi】Servo Drive / Servo Motor
(Modicon,SMC,SICK,NORGREN,Siemens etc.)



Company Introduction

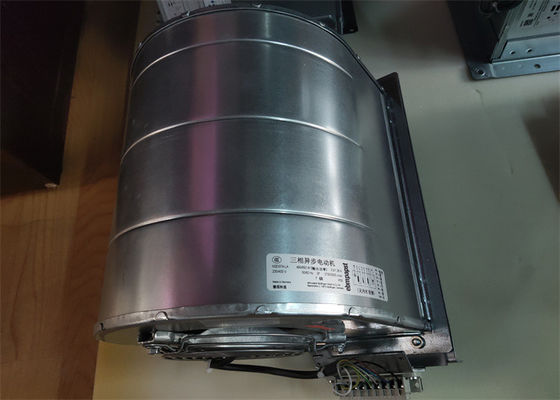

EBMPAPST 115VAC Blower D2E097-CB11-32 Centrifugal Cooling FAN 120CFM; 43W; 47dBA 2
