Ebmpapst Axial 2 Pole 1PH716 High Pressure Centrifugal Fan M2D068-DF

Ebmpapst Axial 2 Pole 1PH716 High Pressure Centrifugal Fan M2D068-DF

  • Ebmpapst Axial 2 Pole 1PH716 High Pressure Centrifugal Fan M2D068-DF
  • Ebmpapst Axial 2 Pole 1PH716 High Pressure Centrifugal Fan M2D068-DF
Ebmpapst Axial 2 Pole 1PH716 High Pressure Centrifugal Fan M2D068-DF
Product Details:
Place of Origin: GERMANY
Brand Name: EBMPAPST
Certification: CE
Model Number: M2D068-DF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Contact us
Packaging Details: New Original Box
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 50
Contact Now
Detailed Product Description
Model: M2D068-DF Brand: EBMPAPST
Type: AC Axial Fan Condition: NEW ORGINAL
Power: 90W Speed: 2600rpm
High Light:

2 pole high pressure centrifugal fan

,

1PH716 high temperature centrifugal fan

,

M2D068-DF

Ebmpapst Axial Fan M2D068-DF for Siemens Spindle Motor 1PH716 Series



Description



Ebm-papst's axial fans prove their reputation as space-saving wonders by moving air for hot or coldair exchange in a wide variety of devices and systems. Their outstanding features are their smallinstallation depth, low noise level and exceptional efficiency, and are particularly well suited for airflow through heat exchangers.Furthermore, in the EC version, they become intelligent "energy-saving wonders" for an extremelywide range of applications, primarily in ventilation, air-conditioning and refrigeration technology andthe automotive industry.




One principle, countless options





The axial fan, the function of which is similar toa propeller, moves the air axially, parallel to therevolving motor shaft. The ebm-papst externalrotor motor is integrated directly into the axialimpeller, forming a compact axial fan unit. Theyare usually installed with wall rings in short orlong nozzles.The extensive ebm-papst product range offersthe right solution for each requirement and isclassified for a wide variety of applications:

  • S series with sickle-shaped blades for highair flow at medium pressure
  • K series with especially low noise level ideally suited for refrigeration plantapplications
  • A series for high-pressure applications





Design according to requirements



Energy efficiency, controllability and low-noiseperformance – and all this together withexternal rotor motors in AC and EC technology:ebm-papst axial fans are optimally matched tocustomer requirements.The EC technology (12 VDC to 110 VDC or line-voltage-powered 100 VAC to 480 VAC) withintegrated or external electronics enables precision open and closed-loop control withvery high efficiency. The following standard features are available:tach output, error message, linear or PWMinput, temperature or flow rate-dependentcontrol systems or bus-connectable interface.





Fan W2S130-AA25-01 Motor M2S052-CA
Fan W2S130-AA03-01 Motor M2S052-CA
Fan W2S130-BM15-01 Motor M2S052-CA
Fan W2S130-BM03-01 Motor M2S052-CA
Fan W2E142-BB05-01 Motor M2E052-BA
Fan W2E142-BB01-01 Motor M2E052-BA
Fan W2E143-AA15-01 Motor M2E052-BF
Fan W2E143-AA09-01 Motor M2E052-BF
Fan W2E143-AB15-01 Motor M2E052-BF
Fan W2E143-AB09-01 Motor M2E052-BF
Fan W2E200-HK86-01 Motor M2E068-BF
Fan W2E200-HK38-01 Motor M2E068-BF
Fan W4S200-HK04-01 Motor M2E068-BF
Fan W2D208-BA02-01 Motor M2E068-CF
Fan W2E208-BA86-01 Motor M2E068-CF
Fan W2E208-BA20-01 Motor M2E068-CF
Fan W2E250-HL06-01 Motor M2E068-CF



Part designation / Type



R(1) 2(2) E(3) 190(4) - AO(5) 26(6) - 05(7)



1) Type



A - axial fan
S - axial fan with guard grille
W - axial fan with wall ring
V - axial combination
R - centrifugal fan, single inlet
G - centrifugal blower, single inlet (with scroll housing)
B - centrifugal fan, dual inlet
D - centrifugal blower, dual inlet (with scroll housing)
K - centrifugal combination
M - motor
P - pumps





2) Number of poles(AC) / number of cores(EC)



2-, 4-, 6-, 8- and 12-pole (Z = 12) / 1- and 3-core





3) Motor type


D - 3-phase motor
E - single-phase motor with operating capacitor
G - EC motor
S - shaded-pole motor
Q - square shaded-pole motors



4) Impeller diameterin mm


5) Key for mechanical design


6) Key for electrical design


7) Key for mechanical variants





Similiar Fans


A2D300-AP02-01;S2D300-BP02-30;W2D300-CP02-30;S2D300-AP02-30;A2D300-AP02-02;S2D300-BP02-31
W2D300-CP02-31;S2D300-AP02-31;A2E300-AP02-01;S2E300-BP02-30;W2E300-CP02-30;S2E300-AP02-30
A2E300-AP02-02;S2E300-BP02-31;W2E300-CP02-31;S2E300-AP02 -31
A2D200-AH18-01;S2D200-BH18-01;W2D200-CH18-01;S2D200-AH18-01;A2D200-AI18-01;S2D200-BI18-01
W2D200-CI18-01;S2D200-AI18-01;A2E200-AH38-01;S2E200-BH38-01;W2E200-CH38-01;S2E200-AH38-01
A2E200-AI38-01;S2E200-BI38-01;W2E200-CI38-01;S2E200-AI38-01;A4D200-AH14-01;S4D200-BH14-01
W4D200-CH14-01;S4D200-AH14-01;A4D200-AI14-01;S4D200-BI14-01;W4D200-CI14-01;S4D200-AI14-01
A4S200-AH04-01;S4S200-BH04-01;W4S200-CH04-01;S4S200-AH04-01;A4S200-AI04-01;S4S200-BI04-01
W4S200-CI04-01;S4S200-AI04-01;A2E250-AL06-01;S2E250-BL06-01;W2E250-CL06-01;S2E250-AL06-01

A2E250-AM06-01;S2E250-BM06-01;W2E250-CM06-01;S2E250-AM06-01;A4D250-AH22-01;S4D250-BH22-01
W4D250-CH22-01;S4D250-AH22-01;A4D250-AI22-01;S4D250-BI22-01;W4D250-CI22-01;S4D250-AI22-01

A4E250-AH02-01;S4E250-BH02-01;W4E250-CH02-01;S4E250-AH02-01;A4E250-AI02-01;S4E250-BI02-01
W4E250-CI02-01;S4E250-AI02-01;A4S250-AH02-01;S4S250-BH02-01;W4S250-CH02-01;S4S250-AH02-01
A4S250-AI02-01;S4S250-BI02-01;W4S250-CI02-01;S4S250-AI02-01;A2D250-AH02-01;S2D250-BH02-01
W2D250-CH02-01;S2D250-AH02-01;A2D250-AI02-01;S2D250-BI02-01;W2D250-CI02-01;S2D250-AI02-01







Product Drawing

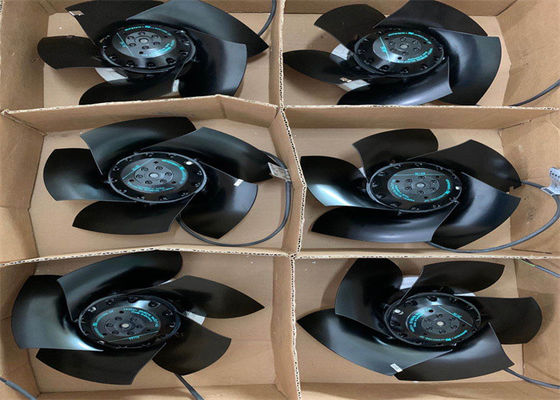

Ebmpapst Axial 2 Pole 1PH716 High Pressure Centrifugal Fan M2D068-DF 0

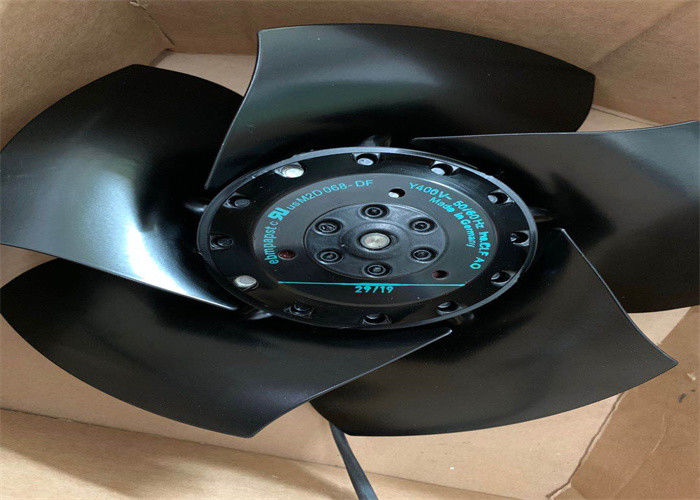

Ebmpapst Axial 2 Pole 1PH716 High Pressure Centrifugal Fan M2D068-DF 1
