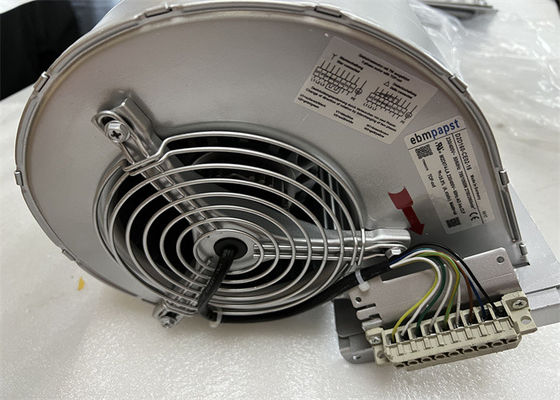

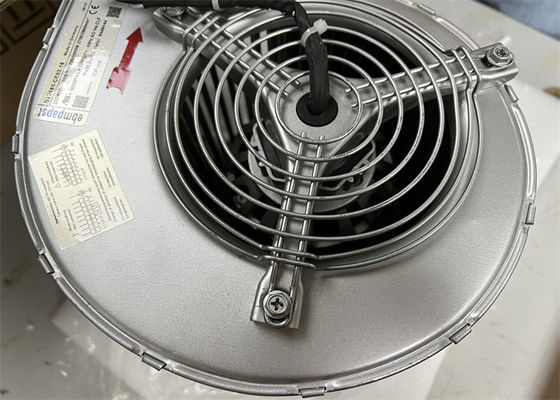

EBMPAPST Blower ABB ACS800 Industrial Centrifugal Fan D2D160-CE02-16

Product Details:

Place of Origin:	GERMANY
Brand Name:	EBMPAPST
Certification:	CE
Model Number:	D2D160-CE02-16

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact us
Packaging Details:	New Original Box
Delivery Time:	3-5days
Payment Terms:	T/T

Contact Now

Detailed Product Description

Model:	D2D160-CE02-16	Code:	84145940
Brand:	EBMPAPST	Country Of Origin:	Germany
Type:	Centrifugal Fan	Use For:	ACS800 Inverter
Highlight:	EBMPAPST Blower Industrial Centrifugal Fan , ABB ACS800 Industrial Centrifugal Fan , D2D160-CE02-16

EBMPAPST Blower Centrifugal Cooling Fan D2D160-CE02-16 For ABB ACS800 VFD Inverter

echnical Information

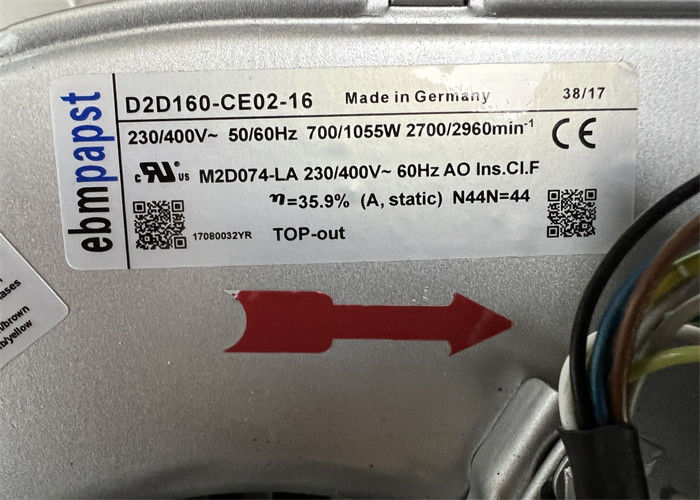

230V; 700/1055W 50/60Hz; 1.9/2.82A 230/400 V~ 50 Hz 700 W 2700 1/min

60 Hz 1055 W 3000 1/min ABB has replaced a fan type D2D160-BE02-11(code 64650424 with D2D160-CE02-11.)

Start-up sound of D2D160-CE02-11 is stronger than the previous D2D160-BE02-11 due to aerodynamically improved fastening of a fan motor.

Technical description

Weight	11.1 kg
Fan size	160 mm
Rotor surface	Painted black
Impeller material	Sheet steel, galvanized
Housing material	Sheet steel, galvanized
Guard grille material	Steel, coated with gray plastic (RAL 9006)
Motor suspension	Motor vibration-damped on both sides
Direction of rotation	Counterclockwise, viewed toward rotor
Degree of protection	IP00
Insulation class	"F"
Moisture (F) / Environmental (H) protection class	H0+
Max. permitted ambient temp. for motor (transport/storage)	+ 80 °C
Min. permitted ambient temp. for motor (transport/storage)	- 40 °C
Installation position	Any
Condensation drainage holes	None, open rotor
Mode	S1
Motor bearing	Ball bearing
Touch current according to IEC 60990 (measuring circuit Fig. 4, TN system)	< 0.75 mA
Electrical hookup	With plug
Motor protection	Thermal overload protector (TOP) with basic insulation
With cable	Axial
Protection class	I (with customer connection of protective earth)
Conformity with standards	EN 60335-1; CE
Approval	CSA C22.2 No. 100; CCC; UL 1004-1

Spare for:

ACS800-104-0170-3,

ACS800-104-0210-3,

ACS800-104-0210-5,

ACS800-104-0210-7,

ACS800-104-0260-3,

ACS800-104-0260-5,

ACS800-104-0260-7,

ACS800-104-0320-3,

ACS800-104-0320-5,

ACS800-104-0320-7,

ACS800-104-0390-3,

ACS800-104-0400-5,

ACS800-104-0400-7,

ACS800-104-0440-7,

ACS800-104-0460-5,

ACS800-104-0510-3,

ACS800-104-0580-7,

ACS800-104-0610-5.

Similiar Centrifugal fans for ABB Variable Frequency Inverter

Part no : D2D160- BE02-11 64650424
Part no : D2D160-BE02-11
Part no : D2D160-BE02-12
Part no : D2D160-BE02-12 68281334
Part no : D2D160-BE02-14
Part no : D2D133-DB02-06
Part no : D2D146-AA28-28
Part no : D2E133-AM35-B4
Part no : D2E097-CB01-02
Part no : D2E133-AM47-01
Part no : D2E133-CI33-56
Part no : D2E133-DM47-01
Part no : D2E146-AP43-22
Part no : D2E146-AP47-22
Part no : D2E160-AB01-06
Part no : D2E160-FI01-01
Part no : D2E146-HR93-01
Part no : D2E097-BK66-02
Part no : D2E097-BK66-48
Part no : D2E097-CH85-02
Part no : D2E097-CH85-48
Part no : D2E133-DM47-23
Part no : D2E146-AP43-02
Part no : D2E146-AP47-02
Part no : D4E225-CC01-02
Part no : D4E225-CC01-30
Part no : D4E225-CC01-39
Part no : D2E140-HR97-07
Part no : D2E146-KA45-01
Part no : D2E146-KB27-01
Part no : D2E146-HR93-03
Part no : D2E146-HS97-03
Part no : D2E160-FK11-02
Part no : D4E146-LV19-14
Part no : D4D180-CB01-02
art no : D4D200-CA01-02
Part no : D4D225-FH02-01
Part no : D4D225-GH02-01
Part no : D4E160-DA01-02
Part no : D4E160-EG06-05
Part no : D4E160-FH12-05
Part no : D4E180-BA02-02
Part no : D4E180-CA02-02
Part no : D4E200-CA02-02
Part no : D4E225-BC01-02
Part no : D4E225-DH01-01
Part no : D4E225-EH01-01
Part no : D6E225-FB07-02

Description of Centrifugal fans

Centrifugal fans from ebm-papst are available with forward or backward curved blades. The

outstanding feature of the external rotor motors is their compact, flat design, which results from

integrating the external rotor motor into the impeller. "Blowers" refers to devices with scroll

housing, while centrifugal fans are shipped without scrolls.

All the facts at a glance:

– AC and EC centrifugal fans with forward-curved blades

– “RadiCal” AC and EC low-pressure fans

– “RadiFit” as EC system solution

– “RadiPac” and “RadiFit” EC medium-pressure fans

– Compact design with external rotor motor technology

– Comprehensive series for every application

– 100% speed-controlled through analogue or serial interface

– High efficiency through use of GreenTech EC technology

– Quiet operation thanks to optimised flow regulation and ingenious commutation of the EC motor

– Easy commissioning with components matched to each other: control/motor/fan

– Extensive range of accessories

Product Drawing

Packaging & Delivery

Packaging Details
Cartons

Delivery Time
Whithin 3-5 days
