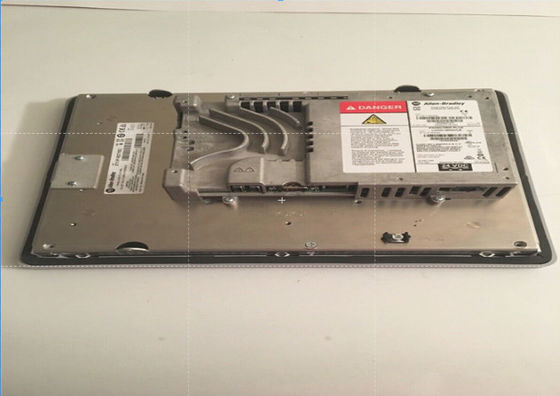

Allen Bradley PanelView Plus 7 Standard 2711P-T10C21D8S-B HMI touch screen New Original
Description
- Sub Brand: Panelview Plus 7 Series C
- Item Name: Operator Interface Terminal With SW Interfaces
- Type: Standard, Wall / Direct Mount
- Resolution: 800 x 600
- Series/Model: 1000
- Voltage Rating: 18 - 30 VDC
- Interface: (3) Ethernet, (3) USB
- Temperature Rating: 0 - 55°C
- Dimensions: 297 mm W x 56.5 mm D x 252 mm H
- Standards: C-TICK, CCC, CE. CUL, KC, UL
- Application: For DeviceNet, EtherNet/IP
- UPC: 00885630920528
|
Conformally Coated Version
- Available on all touch-only displays and 15 in. Keypad display
- Severity Level GX per ANSI/ISA 71.04-2013
Stainless Steel Version
- Offers brandless display in 9 in. and 12 in. sizes
- Features stainless steel 304 bezel
- Includes replaceable blue food-grade silicone gasket
- Includes conformal coating
- Features NSF certification
- UL IP69 rated and tested to IP69K according to ISO 20653
ArmorView Plus 7 Version
- Offers 12 in. display size in a fully enclosed panel
- Features IP66 protection for a cabinet-free HMI solution
- Offers sixteen standard button plate configurations
- Includes option to individually customize buttons and switches
- Features options to increase flexibility, including orientation mount options from either a swing arm, pedestal, or fixed surface
|
2711P-T7C21D8S, 2711P-T7C22D8S, 2711P-T7C21D8S-B, 2711P-T7C22D8S-B,
2711P-T9W21D8S, 2711P-T9W22D8S, 2711P-T9W21D8S-B, 2711P-T9W22D8S-B,
2711P-T10C21D8S, 2711P-T10C22D8S, 2711P-T10C21D8S-B, 2711P-T10C22D8S-B,
2711P-T12W21D8S, 2711P-T12W22D8S, 2711P-T12W21D8S-B, 2711P-T12W22D8S-B,
2711P-T15C21D8S, 2711P-T15C22D8S, 2711P-T15C21D8S-B, 2711P-T15C22D8S-B
PanelView Plus 7 Standard
- Includes Windows CE 6.0 standard features and color TFT LCD, 18-bit color graphics
- Offers display sizes from 4...15 in. with wide screen and keypad options
- Monitors applications from a remote location with VNC connectivity and FactoryTalk ViewPoint
- Uses an SD card or USB drive to quickly copy and restore the operator interface
- Includes email and texting notification capabilities
- Includes 512 MB RAM and 512 MB nonvolatile memory (approximately 80 MB free user memory)
- Offers 100 screens and 500 alarms when used with FactoryTalk Machine Edition software with connection to one controller
- Offers Ethernet 1 x RJ45 10/100 MB Auto-MDI/MDI-X with IEEE 1588 support
- Features single or DLR Ethernet ports for network connectivity
- Includes option for Allen‑Bradley® branded and brandless terminals
PanelView Plus 7 Performance
- Includes Windows 10 IoT Core (LTSC) operating system and color TFT LCD, 18-bit color graphics
- Offers display sizes from 7...19 in. with wide screen and keypad options
- Includes video playback support, which provides advanced user help capabilities
- Monitors applications from a remote location with VNC connectivity and FactoryTalk ViewPoint
- Uses an SD card or USB drive to quickly copy and restore the operator interface
- Includes email and texting notification capabilities
- Includes 4GB RAM and 20GB nonvolatile memory (approximately 2GB free user memory)
- Features two Ethernet ports that support DLR, linear, or star network topologies
- Includes option for Allen‑Bradley branded and brandless terminals
