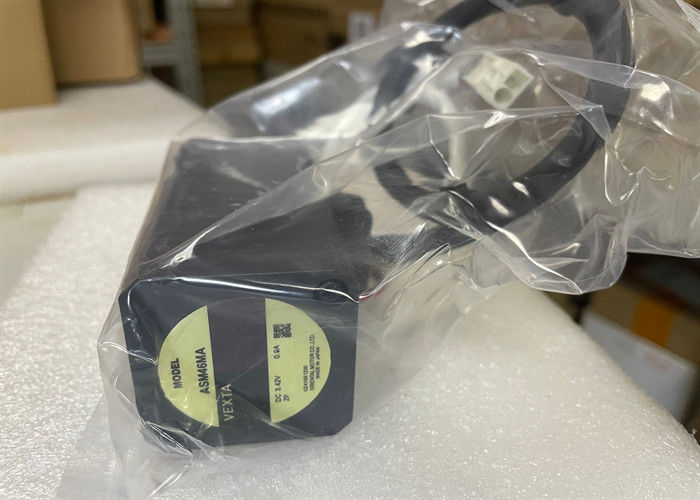

ASM46MA Industrial Servo Motor VEXTA Closed Loop DC24V±5% 1000P/R

ASM46MA Industrial Servo Motor VEXTA Closed Loop DC24V±5% 1000P/R

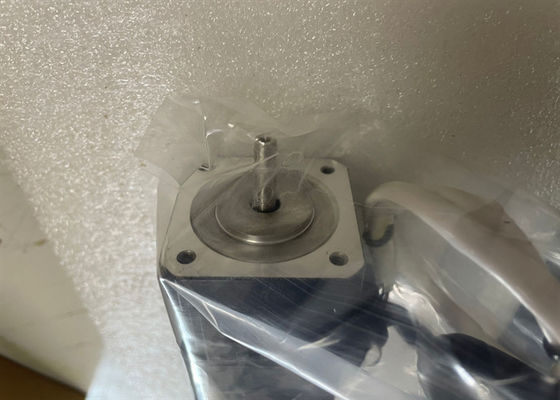

Product Description of Industrial Servo Motor ASM46MA

Installation Angle: 42mm
Type standard
Axis type single axis
Electromagnetic brakes.
Rotor moment of inertia j83 x 10-7kg m2
The reduction ratio
Resolution: 0.36°/ pulse at 1000P/R setting
Electromagnetic brake part type actuated type
Electromagnetic brake unit power input DC24V±5%
Electromagnetic brake unit power consumption 2w
Electromagnetic brake part excitation current 0.08a
Electromagnetic brake part static friction torque 0.15N · m
Motor mass 0.6kg

Specifications of ASM46MA

AlphaStep Closed Loop Stepper Motor Systems

Oriental Motor's AlphaStep closed loop control systems perform accurate positioning operations with ease. The AlphaStep features a unique control system combining the benefits of "open loop control" and "closed loop control".

With the AlphaStep control system, the position of the motor is always monitored and then the driver automatically switches between the two types of control depending on the situation. Under normal circumstances the operation of the motor is monitored and control is applied using open loop like a standard stepper motor. If an error occurs between the command and motor position due to a load or the like, the system immediately switches to closed loop control like a servo motor. This corrects the position and speed maintaining the desired operation. The combination of these two control methods ensures high reliability and performance.

To expand applications of stepper motors, Oriental Motor offers many different product series designed with different power specifications and various functions. A wide spectrum of variation are available within each series, as products come in many frame sizes and pre-assembled options, such as electromagnetic brake types, geared types or linear and rotary actuator products.

Features

• Low-speed operation at low vibration levels The AS series achieves smooth, low-speed operation with extremely low vibration, thanks to its micro-stepping drive, which enables stepping in very small angles.
• Built-in alarm function--Whenever a load greatly exceeding the motor rating is encountered, or when the motor’s output shaft is constrained during operation, the driver outputs a warning alarm. In a vertical-travel application, the electromagnetic brake may be triggered upon the detection of this alarm to prevent a moving section and the work from falling.
• Preset speed filter--The filter time constant that determines motor response can be set in 16 increments.
• Preset operating current--The level of motor current during operation can be set between 6 to 100% (maximum) in 16 increments.
• Preset resolution--The motor resolution levels can be set in four increments: 0.72°/pulse, 0.36°/pulse, 0.072°/pulse and 0.036°/pulse.

AS Series Standard Type

AS46AA AS66AA AS69AA AS98AA AS911AA AS46MA
AS66MA AS69MA AS98MA AS66A AS69AC AS98AC
AS911AC AS66MC AS69MC AS98MC AS66AS AS69AS
AS98AS AS911AS AS66MS AS69MS AS98MS
