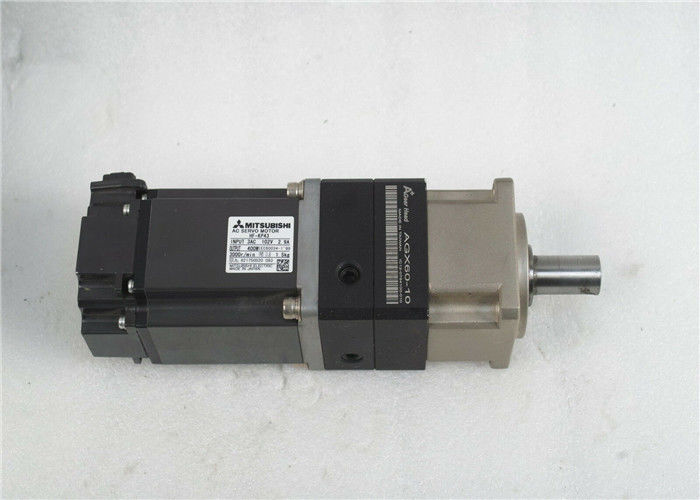

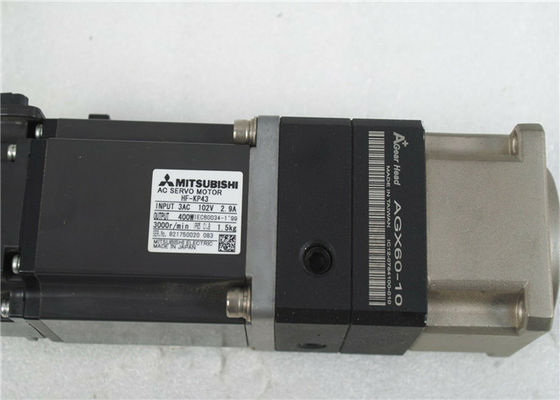

Mitsubishi 400W Industrial AC SERVO MOTOR HF-KP43 with Gear Head AB060-S1-P2 RATIO 10:1

Mitsubishi 400W Industrial AC SERVO MOTOR HF-KP43 with Gear Head AB060-S1-P2 RATIO 10:1

  • Mitsubishi 400W Industrial AC SERVO MOTOR HF-KP43 with Gear Head AB060-S1-P2 RATIO 10:1
  • Mitsubishi 400W Industrial AC SERVO MOTOR HF-KP43 with Gear Head AB060-S1-P2 RATIO 10:1
Mitsubishi 400W Industrial AC SERVO MOTOR HF-KP43 with Gear Head AB060-S1-P2 RATIO 10:1
Product Details:
Place of Origin: Japan
Brand Name: Mitsubishi
Certification: CE
Model Number: HF-KP43
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Contact us
Packaging Details: New Original Box
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 50
Contact Now
Detailed Product Description
Brand: Mitsubishi Model: HF-KP43
Rated Output Power: 400W Series: HC-KP Series
Rated Speed: 3000r/min

Mitsubishi 400W Industrial AC SERVO MOTOR HF-KP43 with Gear Head AB060-S1-P2 RATIO 10:1



Specifications for HF-KP43


DescriptionHF-KP43 is a Motors-AC Servo
Servomotor TypeHF-KP Series; Ultra-low inertia,small capacity
Rated Output 7400W
Rated Speed3000 rpm; 102V
Gear HeadAB060-S1-P2
Shaft endStandard (Straight shaft)


Notes:


1.When the power supply voltage drops, we cannot guarantee the output and rated speed.
2.80% ED at low noise.
80% ED: Indicates the condition in which operation time at read torque accounts for 80% and the other no load time accounts for 20% in a single operation cycle.
3.When the servo motor is equipped with reduction gear or electromagnetic brake, refer to the corresponding outline dimension drawing. For the EN Standard and UL/cUL Standard compliant models, please contact Mitsubishi.
4.If the load inertia moment ratio exceeds the indicated value, please contact Mitsubishi.
5.When the equipment is to be used in places where it is subjected to oil and/or water, such as on machine field sites, optional features apply to the equipment.
6.Except for the shaft-through portion and connector end.


Cables



Motor TypePower/Encoder Cable LengthPower/Encoder Cable Model Number
HC-AQ0135D or HC-AQ0135BD2 MeterMR-JRCBL2M-H
HC-AQ0135D or HC-AQ0135BD5 MeterMR-JRCBL5M-H
HC-AQ0135D or HC-AQ0135BD10 MeterMR-JRCBL10M-H
HC-AQ0235D or HC-AQ0235BD2 MeterMR-JRCBL2M-H
HC-AQ0235D or HC-AQ0235BD5 MeterMR-JRCBL5M-H
HC-AQ0235D or HC-AQ0235BD10 MeterMR-JRCBL10M-H
HC-AQ0335D or HC-AQ0335BD2 MeterMR-JRCBL2M-H
HC-AQ0335D or HC-AQ0335BD5 MeterMR-JRCBL5M-H
HC-AQ0335D or HC-AQ0335BD10 MeterMR-JRCBL10M-H


Related Motors
HC-KF13
HC-KF13B
HC-KF13K
HC-KF13D
HC-KF13BK
HC-KF13G1
HC-KF13G2
HC-MF13
HC-MF13B
HC-MF13BD-S15
HC-MF13BG1-UE
HC-MF13D
HC-MF13D-S2

HC-MF23
HC-MF23BK
HC-MF23BK-UE
HC-MF23G1-UE
HC-MF23-S15
HC-MF23-UE


INSTALLTION of Protection from oil and water

(1) Next, the servo motor is not waterproof (IP44). Do not subject the servo motor to oil and water.
Especially for the HC-MF / HC-KF / HC-AQ / HC-KFS / HC-MFS and HA-FF series, do not subject the
shaft-through portion to oil.

(2) When the gear box is mounted horizontally, the oil level in the gear box should always be lower than
the oil seal lip on the servo motor shaft. If it is higher than the oil seal lip, oil will enter the servo motor, leading to a fault. The HC-MF / HC-KF / HC-AQ / HC-MFS and HC-KFS series servo motor is not equipped with an oil seal and cannot be used with the gear box as described above. Oil should be shut off on the gear box side.

(3) When installing the servo motor horizontally, face the power cable and encoder cable downward. When installing the servo motor vertically or obliquely, provide a trap for the cable.

(4) Do not use the servo motor with its cable soaked in oil or water. (Figure on the right)

(5) When the servo motor is to be installed with the shaft end at top, provide measures so that it is not
exposed to oil and water entering from the machine side, gear box, etc.

(6) If the servo motor is exposed to oil such as coolant, the sealant, packing, cable and others may be
affected depending on the oil type.

(7) In the environment where the servo motor is exposed to oil mist, oil, water, grease and/or like, the
servo motor of the standard specifications may not be usable. Contact us.

(8) In the case of the servo motor with oil seal, the oil seal may sound during operation. It poses no
problems in function.
