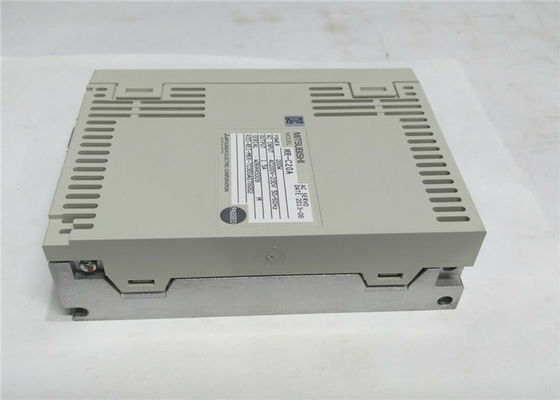

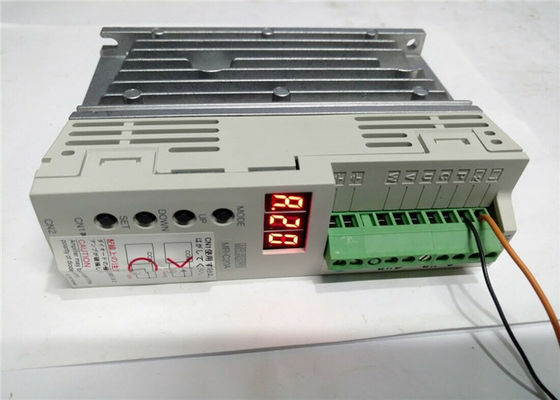

Mitsubishi Electric Industrial Drive MR-C20A MR-C Series AC Servo Amplifier Power 200W 1.5A

Description of MR-C20A

Brand: MITSUBISHI
Name: Servo driver
Model: MR-C20A
Type: MR-C type.
Symbol 10A for motor models: HC-PQ23.
Power supply voltage: single phase AC220V.
Drive: servo drive in the development of the premise of the frequency conversion technology,
Current loop in the drive,
Speed loop and position loop (frequency converter without the ring) have carried out a more precise control than the general frequency control technology and algorithm,
In function is also a lot stronger than the traditional servo,
The main point can be precise position control.
The control speed and position are controlled by the pulse sequence transmitted by the upper controller,
The internal algorithm of the driver and the faster and more accurate calculation and better performance of electronic devices to make it more superior to the inverter.

Description of Rotary Servo Motor

MR-J3 compatible motors provide 100/200/400VAC options available in up to 55kW and include seven motor types for easy selection based on required capacity or inertia requirements for the best amplifier and motor sizing possible.

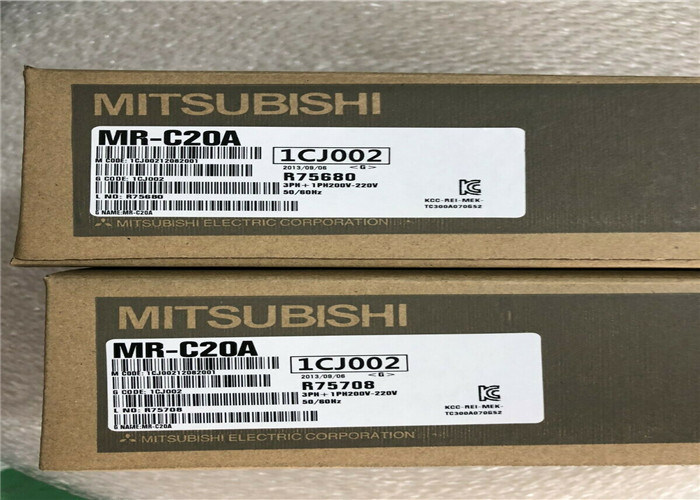

• All the Mitsubishi Parts are new and original with package.
• Warranty time: 1 year.
