OMRON R88M-G20030T-BS2 200 WATT 3000 R/MIN 230 VAC WITH ABSOLUTE ENCODER WITH BRAKE WITHOUT SEAL STRAIGHT KEY TAPPED

OMRON R88M-G20030T-BS2 200 WATT 3000 R/MIN 230 VAC WITH ABSOLUTE ENCODER WITH BRAKE WITHOUT SEAL STRAIGHT KEY TAPPED

  • OMRON R88M-G20030T-BS2 200 WATT 3000 R/MIN 230 VAC WITH ABSOLUTE ENCODER WITH BRAKE WITHOUT SEAL STRAIGHT KEY TAPPED
  • OMRON R88M-G20030T-BS2 200 WATT 3000 R/MIN 230 VAC WITH ABSOLUTE ENCODER WITH BRAKE WITHOUT SEAL STRAIGHT KEY TAPPED
  • OMRON R88M-G20030T-BS2 200 WATT 3000 R/MIN 230 VAC WITH ABSOLUTE ENCODER WITH BRAKE WITHOUT SEAL STRAIGHT KEY TAPPED
OMRON R88M-G20030T-BS2 200 WATT 3000 R/MIN 230 VAC WITH ABSOLUTE ENCODER WITH BRAKE WITHOUT SEAL STRAIGHT KEY TAPPED
Product Details:
Place of Origin: Japan
Brand Name: OMRON
Model Number: R88M-G20030T-BS2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1
Packaging Details: New in original boxRockwell Automation
Delivery Time: 5-8 work daysRockwell Automation
Payment Terms: T/T
Supply Ability: 1
Contact Now
Detailed Product Description
Condition: New Number Of Outputs: 1 Output
Voltage - Rated: 200VAC Warranty: 1 Year
Encoder Resolution: 13 Bit Power - Rated: 2kW
RPM: 3000 RPM Series:: S8VKC

OMRON R88M-G20030T-BS2 200 WATT 3000 R/MIN 230 VAC WITH ABSOLUTE ENCODER WITH BRAKE WITHOUT SEAL STRAIGHT

Product information OMRON R88M-G20030T-BS2 :

  • Manufacturer : Omron

  • Product No. :R88M-G20030T-BS2

  • ML2 and Analog/ Pulse servo drive models

  • High-response frequency of 1 kHZ

  • Auto-tuning for easy and quick start-up

  • Vibration suppression

  • Positioning, speed or torque control

  • Separate power and control power supply

  • Fast and accurate positioning

  • Incremental and absolute encoder

  • 12 month Northern Industrial Warrant

More information:


Model (R88M-) G05030H G10030H G20030H G40030H G75030H
Item Unit G05030T G10030T G20030T G40030T G75030T
Rated output t * 1 W 50 100 200 400 750
Rated torque * 1 N·m 0.16 0.32 0.64 1.3 2.4
Rated rotation speed r/min 3000
Max. momentary rotation speed r/min 5000 4500
Max. momentary torque * 1 N·m 0.45 0.90 1.78 3.67 7.05
Rated current * 1 A (rms) 1.1 1.1 1.6 2.6 4
Max. momentary current * 1 A (rms) 3.4 3.4 4.9 7.9 12.1
Rotor inertia kg·m2
(GD2/4)
2.5 × 10-6 5.1 × 10-6 1.4 × 10-5 2.6 × 10-5 8.7 × 10-5
Applicable load inertia --- 30 times the rotor inertia max. *2 20 times the
rotor inertia
max. *2
Torque constant * 1 N·m/A 0.14 0.19 0.41 0.51 0.64
Power rate * 1 kW/s 10.4 20.1 30.3 62.5 66
Mechanical time constant ms 1.56 1.1 0.71 0.52 0.45
Electrical time constant ms 0.7 0.79 2.6 3 4.6
Allowable radial load *3 N 68 68 245 245 392
Allowable thrust load *3 N 58 58 98 98 147
Weight Without brake kg Approx. 0.3 Approx. 0.5 Approx. 0.8 Approx. 1.2 Approx. 2.3
With brake kg Approx. 0.5 Approx. 0.7 Approx. 1.3 Approx. 1.7 Approx. 3.1
Radiation shield dimensions (material) 100 × 80 × t10 (AI) 130 × 120 × t12 (AI) 170 × 160 ×
t12 (AI)
Applicable Servo Drives (R88D-) GT01H GT01H GT02H GT04H GT08H
Brake
specifi-
cations
Brake inertia kg·m2
(GD2/4)
2 × 10-7 2 × 10-7 1.8 × 10-6 1.8 × 10-6 7.5 × 10-6
Excitation voltage *4 V 24 VDC ± 5%
Power consumption
(at 20 °C)
W 7 7 9 9 10
Current consumption
(at 20 °C)
A 0.3 0.3 0.36 0.36 0.42
Static friction torque N·m 0.29 min. 0.29 min. 1.27 min. 1.27 min. 2.45 min.
Attraction time *5 ms 35 max. 35 max. 50 max. 50 max. 70 max.
Release time *5 ms 20 max. 20 max. 15 max. 15 max. 20 max.
Backlash   ± 1 °
Allowable work per
braking
J 39.2 39.2 137 137 196
Allowable total work J 4.9 × 103 4.9 × 103 44.1 × 103 44.1 × 103 147 × 103
Allowable angular
acceleration
rad/s2 30,000 max.
(Speed of 2,800 r/min or more must not be changed in less than 10 ms)
Brake life --- 10,000,000 operations min.
Rating --- Continuous
Insulation grade --- Type F




Same series of R88 :

R88D-GN04H-ML2G-Series servo drive, 1~ 200 VAC, MECHATROLINK II integrated, 400 W

R88M-G40030H-BS2 G-Series/SmartStep 2 AC servo motor (cylinder type), 400 W, 200 VAC, 3000 rpm, 1.3 Nm, with brake

R88M-G40030H-BS2-DAC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, incremental, Brake, with circular connector

R88M-G40030T-BS2AC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, absolute, Brake



R88M-G40030T-BS2-DAC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, absolute, Brake, with circular connector


R88M-GP40030T-BS2-DAC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, absolute, Brake, with circular connector


Details:

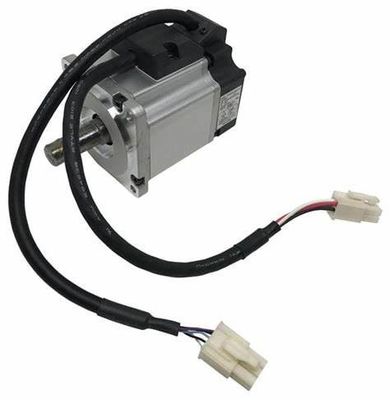

OMRON R88M-G20030T-BS2 200 WATT 3000 R/MIN 230 VAC WITH ABSOLUTE ENCODER WITH BRAKE WITHOUT SEAL STRAIGHT KEY TAPPED 0
