OMRON S8VK-S12024 SWITCH MODE 120 WATT 24 VDC 5 AMP 100-240 VAC PUSH IN

OMRON S8VK-S12024 SWITCH MODE 120 WATT 24 VDC 5 AMP 100-240 VAC PUSH IN

  • OMRON S8VK-S12024 SWITCH MODE 120 WATT 24 VDC 5 AMP 100-240 VAC PUSH IN
  • OMRON S8VK-S12024 SWITCH MODE 120 WATT 24 VDC 5 AMP 100-240 VAC PUSH IN
OMRON S8VK-S12024 SWITCH MODE 120 WATT 24 VDC 5 AMP 100-240 VAC PUSH IN
Product Details:
Place of Origin: Japan
Brand Name: OMRON
Model Number: S8VK-S12024
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1
Packaging Details: New in original boxRockwell Automation
Delivery Time: 5-8 work daysRockwell Automation
Payment Terms: T/T
Supply Ability: 1
Contact Now
Detailed Product Description
Condition: New Rated Torque: 1.3 Nm
Peak Torque: 3.65 Nm Warranty: 1 Year
Encoder Resolution: 13 Bit Power - Rated: 120W
RPM: 3000 RPM Voltage - Rated: 200VAC

OMRON S8VK-S12024 SWITCH MODE 120 WATT 24 VDC 5 AMP 100-240 VAC PUSH IN


Product information OMRON S8VK-S12024 :

  • Manufacturer : Omron

  • Product No. : S8VK-S12024

  • peration possible at ambient temperatures from -40 to 70°C.

  • Side-by-side mounting possible (up to 55°C).

  • Power Boost function at 120%.

  • 12 month Northern Industrial Warranty

More information:

1.The value is when both rated output voltage and rated output current are satisfied.

2. Do not use an inverter output for the product. Inverters with an output frequency of 50/60 Hz are available, but the rise in the internal temperature of the product may result in ignition or burning. If the input is connected to a UPS, do not connect a UPS with a square-wave output. Doing so will cause the internal temperature of the product to increase, possibly causing smoking or burning.

3. The value for the leakage current is determined according to the Electrical Appliances and Material Safety Act.

4. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than 28 V min of the voltage adjustment range. When adjusting the output voltage, confirm the actual output voltage from the product and be sure that the load is not damaged.

5. A characteristic when the ambient operating temperature of 25°C.


Power rating 120 W
Output voltage 24 VDC
Efficiency 90% typ. (at 115 VAC input)
92% typ. (at 230 VAC input)
Input Rated input voltage 100 to 240 VAC
Allowable input voltage variable range 85 to 264 VAC (Single-phase)/265 to 300 VAC (1 s)
90 to 350 VDC
Frequency 50/60Hz (47 to 63 Hz)
Rated input current 1.2 A typ. (at 115 VAC input)
0.63 A typ. (at 230 VAC input)
Power factor 0.9 min.
Leakage current 0.5 mA max. (at 115 VAC input)
1 mA max. (at 230 VAC input)
Inrush current (cold start at 25 ℃) 16 A typ. (at 115 VAC input)
32 A typ. (at 230 VAC input)
Output Rated output current 5 A
Output voltage variable range 21.6 to 28 V With V.ADJ
Rated output power 120 W
Maximum peak current 6 A
Ripple 110 mV(p-p) max.
Static input variation influence 0.5% max.
Static load variation influence 1.5% max.
Ambient temperature variation influence 0.05%/℃ max.
Start up time 1000 ms max. (at 115 VAC input)
1000 ms max. (at 230 VAC input)
Hold time 45 ms typ. (at 115 VAC input)
45 ms typ. (at 230 VAC input)



Related Products of S8VK-S12024:

S8VK-S24024:  AC/DC CONVERTER 24V 240W

S8VK-S48024:  AC/DC CONVERTER 24V 480W

S8VK-T48024:  PS 3-PHSE 480W24

S8VK-R10   : REDUNDANCY MODULE FOR OMRON S8VK

S8VK-T12024 : PS 3-PHSE 120W24

S8VK-G48048 : AC/DC CONVERTER 48V 480W



Same series of R88 :

R88D-GN04H-ML2G-Series servo drive, 1~ 200 VAC, MECHATROLINK II integrated, 400 W

R88M-G40030H-BS2 G-Series/SmartStep 2 AC servo motor (cylinder type), 400 W, 200 VAC, 3000 rpm, 1.3 Nm, with brake

R88M-G40030H-BS2-DAC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, incremental, Brake, with circular connector

R88M-G40030T-BS2AC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, absolute, Brake



R88M-G40030T-BS2-DAC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, absolute, Brake, with circular connector


R88M-GP40030T-BS2-DAC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, absolute, Brake, with circular connector


Details:

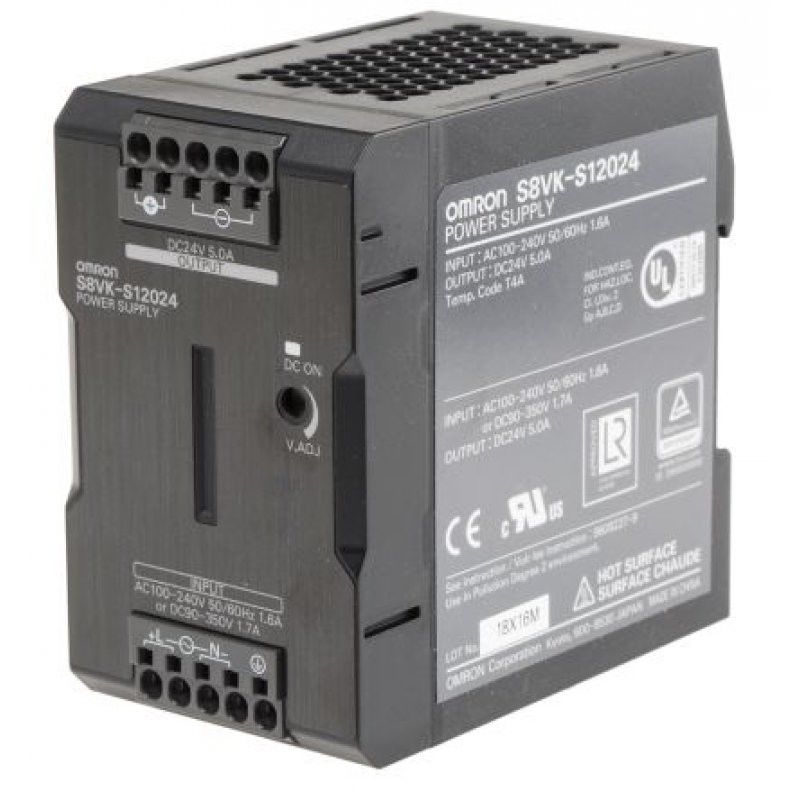

OMRON S8VK-S12024 SWITCH MODE 120 WATT 24 VDC 5 AMP 100-240 VAC PUSH IN 0

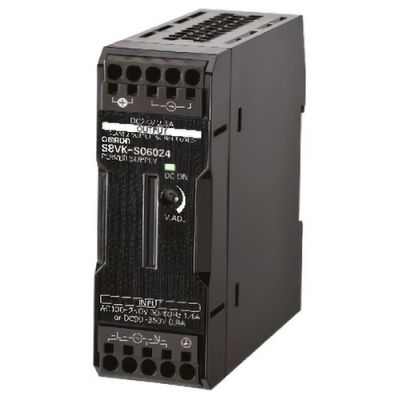

OMRON S8VK-S12024 SWITCH MODE 120 WATT 24 VDC 5 AMP 100-240 VAC PUSH IN 1
